Using the AVAtrix with a Multi-Zone Audio Amplifier
Application Example 1: Tracking Mode

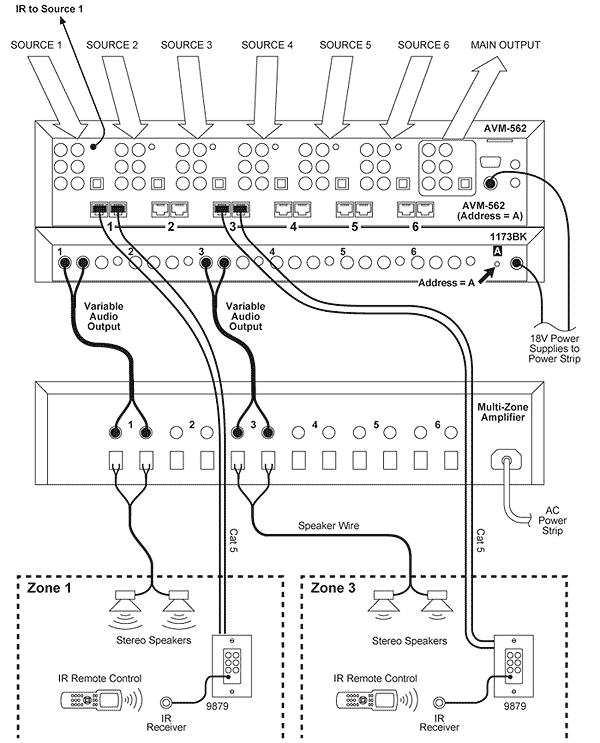

Below is a diagram showing one popular application for the AVAtrix with 1173BK Multi-Zone Audio Router with Volume Control. This configuration shows "Tracking Mode", used with zone amplifiers such as the Model AMP-1235. The 1173BK audio output #1 below tracks with the AVAtrix Cat 5 output #1 so that the audio always matches the video at the zone. The 1173BK provides easy, seamless volume control and smooth ramping between preset levels.
Below is a diagram showing one popular application for the AVAtrix with 1173BK Multi-Zone Audio Router with Volume Control. This configuration shows "Tracking Mode", used with zone amplifiers such as the Model AMP-1235. The 1173BK audio output #1 below tracks with the AVAtrix Cat 5 output #1 so that the audio always matches the video at the zone. The 1173BK provides easy, seamless volume control and smooth ramping between preset levels.
Other Applications Application 2: Using the AVAtrix with an integrated audio system (Source Mode)  Application 3: AVAtrix multi-zone audio using an AVR for each zone (Tracking Mode)  Application 4: AVAtrix multi-zone audio using digital audio to AVRs (Tracking Mode) |  | |
