AVAtrix Multi-Zone Audio with an AVR for Each Zone
Application Example 3: Tracking Mode

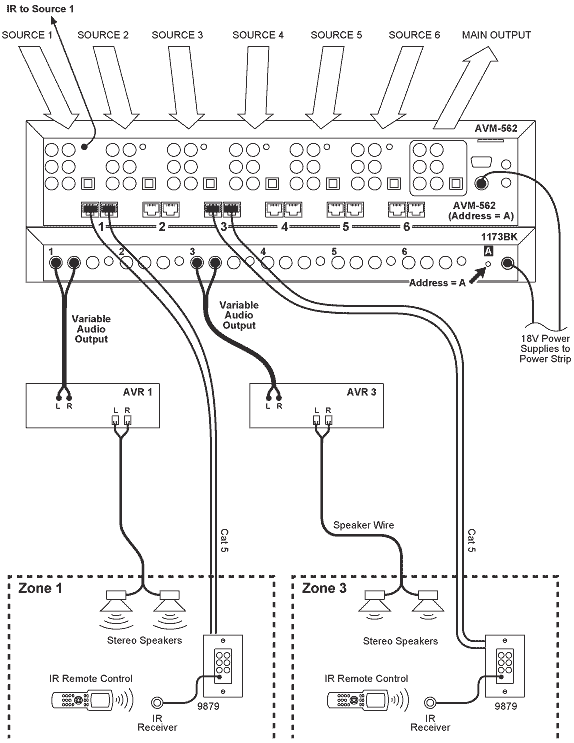

Below is a diagram showing one application for the AVAtrix with 1173BK Multi-Zone Audio Router with Volume Control. This configuration shows "Tracking Mode", used with audio distribution systems having dedicated amplifiers (or AVR) for each room’s speakers. The 1173BK audio output #1 below tracks with the AVAtrix Cat 5 output #1 so that the audio always matches the video at the zone. The 1173BK adjusts volume before the amplifier inputs.
Below is a diagram showing one application for the AVAtrix with 1173BK Multi-Zone Audio Router with Volume Control. This configuration shows "Tracking Mode", used with audio distribution systems having dedicated amplifiers (or AVR) for each room’s speakers. The 1173BK audio output #1 below tracks with the AVAtrix Cat 5 output #1 so that the audio always matches the video at the zone. The 1173BK adjusts volume before the amplifier inputs.
Other Applications Application 1: Using the AVAtrix with a multi-zone amplifier (Tracking Mode)  Application 2: Using the AVAtrix with an integrated audio system (Source Mode)  Application 4: AVAtrix multi-zone audio using digital audio to AVRs (Tracking Mode) |  | |
