Signal Distribution Application 1 | |

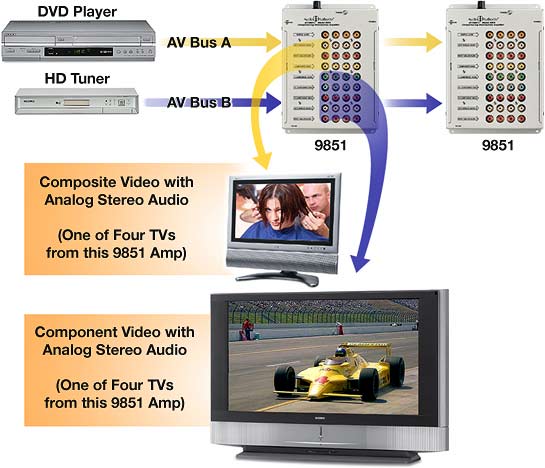

Two Distinct AV SourcesThe 9851 AV Distribution Amplifier allows AV signal from two separate sources to be distributed over one distribution network. In effect, you get two DAs in one! One source outputs composite video, the other YPbPr component video, and each has its own analog stereo audio bus, providing audio to each TV. Of course, digital audio is also available at any point if you want to demonstrate a home theater speaker package anywhere along the distribution network. This diagram only shows two 9851 amps, but, depending on bus architecture, a very large distribution network is possible. | |
 | |
