Demonstrating Speaker Packages

This approach to demonstrating home theater helps simplify the choices facing consumers. The configuration shown here has a capacity of eight 5.1 channel speaker packages including front, center, surround, and sub channels. It's capacity can be expanded by adding switch modules.

This switching system is designed to work with a dedicated receiver and AV source, but with the addition of more switching equipment, four or more receivers and/or sources could be presented as well.

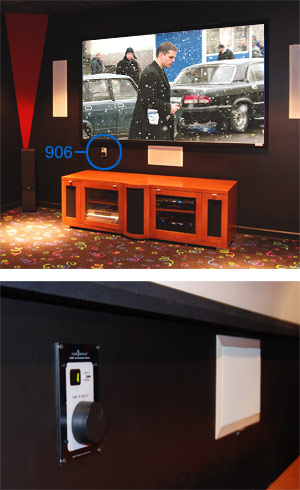

The 906 control panel is well suited for this application, but other control panels or product selector buttons could be used.
