Mobile A/V Demo Application 1 | |

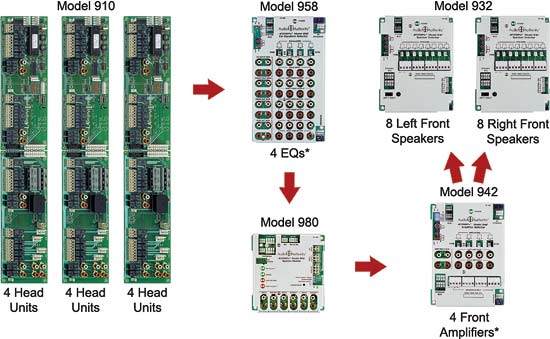

| Switching System for a Small Display The configuration of switch modules shown below has the capacity to demonstrate 12 head units, up to three signal processors, three amplifiers, and eight stereo speaker pairs. A small system is usually best operated by product selector buttons next to each product, but a control panel could be added if desired. Like any AccessEZ system, adding more products in a product group or adding new product groups (such as rear amps and speakers) is as easy as adding switch modules. |
 * The switch modules for processors and amplifiers each have four product positions, but if bypass functionality is desired, the 4th position must be used for the bypass position. |
