sonaflex

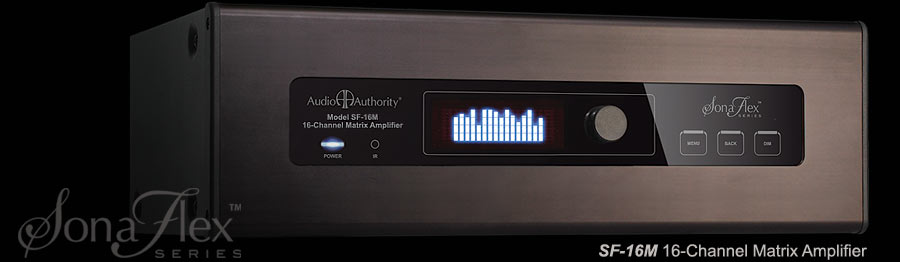

The SF-16M is one system that serves many applications...hotels, restaurants, bars, and homes.

Convenient FlexPort wall plates enable local source override for iPods, microphones, or mixers.

Custom designed toroidal transformers power the SF-16M for unmatched stability and performance.

Any third party system can control the SF-16M using Ethernet, serial, or IR.

SonaFlex and HLX are the perfect pair to bring high fidelity audio and video to sports bars, night clubs, and restaurants.

UPDATE:
The SF-16M is now shipping, so place your pre-order right away. FlexPort modules will be available soon.

One System, Many Applications
SonaFlex is about two things: sound quality and flexibility. Whether you install audio systems in commercial facilities or in homes, the SF-16M has the features and capabilities to handle just about any application you may encounter. Its flexibility and musical power give end users so much more than traditional audio systems, while giving installers a streamlined installation process.

Flexible Input Options
Most pro and consumer audio sources can be used with the SF-16M via its unique FlexPort™ audio inputs. Up to four FlexPort audio modules can be connected, via Cat-5, to each SF-16M. Module options include balanced line/mic, XLR, digital coax/optical, and analog RCA inputs, accommodating anything from pro audio mixers to Apple TV media players. FlexPort modules include an illuminated button that may be used to trigger audio override at all pre-selected SF-16M outputs.

Scalable Outputs
Any amplified output of the SF-16M can be assigned as mono or stereo, allowing for 16 mono, 8 stereo, or a mixture of both mono and stereo speaker locations per chassis. The SF-16M can split mono inputs to stereo outputs and combine stereo inputs to mono outputs. Up to four SF-16M units can be linked together to form a powerful 32 input x 64 output system, with shared source signals and optionally shared FlexPort signals.

Signal Processing Tools
The SF-16M provides a rich palette of Digital Signal Processing (DSP) tools that allow the installer to custom-tune for the speakers in every sonic environment. For basic installations, use DSP such as bass, treble, balance and loudness. For more advanced or commercial applications, use hi/low pass filters and 7-bands of parametric equalization per output.

Pass-Thru Mode
In situations where all you need is a powerful amp that works with the audio matrix you use today, the SF-16M excels in this configuration as well, providing 16 RCA inputs and DB-25 source audio loop outputs for system expansion. In addition, the SF-16M’s DB-25 input allows for quick connection to Audio Authority audio matrix switchers such as HLX and ADX. The built-in FlexPort audio inputs can still be used in pass-thru mode to override any on-board RCA audio input, enabling functions such as local source selection, paging/doorbell override, and room combining/segmentation.

Why Your Clients Will Love SonaFlex

Local source selection: Popular audio sources such as iPods, appleTVs and BluRay players can be located near the listener and connected via Cat-5 to the SF-16M's FlexPort audio inputs. The local audio source can take over default audio with the push of a button, and then switch back to the default audio after completion. This feature is ideal for restaurants and clubs with live music where a user needs to override background music with audio from a mixer.
Sound Scenes: A Sound Scene is a system-wide snap-shot of all volume and source settings. Scenes allow the end-user to easily recall previously captured system settings. It is a perfect way to set the mood for parties, restaurant ambience and other commonly used system settings that need to be recalled with a single button press. Up to 10 Sound Scenes can be stored and recalled per SF-16M. For installations with multiple SF-16Ms linked together, system-wide Sound Scenes can be stored and recalled across all units.
Output Grouping: Allows multiple outputs to be grouped together to share volume ramping, muting, source selection and more. Groups are ideal for making large areas a single audio zone or for grouping outputs with hi-pass and low-pass filters (sub/sat combinations) so that they respond together as one zone. Up to 10 groups can be stored per SF-16M.

Easy Setup
The SF-16M’s front panel VFD display allows for access to the most common settings required in a typical install. For added security, the front panel can be locked out, preventing tampering with system settings. Advanced setup tasks (input/output naming, group assignments, sound scene setup) are achieved using the SF-16M’s free PC configuration software.

Product Focus Sheet

(853.86 KiB)
