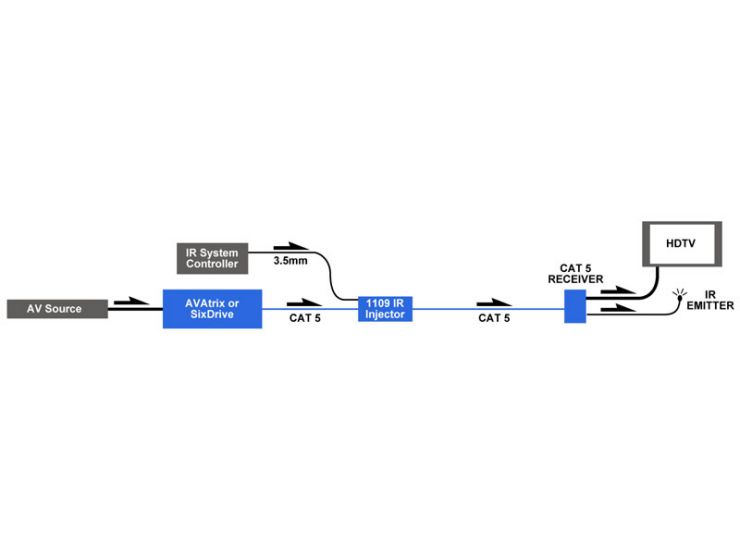

This product is designed to allow any wired IR device to send signals to or receive signals from IR devices plugged into the Wallplate/receivers used with an AVAtrix. Typically, the 1109 would be used to send IR from a control device near the AVAtrix out to multiple TVs.

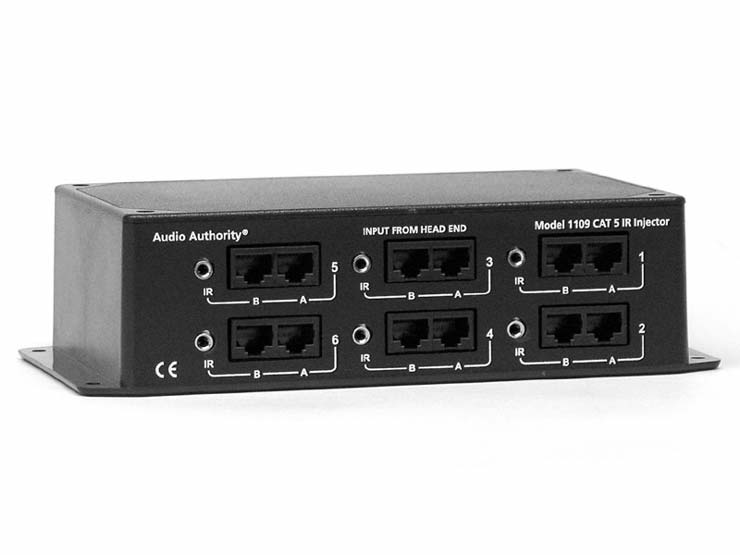

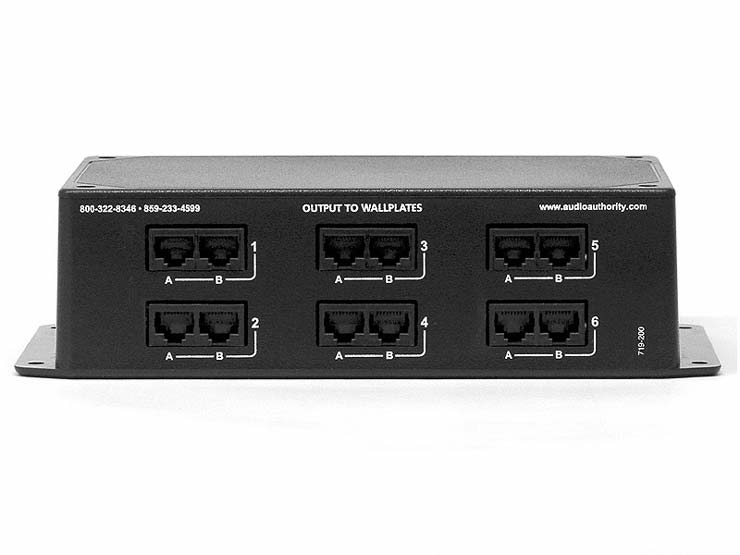

When installed in-line between the AVAtrix and its six Wallplates, the IR jack on each Wallplate is hard-wired to a corresponding jack on the Model 1109.

These jacks are isolated from all other system wiring and can therefore be used for any kind of low speed signal suited for Category 5 cable conductors. The Model 1109 is compatible with any Audio Authority AV Cat 5 Wallplate, including Models 9878, 9879 and 9880. Each Wallplate IR pathway operates independently, so one pathway could be set up for in-coming IR signals and another pathway in the same system could be set up for out-going IR signals.

• Injects IR signals into, or extracts IR signals from, Cat 5 Receiver bus
• Passive device, requires no power source
• Works with Cat 5 outputs from AVAtrix™ and SixDrive™ (Models AVX-561, AVX-661, 1170, 1171, and 1176)
• Works with any Audio Authority Cat 5 receiver including Models 9878, 9879, and 9880
• Each Wallplate/Receiver IR pathway operates independently
