Overview

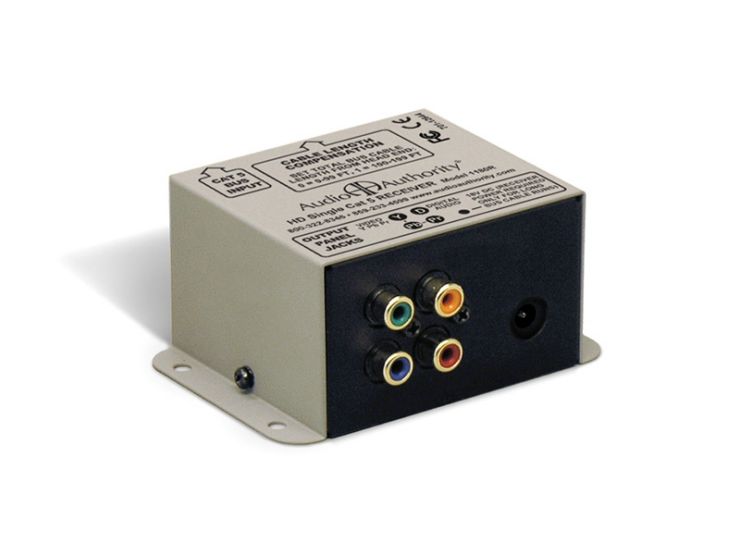

The 1180R is a high performance Cat 5 Receiver designed for use with 1180T and 1180TD Cat 5 Transmitters. Utilizing Audio Authority's proprietary AGE (Active Gain Equalization) technology, image quality is maintained over long distances. Passive baluns can't compete with active balanced line technology like that found in the 1180RD Cat 5 extender, which offers higher bandwidth, excellent impedance matching, and superior noise rejection.

• Perfect HD picture up to 1,000 feet from the source via AGE technology
• High bandwidth for 1080p component video, and coaxial, multi-channel, digital surround audio signals
• Included in SCP-11 system, or available for individual purchase

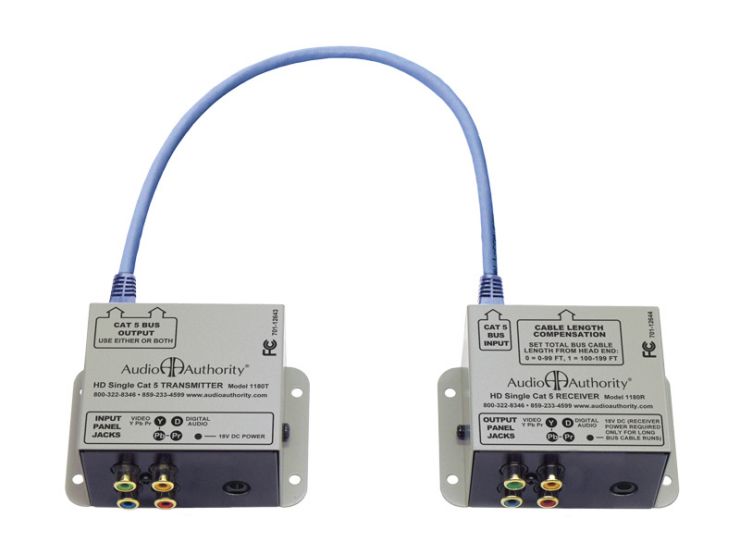

• 1180R receiver works with box style 1180T transmitter, or wallplate style 1180TD transmitter
• Made in the USA

Features

• Component video and digital coaxial audio pathways
• Supports HD video up to 1080p
• Powered from Cat 5 Transmitter over Cat 5 up to 700 feet away
• Balanced line infrastructure rejects noise
• Made in the USA

• Component video (YPbPr) - 1/1
• Digital audio (coaxial) - 1/1

Specifications

Downloads

• Product Focus Sheet: (PDF coming soon)
• User Manual: SCP-11D (.pdf)

Frequently Asked Questions

Q: Can I use a single Cat 5 receiver (1180R or 1180RD) with the AVAtrix?

A: Yes, the 1180R or 1180RD can be used in place of the standard AVAtrix Cat 5 receivers, with the use of Model 1110 two-to-one Cat 5 Adapter. The analog audio pathway is not available at the 1180 Series reciever, but a separate IR breakout jack provides a way to wire an IR receiver at the zone.
