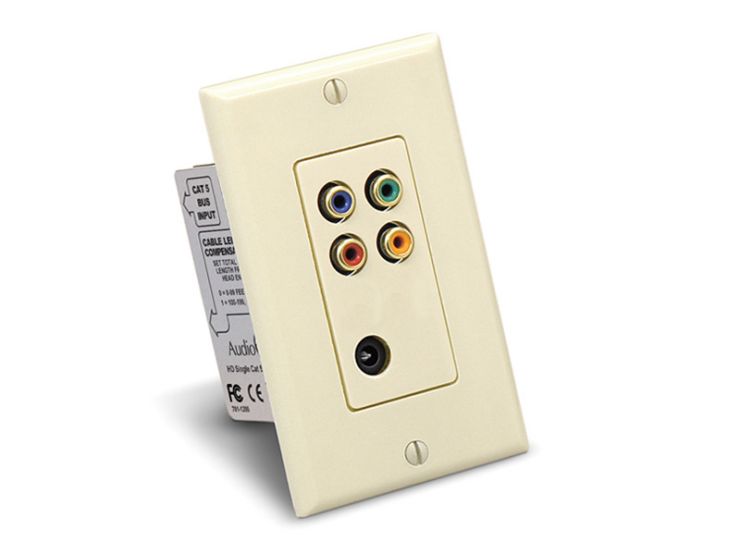

1180RD Cat 5 Receiver
Single Cat 5 Component / Digital Audio Wallplate Receiver
Model 1180RD

[Buy Online]
$150.00 USD
Key Features:
  • Single Cat 5 wallplate receiver
  • Decora style inserts in three colors
  • Component video, digital audio
  • Compatible with all Audio Authority single Cat 5 systems
  • Compatible with HLXdual Cat 5 using adapter
  • USA designed and assembled

Categories: Extender Component, Extender Component Receiver, HLX, AVAtrix Receiver, Extender, AVAtrix

Log in to see dealer pricing


Feedback


[1:2 example system]
1:2 example system

Overview

The 1180RD is a high performance Cat 5 Receiver designed for use with 1180T and 1180TD Cat 5Transmitters. Utilizing Audio Authority's proprietary AGE (Active Gain Equalization) technology, image quality is maintained over long distances. Passive baluns can't compete with active balanced line technology like that found in the 1180RD Cat 5 extender, which offers higher bandwidth, excellent impedance matching, and superior noise rejection.

  • Perfect HD picture up to 1,000 feet from the source via AGE technology
  • High bandwidth for 1080p component video, and coaxial, multi-channel, digital surround audio signals
  • Included in SCP-11D system, or available for individual purchase
  • 1180RD receiver works with box style 1180T transmitter, or wallplate style 1180TD transmitter
  • HLX compatible using the 1110 dual Cat 5 to single Cat 5 adapter

Features

Key Features
  • Component video and digital (coax) audio pathways
  • Supports HD video up to 1080p
  • Powered from Cat 5 Transmitter via Cat 5, range is 700 ft.
  • Maximum range is 1,000 ft. when powered at both ends
  • Balanced line infrastructure rejects noise
  • Wallplate style Receiver includes three insert colors
Inputs/Outputs
  • Input: Single Cat 5/6 UTP
  • Video output: Component video (YPbPr) - 1/1
  • Audio output: Digital (coaxial) - 1/1

Specifications

Video Parameters
  • Video Formats: 480i/p, 576i/p, 720p, 1080i/p
  • Input/Output Impedance: 75 ohms
  • Input Ground Isolation: Yes
  • Gain: 1
  • Gain Accuracy: 3%
  • 3dB Bandwidth: 120MHz
  • Input Coupling: AC
  • S/N Ratio: 35dB
  • Max Gain: 40dB equalization
Audio Parameters
  • Input Impedance: 75 ohms
  • Min Load Impedance: 75 ohms
  • Multi-channel Digital: Yes
  • Frequency Response: Full-range digital
  • S/N Ratio: N/A
  • THD+Noise: N/A
  • Crosstalk: N/A
Miscellaneous
  • Connector Types: RCA (YPbPr, digital coaxial audio)
  • Dimensions (HxWxD, inches):1.75 x 3.75 x 3
  • Shipping Weight: 0.45 lbs.
  • Agency Approvals: FCC
  • DC Input Connector: 5.5 x 2.1mm
  • DC Input Voltage/Polarity: 18V/Center Positive
  • Max DC Input Current: 400mA
  • Heat Output: N/A
In the Box
  • Decora-style inserts: white, ivory, almond
  • User Manual

Applications

Coming Soon

Frequently Asked Questions

Q: How many Cat 5 cables are required to use the 1180T?
A: Only a single Cat 5e or Cat 6 cable is required to use the 1180T.

Q: The Cat 5 Receiver wallplate has a power jack - is power required?
A: No. The receiver is phantom-powered from the transmitter for distances less than 700 feet. If extending beyond 700 feet, a receiver-end power supply may be required.

Q: Can I use a single Cat 5 receiver (1180R or 1180RD) with the AVAtrix?

A: Yes, the 1180R or 1180RD can be used in place of the standard AVAtrix Cat 5 receivers, with the use of Model 1110 two-to-one Cat 5 Adapter. The analog audio pathway is not available at the 1180 Series reciever, but a separate IR breakout jack provides a way to wire an IR receiver at the zone.
