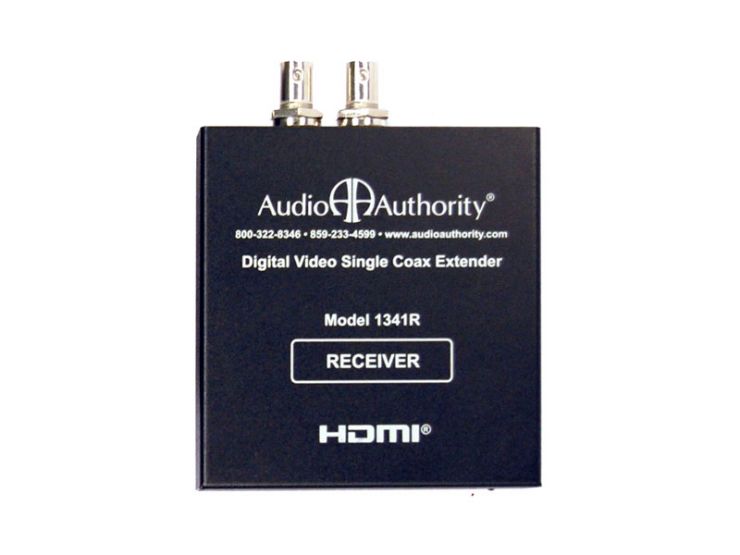

[Image for 1341R]
HDMI over Coax Receiver
1:1 HDMI over Single Coax Receiver
Model 1341R - Discontinued

$280.00 USD
Key Features:
  • Receives HDMI signals over a single RG-6 coaxial cable
  • Includes bus output to feed another 1341R receiver
  • Supports 720p, 1080i, 1080p and multiple PC resolutions
  • Supports Dolby Digital Plus, Dolby® Digital TrueHD, DTS-HD: Master Audio, and LPCM
  • HDMI compliant, HDCP version 1.1 compliant

Categories: Discontinued

Log in to see dealer pricing



The 1341R enables long distance extension of HDMI signals over a singe RG-6 coaxial cable. Also available is the HXE-11 kit, including one 1341T transmitter and one 1341R receiver. The 1341R also features a loop-out connector, allowing a a second run of coax to feed another receiver along a continuous chain. Capable of distributing today's latest video and audio formats, including 1080p video with 36-bit deep color and lossless audio, the system is fully HDMI compliant.

1341R applications


Key Features

  • Receives HDMI over RG-6 coaxial cable with locking BNC terminations
  • Supports deep color: 12 bits per TMDS channel (36 bit, sum of all channels)
  • Supports 720p, 1080i, 1080p and multiple PC resolutions
  • Supports Dolby Digital Plus, Dolby® Digital TrueHD, DTS-HD: Master Audio, and LPCM
  • HDMI compliant, HDCP version 1.1 compliant
  • Gennum ActiveConnect chipsets

Video/Audio Inputs/Outputs:

  • HDMI: 0/1
  • BNC: 1/0


Video Parameters
  • Video Formats: 720p, 1080i/p
  • Color Processing: 36 bit Deep Color (12 bits per TMDS color channel)
Audio Parameters
  • Audio Processing: Dolby, DTS 32-192fs sample, LPCM 7.1 channel
  • Multi-channel Digital: Yes
  • Connector Types (Tx Input, Rx Output): HDMI Type A
  • Connector Types (Tx Output, Rx Input): (1) BNC
  • Dimensions (HxWxD, inches): 1.1 x 3.625 x 3.875
  • Product Weight: .6 lbs
  • Shipping Weight: 1.6 lbs
  • Data Rate: 2.25Gbps (single link)
  • TMDS Clock Speed: 225MHz
  • Agency Approvals: FCC, CE, RoHS
In the Box
  • Power Supply (Model TBD)
  • Termination resistor plug (BNC)
  • User Manual
  • Mounting Flanges



Frequently Asked Questions

Q: Does the HXE-11 work with any RG-6 cable?
The HXE-11 must be used with high quality RG-6 because of the enormous bandwidth required for HD video formats. Our tests yielded excellent results using Commscope F660BV Brightwire cable at 200 feet. Use equivalent or better quality cable for all HXE-11 applications, and specified BNC terminations.

Q: Does the HXE-11 work with RG-59 cable?
The HXE-11 kit is specified for use with RG-6 cable. RG-59 is not recommended because the bandwidth is typically too low for use with the HXE-11. If the picture does resolve at a given distance over RG-59, the picture quality is the same as RG-6.

Q: What type of BNC terminations should I use?
Good compression fittings provide the consistent impedance characteristics required for HXE-11. Do not use F to BNC adapters -- they introduce too much resistance. Soldered connectors are not recommended.
