Audio Authority now offers an extensive line of compliant distribution amplifiers, repeaters and switchers for HDMI and DVI signals. All units are FCC, and CE approved, and all power supplies are UL, CE and CSA approved. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

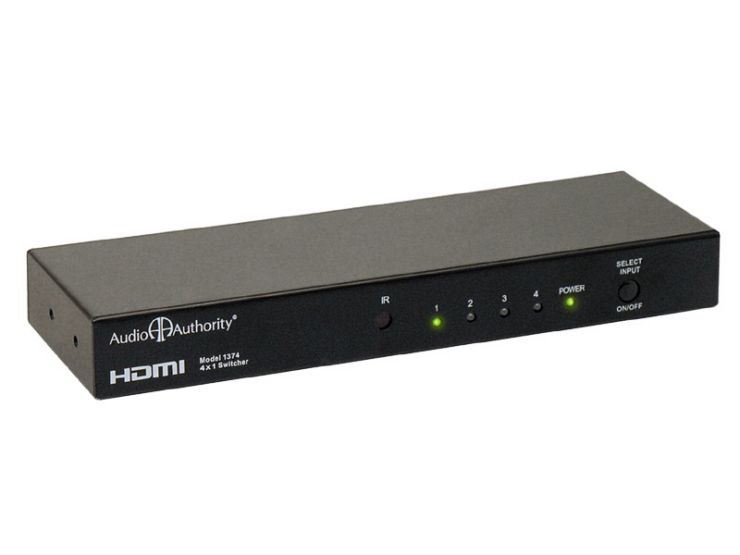

The 1374 HDMI 4x1 switcher allows four HDMI sources to be connected to a display.

Audio Authority HDMI Switchers are optimized for custom system integration, featuring quick switching times (2-4 seconds) discrete input selection, RS-232, wired IR, and optical IR control, and field-tested logic.

• Highly optimized for fast switching
• Supports HDTV resolutions up to 1080p and PC resolutions up to 1920 x 1200 @ 60Hz (WUXGA)
• 4 inputs, 1 output (HDMI)
• Front panel selection button with LED indicators

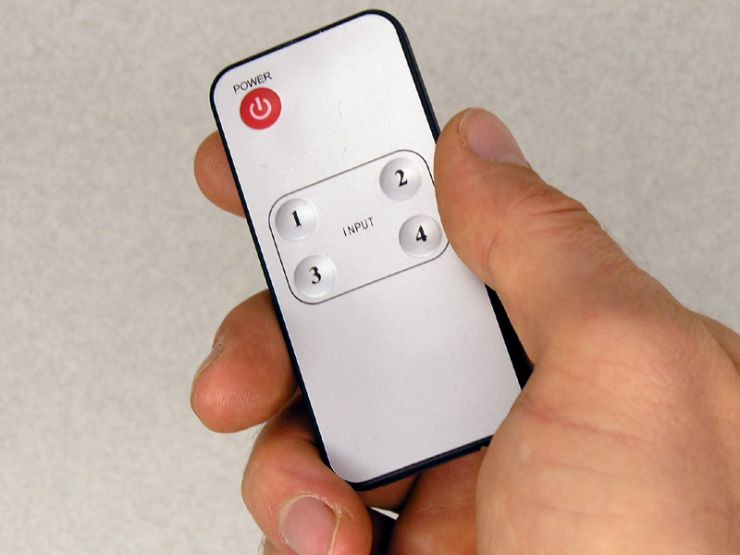

• IR remote control
• RS-232 control port
• Passes HDMI Audio
• HDCP compliant, RoHS compliant
• HDMI Certified
• All metal construction

Product Dimensions

• 1 x 11.75 x 3 (HxWxD, inches)

Downloads

• 1374 user manual (PDF file)
