OverviewAudio Authority offers the most practical PC to TV converters available, with vital features such as overscan and scaling, eliminating the need for complex third party video software on the source computer. This VGA to HDMI converter is designed to convert a wide range of computer video resolutions to HDTV resolutions compatible with television HDMI inputs. The 1366 output video and audio signals are fully HDCP and HDMI compliant. Other convenient features include a separate digital audio input and output (Toslink™), and stereo analog audio input and output jacks (3.5mm).
Key Features- Automatically detects the resolution of the connected display
- Overscan, aspect ratio, and other scaling adjustments
- Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 specifications
- OSD user interface (On Screen Display)
- Contrast, brightness, hue, saturation, sharpness & RGB level adjustments
- Separate digital and analog audio inputs and outputs
- HDMI digital audio embedded
Video Signals: - Accepts VGA or RGBHV input signals at resolutions from 640x480 to 1920x1200
- Accepts input signal refresh rates from 60Hz to 85Hz
- Outputs HDTV video resolutions from 480i to 1080p @ 60Hz
- Outputs computer resolutions up to WUXGA (see user manual for list)
For best performance, use high-grade HDMI output cables.
SpecificationsVideo Parameters
- PC RGB Video Input: 1x via HD-15 connector
- HDMI V1.2 Output: 1x via type A connector
- Standards Compliance: HDMI v1.2, HDCP 1.1, DVI 1.0
- PC/RGBHV Input Resolutions: VGA through WUXGA
- HDMI Output Resolutions: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
- Video Adjustments: Contrast, brightness, hue, sharpness, saturation, RGB levels, aspect ratio
Miscelaneous
- Size (H-W-D): 25x102x145mm (1x4x5.7”)
- Weight (Net): 340g (12oz)
- Warranty: Limited 1 year replacement warranty
- Environmental: Operating Temperature
- 0° to +50°C (+32° to +122°F)
- Operating Humidity: 10% to 90%, non-condensing
- Storage Temperature: -10° to +60° C (+14° to +140° F)
- Storage Humidity: 10% to 90%, non-condensing
- Power Requirement: External Power Supply 5VDC@2A
- Regulatory Approvals: Converter Unit: FCC, CE, RoHS
- Power Supply: UL, CUL, CE, PSE, GS, RoHS
| | Audio Parameters
- Analog Stereo Input: 3.5mm Mini-Stereo Connector
- Analog Stereo Output: 3.5mm Mini-Stereo Connector
- Digital Input: SPDIF via Toslink Connector
- Digital Output: SPDIF via Toslink Connector
- Analog Stereo Input Level: 2Vrms max @ 47KΩ
- Analog Stereo Output Level: Unity @ 47KΩ
- Toslink Input/Output Level: Standard Toslink level
- Analog Stereo Bandwidth: 20Hz to 20 KHz
In the Box
- 1385 Scaler
- User manual
- AC power adapter
|
Supported ResolutionsINPUT
PC (RGB)
Resolutions | | VGA
SVGA
XGA
SXGA
UXGA
WXGA
WSXGA
WUXGA | | 640x480 @ 60, 72, 75, 85Hz
800x600 @ 56, 60, 72, 75, 85Hz
1024x768 @ 60, 70, 75, 85Hz
1280x1024 @ 60, 75, 85Hz
1600x1200 @ 60Hz
1280x800 @ 60Hz
1680x1050 @ 60Hz
1920x1200 @ 60Hz | | INPUT
PC (RBG) or YUV*
HDTV Resolutions | | 480i
576i
480p
576p
720p
1080i
1080p | | 720x480 @ 60Hz
720x576 @ 50Hz
720x480 @ 60Hz
720x576 @ 50Hz
1280x720p @ 50, 60Hz
1920x1080 (i) @ 50, 60Hz
1920x1080 (p) @ 50, 60Hz | | OUTPUT
HDMI PC Resolutions | | VGA
SVGA
XGA
SXGA
SXGA+
UXGA
WXGA
WXGA+
WSXGA
WUXGA | | 640x480 @ 60Hz
800x600 @ 60Hz
1024x768 @ 60Hz
1280x1024 @ 60Hz
1400x1050@ 60Hz
1600x1200 @ 60Hz
1280x800 @ 60Hz
1440x900@ 60Hz
1680x1050 @ 60Hz
1920x1200 @ 60Hz | | OUTPUT
HDMI HDTV Resolutions | | 480p
576p
720p
1080i
1080p | | 720x480 @ 60Hz
720x576 @ 50Hz
1280x720 @ 50, 60Hz
1920x1080 (i) @ 50, 60Hz
1920x1080 (p) @ 50, 60Hz | | OUTPUT
HDMI SDTV Resolutions | | 480i
576i | | 720x480 @ 60Hz
720x576 @ 50Hz | |
*Requires YUV to HD-15 adapter.Frequently Asked Questions
Q: Does the 1385 work with any computer?
A: Yes, any computer with a VGA (analog video) output can be used as a source. The 1385 accepts a very wide variety of input resolutions and refresh rates, so no video output adjustments are needed, and no special software needs to be installed. Q: I have installed the 1366, but I see no picture. How do I proceed?
A: The unit may need to be reset to the factory default resolution. Hold Menu and (–) keys for 5 seconds to reset to 480p @ 60Hz. Proceed with adjustments using the On Screen Display interface. |

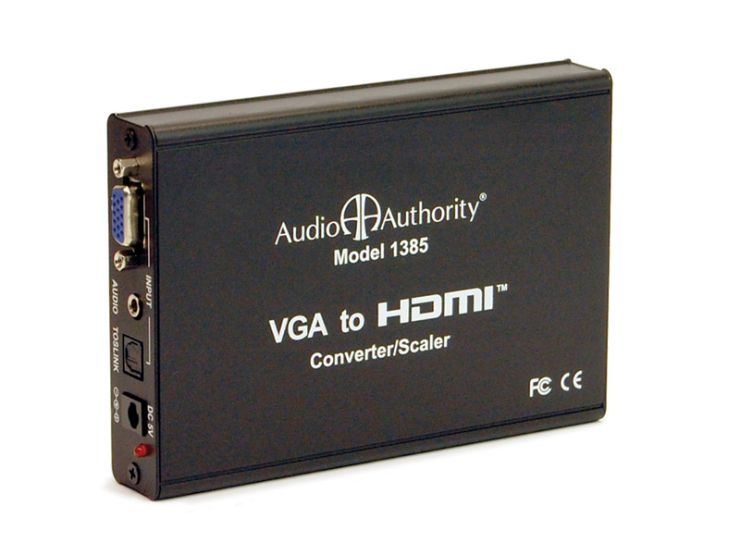

![[Image for 1385]](/images/products/1385_scaled_740.jpg)
![[Buy Online]](/images/buttons/buyonline.jpg "Add this product to your cart"){kind=small}

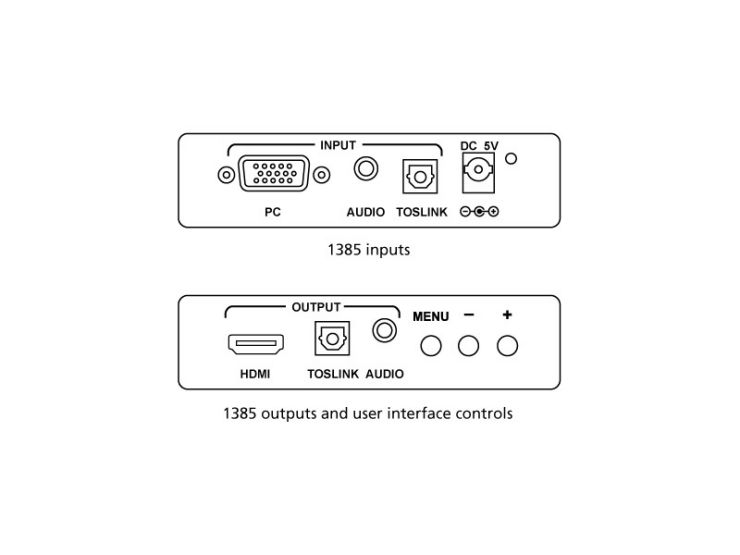

![[Inputs/outputs]](/images/products/1385inout_scaled_740.jpg)

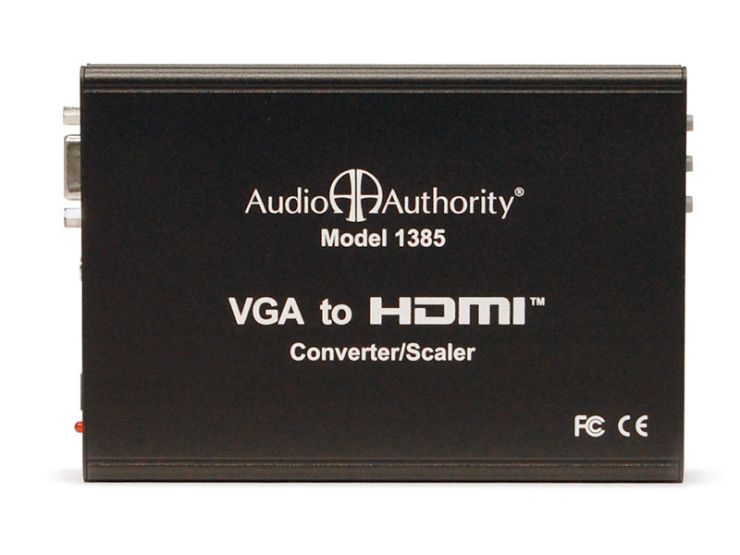

![[Front view]](/images/products/1385front_scaled_740.jpg)
