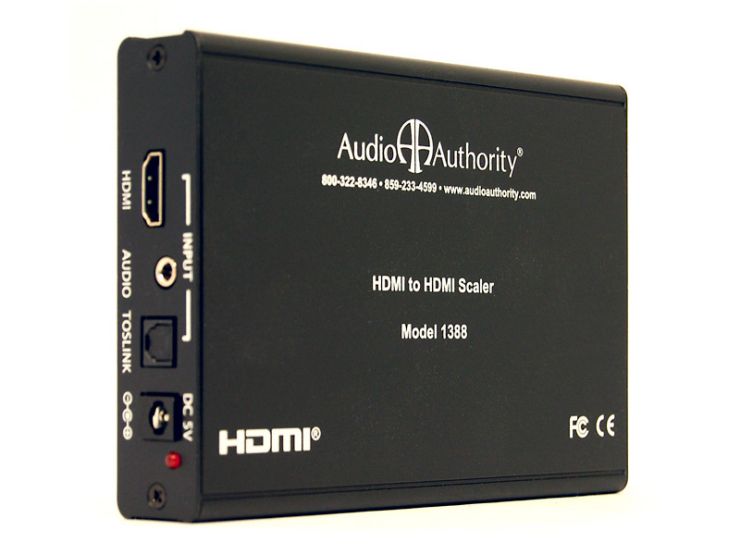

[Image for 1388]
HDMI to HDMI scaler
HDMI to HDMI Scaler
Model 1388

[]
$349.00 USD
Key Features:
  • Outputs resolutions up to 1080p and WUXGA
  • Accepts 1080p, 1080i, 720p, 480i or 576i input
  • Adjust contrast, brightness, hue, saturation, sharpness & RGB levels
  • Discrete digital and analog audio input and output

Categories: Video Converter, HDMI, Converters, HD-IP

Log in to see dealer pricing

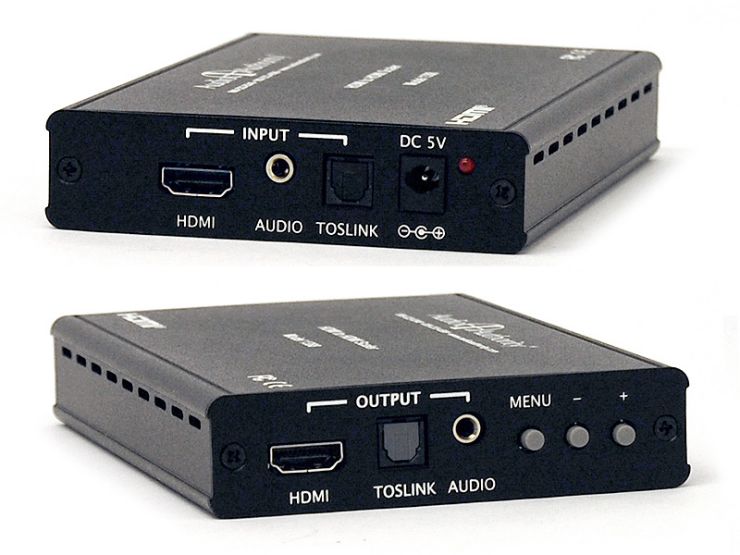

[Input / output]
Input / output


Overview

The 1388 converts video resolutions to and from a variety of PC and HD formats, and provides both an HDMI input and output. It accepts audio embedded in the HDMI signal or external analog and digital sources of audio. The 1388 accepts HDMI signals from Cable and Satellite receivers, DVD players, Blu-ray Disc players and PCs and many other HDMI sources. It is useful for converting the source video signals for compatibilty with HD displays and distribution systems.

Audio Applications
The 1388 is also useful with audio distribution systems. It converts two channel digital input (HDMI or optical) to analog output for an audio distribution system, and simultaneously embeds the digital audio in the HDMI output for displays in remote zones. The 1388 embeds audio from external sources (supports Dolby Digital and DTS multi-channel surround as well as 2-channel PCM) and outputs it in the original formats. Variable audio delay provides correction for lip sync errors.

Key Features


Video Features:

  • Accepts and outputs resolutions up to 1080p and WUXGA
  • Default output resolution is 1080p@60Hz
  • Automatically detects the resolution of the connected display (Native mode)
  • Accepts 1080p, 1080i, 720p, 480i or 576i input
  • 50/60Hz frame rate conversion
  • 3-D Motion Adaptive, 3-D de-interlacing and 3:2 / 2:2 pull-down
  • OSD interface (On Screen Display)
  • Adjustments include contrast, brightness, hue, saturation, sharpness & RGB levels
  • HDMI 1.2 and HDCP 1.1 compliant

    Audio Features:

    • Supports digital and analog audio input and output
    • Converts two channel digital input to analog output, while preserving the digital audio in the HDMI output
    • Variable audio delay (up to 150ms)



    Specifications

    Video Parameters
    • HDMI Input/Output: HDMI connectors
    • Video Adjustments: Contrast, brightness, hue, sharpness, saturation, R-G-B levels
    • De-Interlace: 3D motion adaptive
    • Pull-Down: 3:2 + 2:2 recovery
    • HDMI Compliance: HDMI 1.2, HDCP 1.1, DVI 1.0
    • Image Component Processing: Full time/full range
    • Frame Rate Conversion: 50/60Hz
    • Scan Conversion: Converts all standard scan formats

    Miscellaneous
    • Size (H-W-D): 1x4x5.7 in. (25x102x145mm)
    • Weight (Net): 11.4oz (324g)
    • Limited Warranty: 1 year parts and labor
    • Operating Temperature: +32° to +122°F (0° to +50°C
    • Operating Humidity: 10% to 90%, non-condensing
    • Storage Temperature: +14° to +140° F (-10° to +60° C)
    • Storage Humidity: 10% to 90%, non-condensing
    • External Power Supply: 5VDC@2A (center +) US, UK or Euro
    • Regulatory Approvals: Scaler: FCC, CE, RoHS
    • Power Supply: UL, CUL, CE, PSE, GS, RoHS
    • Accessories Included: 3.5mm to 2CH RCA cable, AC power adapter, manual
     Audio Parameters
    • Analog Stereo: 1x via 3.5mm stereo connector
    • Digital: 1x SPDIF via Toslink connector
    • Variable Audio Output Delay: Off / 40ms / 110ms / 150ms
    • Analog Stereo Levels: Input: 2Vrms / Output: 1Vrms
    • Toslink Input/Output Level: Sampling rate 48KHz 2CH LPCM
    • Analog Stereo Bandwidth: 20Hz to 20KHz

    In the Box
    • 1388 Scaler
    • 3.5mm to Stereo RCA cable
    • User manual
    • AC power adapter




    Supported Resolutions

    INPUT
    PC (RGB)
    Resolutions
     VGA@(60/72/75/85Hz)
    SVGA@(56/60/72/75/85Hz)
    XGA@60/70/75/85Hz
    SXGA@(60/75/85Hz)
    UXGA@60Hz
    WXGA@60Hz
    WSXGA@60Hz
    WUXGA@60Hz

    INPUT
    PC (RBG) or YUV*
    HDTV Resolutions
     480p
    576p
    720p@50/60Hz
    1080i@25/30Hz
    1080p@50/60Hz
    480i, 576i

    OUTPUT
    HDMI PC Resolutions
     VGA@(60/72/75/85Hz)
    SVGA@(56/60/72/75/85Hz)
    XGA@(60/70/75/85Hz)
    SXGA@(60/75/85Hz)
    SXGA+@60Hz
    UXGA@60Hz
    WXGA@60Hz
    WXGA+@60Hz
    SXGA@60Hz
    WUXGA@60Hz

    OUTPUT
    HDMI HDTV Resolutions
     480p
    576p
    720p@50/60Hz
    1080i@25/30Hz
    1080p@50/60Hz (Default)


    *Requires YUV to HD-15 adapter.

    Downloads

    Documents

    Frequently Asked Questions


    Q: Does the 1388 provide two channel audio output while passing multi-channel surround sound through the HDMI output?
    A:
     No. The 1388 can pass multi-channel audio to the digital outputs, but if two channel audio output is required, the source must be set to output 2-channel PCM digital audio to the 1388.

    Q: I can hear some audio using the 1388 analog output but why is the soundtrack dialogue not audible?
    A: The source is probably set to output multi-channel surround sound. What you hear through the 1388 analog output is sound from the left and right channels, without the main center channel. Set the source to output 2-channel PCM audio for a true stereo analog audio output.



    Downloads




    Related Products

    Model 2801
    [HD-IP™ Transmitter]
    HD-IP™ Gigabit Video Distribution Transmitter
    Model 1385
    [PC to HDTV video converter]
    VGA to HDMI Scaler with Advanced Video Processing
    Model 1366
    [1366 PC/HD Scaler]
    PC / HD Scaler with Advanced Video Processing
    Model 1322D
    [EDID Controller]
    HDMI EDID Controller
    Model AMP-1235
    [Multi-zone 12 channel amplifier]
    12-channel Amplifier - DISCONTINUED
