Audio Authority now offers an extensive line of compliant distribution amplifiers, repeaters and switchers for HDMI and DVI signals. All units are FCC, and CE approved, and all power supplies are UL, CE and CSA approved.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

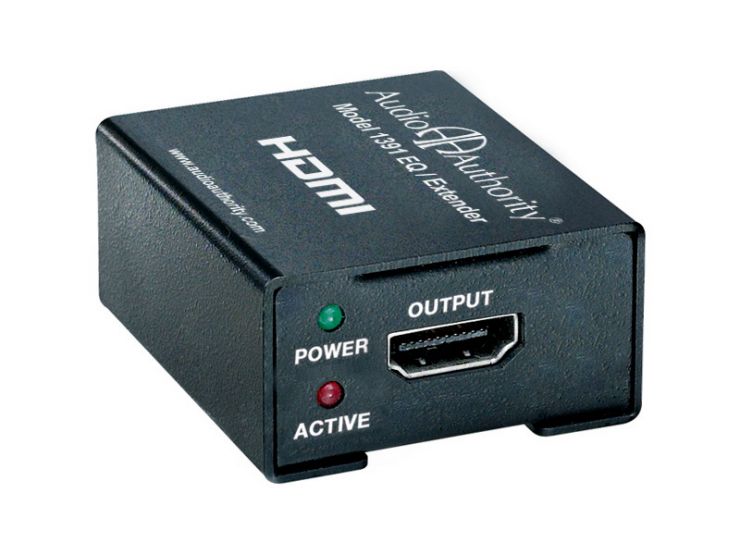

Using the 1391 Extender
The Model 1391 reconstitutes the HDMI signal at the end of long cable runs, just before the display input. The maximum cable length from the source to the 1391 input is 40 meters. The cable length from the 1391 output may be up to 5 meters using premium cables. In many cases, more than one 1391 can be used in a single cable run.

Greater Reliability
Most other products designed to perform this task rely on the power supplied by the source over the HDMI cable itself. This power source can be inconsistent from source to source, and performance often suffers. The 1391 is powered by a separate, external power supply to ensure solid reliability and excellent performance.

• External power supply for solid reliability
• Supports HDTV resolutions of 480p, 720p, 1080i & 1080p
• DDC (EDID) pass-thru for proper display recognition
• 1 input, 1 output (HDMI)
• Recommended maximum cable length per unit is 40 meters
• Up to 3 units can be cascaded (using premium cable)
• HDCP compliant
• All metal construction

Product Dimensions: 1 x 2.5 x 2 x 1 (HxWxL, inches)

Downloads

• 1391 User Manual (PDF file)
