Audio Authority now offers an extensive line of compliant distribution amplifiers, repeaters and switchers for HDMI and DVI signals. All units are FCC, and CE approved, and all power supplies are UL, CE and CSA approved.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Audio Authority 1390-series HDMI Distribution Amplifiers use high quality Silicon Image HDMI Chipsets, capable of delivering 1080p video at refresh rates up to 60 Hz, and color bit depths up to 36 bits. Bitstream audio is also supported - including LPCM 7.1 channel uncompressed audio, Dolby Digital TrueHD (7.1), and DTS HD: Master Audio (7.1). Legacy codecs such as Dolby Digital and DTS core are also supported.

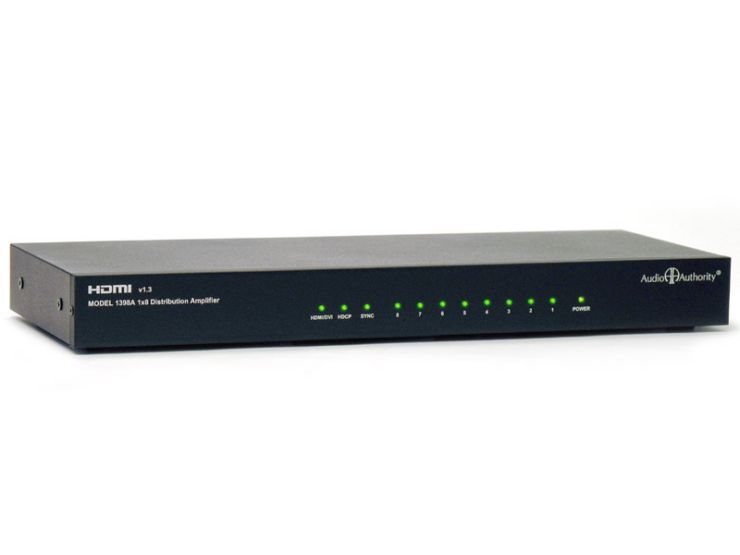

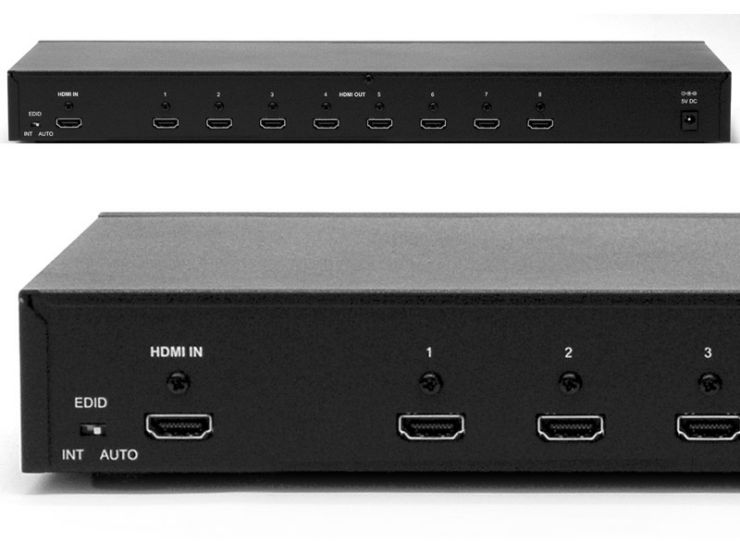

Model 1398A distributes HDMI audio and video signals from one source to eight HDMI displays.

General Features:

• Fully HDCP compliant
• Supports HDTV, EDTV, and SDTV resolutions
• 1 input, 8 outputs (HDMI)
• HDMI certified
• All metal construction

HDMI version 1.3 Features Supported:

• 36 bit Deep Color (sum of all channels)

• 1080p/60 and 1080p/24
• Dolby TrueHD and Dolby Digital Plus (bitstream throughput)

• DTS HD and DTS HD: Master Audio (bitstream throughput)

• LPCM Uncompressed Audio (7.1 channels)
• Lip-sync compensation


Product Dimensions: 2" x 17 1/8" x 6 1/4" (H x W x D, inches)


Don't Forget Cables!
Our high quality, reasonably priced, Z-Series HDMI cables are available in lengths from 6 to 50 feet.


Downloads

• User Manual
