Product Categories > All > 1522


[Image for 1522]
2-way audio/video, with call button

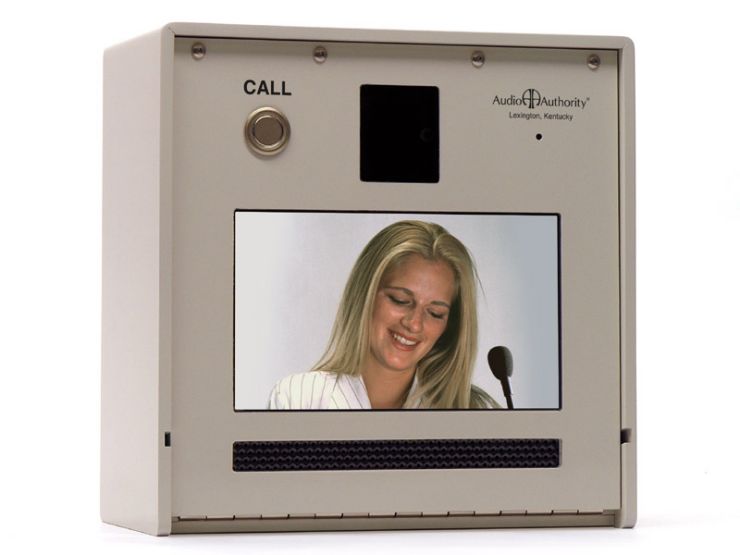

POS Station-Housing with LCD, Camera, Speaker, Mic and Call-Button
Model 1522

[buyintercom]

The 1522 is a complete audio/video Lane Station in an enclosure which can be installed on any drive up or point of sale location.

*Special Order Item* - Call for delivery quote.


Categories: Intercom, Customer
FAQ


  • Tough PVC housing can be mounted from the bottom or back to any surface
  • All features of the 1520 Lane Station apply to the 1522
  • Audio/video signals plus all other functions are carried on a Cat 5 cable to a Hub (or directly to a Counter Station in a 1x1 system)
  • Included tilt mechanism (804-039) is controlled by the Camera Up/Down controls on Counter Station keypads
  • Heavy duty clear polycarbonate protects camera, mount, and LCD display
  • Includes a 571-013 power pack and an 802-534 AC Power Adapter Harness for connection to a 120V power source
  • Thermostat controlled heater extends operational temperature range: -31F to 131F (-35C to 55C)

Product Dimensions: 9 x 9 x 4.5 (H-W-D, inches)


Downloads
