[Image for 1580HS]
1:1 or 1:2 Audio Intercom System
1:2 Intercom System with Handset - Audio Only
Model 1580HS - Discontinued

[]

The 1580S has been replaced by the combination of 1500BH and the new 1522B dual lane station.

WARNING: The 1580 system is NOT COMPATIBLE with the 1522B. Use only with 1500B counter station.


Categories: Intercom, Counter Station

[Touch keypad]
Touch keypad
[Dual Lane Sation]
Dual Lane Sation

Overview

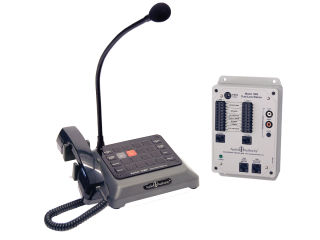

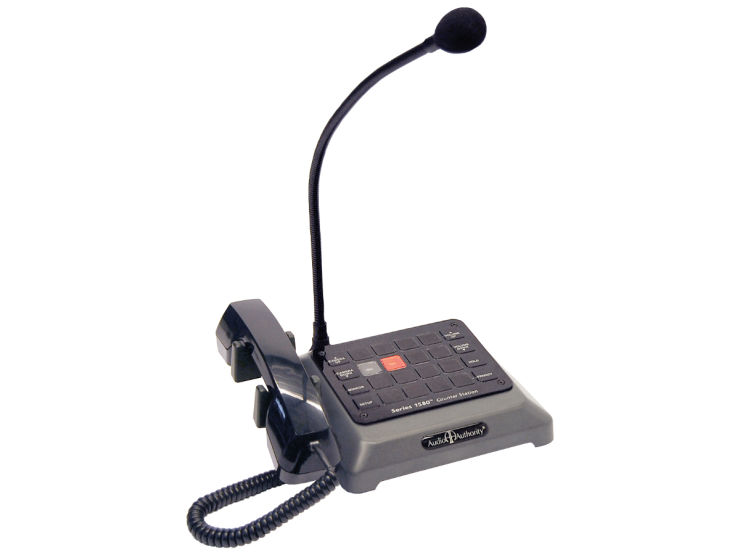

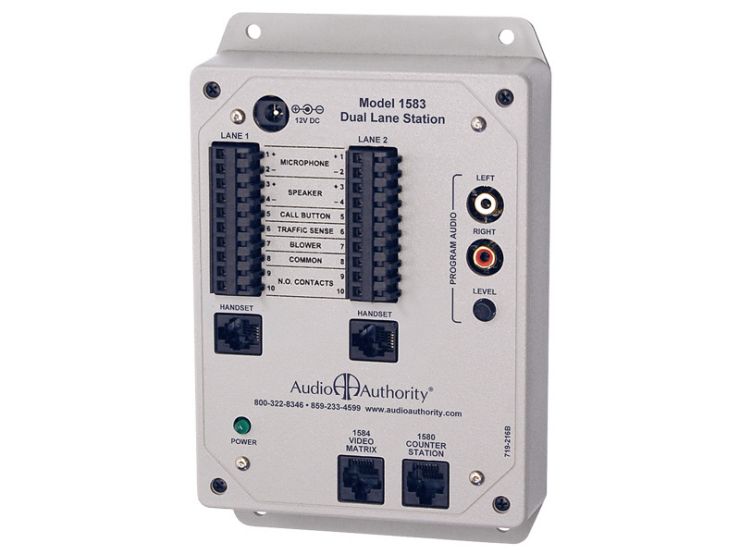

Kit 1580HS includes a 1580H Counter Station plus a 1583 Dual Lane Station. Designed to minimize cost for simple 1-on-1 or 1-on-2 drive-up applications, it incorporates the great features and sound quality of our versatile 1500 Series in a less expensive design. The 1580H Counter Stations connect directly to a special 1583 Dual Lane Station via Cat 5e/6 for easy installation, and include a hook-switch activated handset for private communications.

The 1580 Series shares most of its functions with the 1500 Series Intercoms, so no new operator training is required. However, its wiring is unique, so it cannot be mixed with 1500 Series Counter Stations, Lane Stations, or Hubs.





                1580HS wiremap



Options
  • Kit 1580S is similar to the Kit 1580S, but does not include a teller handset
  • Model 1542P wireless headset may be used with 1580 Counter Stations


Features

Key Features
  • Excellent two-way audio performance
  • Intuitive lane selection with volume up/down controls
  • Durable, easy to clean, touch-sensitive keypad – no moving parts
  • Privacy feature bypasses mic & speaker when headset or handset is in use
  • Smal footprint

Specifications

Audio Parameters
  • Volume Control Range: 16 dB (Five 3.2 dB steps)
  • Lane Speaker Gain Range: 20 dB
  • Aux Audio Gain Range: 30 dB
  • Maximum Speaker SPL: 90 dB (1 meter, with 4 Ohm speaker such as Model 631-030)
  • Amplifier Output Power: 4 watts @ 7% THD, into 4 Ohm load
In the Box
  • Model 1580H Counter Station
  • Model 1583 Dual Lane Station
  • User manual
  • Model 571-013 Power Supplies (2)
Video Parameters
  • Video is not supported for 1580 Series - see 1500
Miscellaneous
  • Input Power Requirement: 12 volts DC at 1 amp
  • Footprint Dimensions: 7 x 7.25 inches
  • Product Weight: TBA
  • Shipping Weight: TBA
  • Agency Approvals: FCC
  • Cable type: shielded, paired cable with three to six twisted pairs of conductors (depending on configuration)

Downloads




Frequently Asked Questions

Q: Can 1580 series products be used with existing 1500 series intercom systems?
A: No, 1580 series components use a unique wiring infrastructure and can only be used with other 1580 series products.

Q: What types of cable does Audio Authority recommend for use in 1580 series installations?  How far can I reliably run my particular type of cable?
A: Consult this chart of recommended cables and maximum distances:




Related Products

Model 1500BH
[Counter station with handset and cradle]
Series 1500B Counter Station with Handset 		Model 1522B
[Model 1522B]
Dual Lane Station 		Model 1580S
[1:1 or 1:2 Audio Intercom System]
1:2 Intercom System - Audio Only 		Model 1542s
[1542S Wireless Headset with headband]
Secure Digital Wireless Headset Kit 		Model 1540
[Surface mount handset ]
Armored Lane Handset and Hookswitch
