[Image for 9870D]

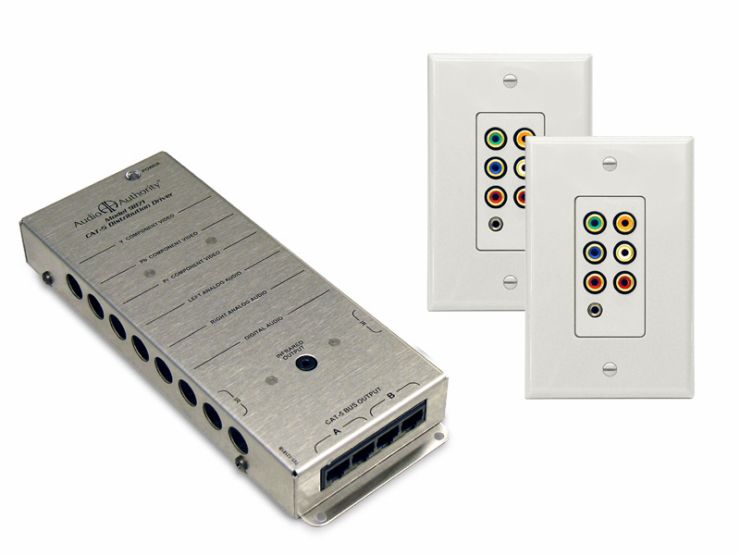

Includes one driver and two receivers

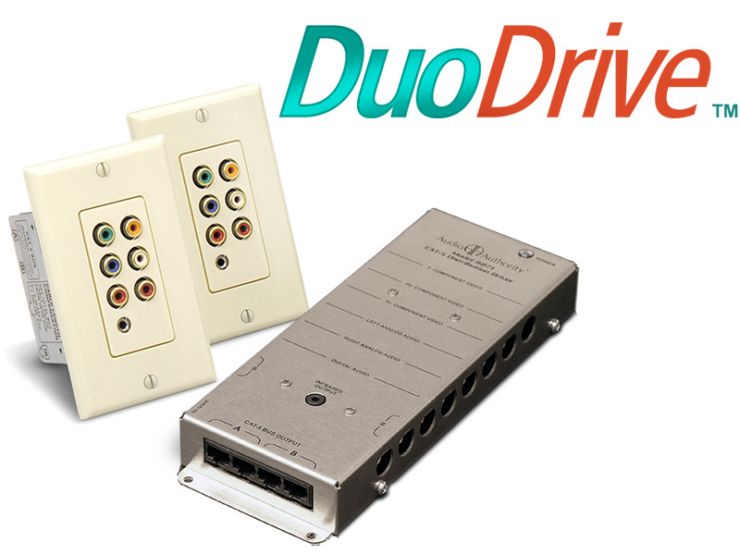

DuoDrive 1:2 Cat 5 HD Signal Distribution System
Model 9870D

[Buy Online]
$599.00 USD

Distribute HDTV signals to multiple rooms with our DuoDrive Cat 5 HD signal distribution system. Each DuoDrive (Model 9870D) serves two remote locations. Expandable to serve up to 10 locations. Made in the USA.


Categories: Cat 5, Component Video, Distribution, Extender, Digital Signage Extender, Digital Signage Distribution
Feedback


[9879 Wallplate]
9879 Wallplate
[Rear view]
Rear view
[Color inserts]
Color inserts

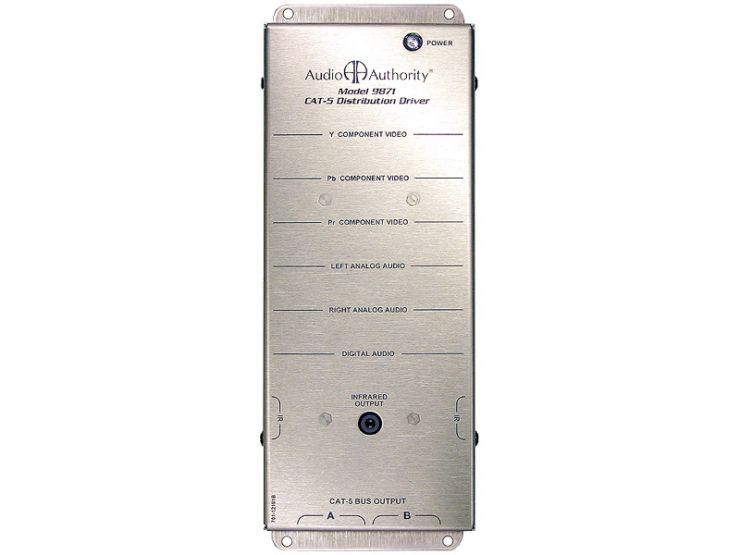

[Cat 5 Driver]
Cat 5 Driver

Overview

The Model 9870D DuoDrive incorporates the key signal paths necessary for premium audio and video entertainment, plus an IR pathway for easy remote control of AV components. All this over just two inexpensive, easy to install Cat 5 cables. The Model 9871 Cat 5 Driver distributes HDTV signals up to 1,000 feet from the source.

  • 1-input, 2-output Cat 5 extension/distribution system
  • Expandable by bussing together multiple 9870 systems
  • Supports component video, analog audio, and digital coaxial audio
  • IR passthrough allows simple control
  • Utilizes two Cat 5 cables for signal extension
  • Made in the USA

Features

Key Features
  • 1080p component video (YPbPr)
  • Coaxial digital and stereo analog audio
  • Infrared remote jack for IR pathway (passive)
  • Wallplate powered through Cat 5 cable
  • Dual-gang wallplate with antenna pass-through jack
  • Alternative Cat 5 wallplate/receiver options
Inputs/Outputs
  • Component video (YPbPr) - 1/2 (Cat 5)
  • Digital audio (coaxial and optical) - 1/2 (Cat 5)
  • Analog stereo audio (L/R) - 1/2 (Cat 5)

The Wallplate
The 9879 Wallplate/Receiver is easy to install in a standard single-gang electrical box. Two Cat 5 cables deliver component video, digital audio and analog audio to each wallplate. Three color inserts are included (white, ivory, and almond).

The 3.5mm IR jack provides a convenient pathway for a third party IR remote distribution network. It is a passive, three-wire pathway on the Cat 5 bus, so it can pass IR signals either way. IR receiver and emitter equipment not included. See 9870 for a kit that includes dual gang, 9878 Wallplate/Receivers.

Reliable and Expandable
Our unique cable length compensation allows adjustment for the optimal signal strength at any distance up to 1,000 feet from the source. Like our commercial video distribution products, the DuoDrive provides reliable ground isolation, preventing hum bars and other artifacts associated with ground loops.

It's easy to expand a DuoDrive up to ten wallplate/recievers. Simply stack additional 9871 Drivers using our Kit 46 stacking kit, or connect using high quality RCA cables. The RCA bus output may be used to feed HDTV signals to a local video display and/or sound system. See the PDF Installation Manual for details.

To the Home Owner
While the DuoDrive is ideal for new construction or an existing home, it does require special knowledge and tools to install. We suggest you contact a local custom home installation specialist. Many installation specialists are members of the Custom Electronic Design & Installation Association and can be located through the CEDIA website.

Specifications

Video Parameters
  • Video Formats: 480i/p, 576i/p, 720p, 1080i/p
  • Input/Output Impedance: 75 ohms
  • Input Ground Isolation: Yes
  • Gain: 1
  • Gain Accuracy: 3%
  • 3dB Bandwidth: 120MHz
  • Input Coupling: AC
  • S/N Ratio: 35dB
  • Max Equalization: 40dB
Audio Parameters
  • Input Impedance: 75 ohms/47.5K ohms
  • Min Load Impedance: 75 ohms/10K ohms
  • Multi-channel Digital: Yes
  • Frequency Response: 10-50KHz
  • S/N Ratio: 55dB
  • THD+Noise: 0.10%
  • Crosstalk: -70dB
Miscellaneous
  • Connector Types: RCA (YPbPr, analog audio, digital coaxial audio), Toslink (digital optical)
  • Dimensions (inches, HxWxD):Wallplate/receiver: 4 x 1.6 x 2.75; Cat 5 Driver: 9 x 3.5 x 1
  • Shipping Weight: 2.65 lbs
  • Agency Approvals: FCC, CE, C-tick
  • DC Input Connector: 5.5 x 2.1mm
  • DC Input Voltage/Polarity: 18V/Center Positive
  • Max DC Input Current: 350mA
  • Heat Output: N/A
In the Box
  • Power Supply (Model 571-014)
  • (9) RCA Barrel Connectors
  • Decora-style inserts: white, ivory, almond
  • User Manual

          Downloads

          Documents
          • Product Focus Sheet: 9870D (.pdf)
          • User Manual: 9870D (.pdf)

          Frequently Asked Questions

          Q: How many outputs can a bussed system of 9870Ds support?

          A: Bussing together 9870D systems allows almost unlimited expansion. Generally we recommend limiting such a system to ten total Cat 5 drivers, or 20 maximum zone outputs.
