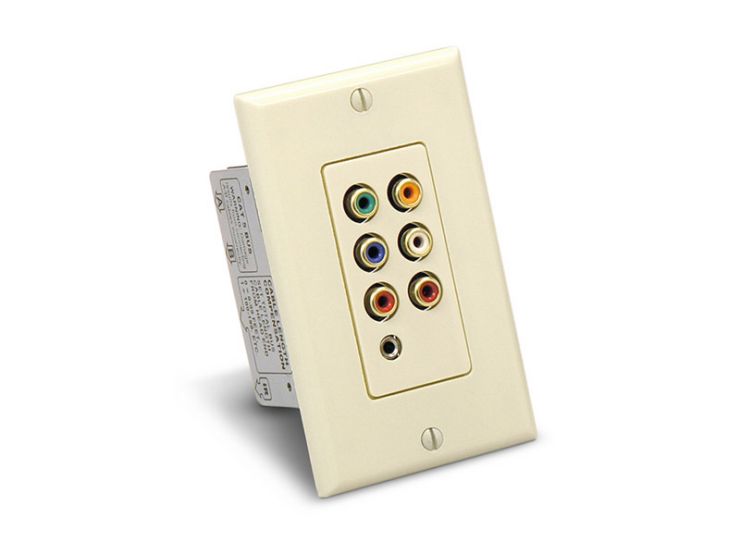

When connected to a compatible Audio Authority driver, the 9879 provides pristine component video, digital coaxial audio, analog L/R audio, plus front and rear IR jacks.

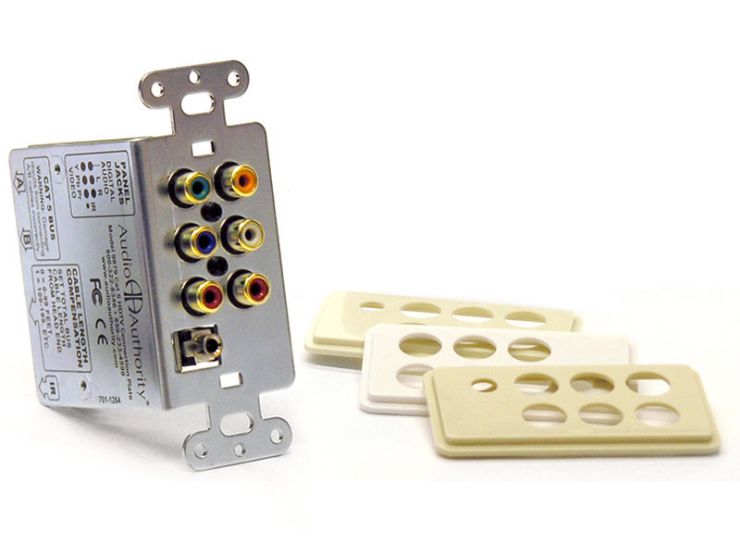

• Includes Decora^® style inserts in white, ivory, and almond (Decora trim covers are not included)

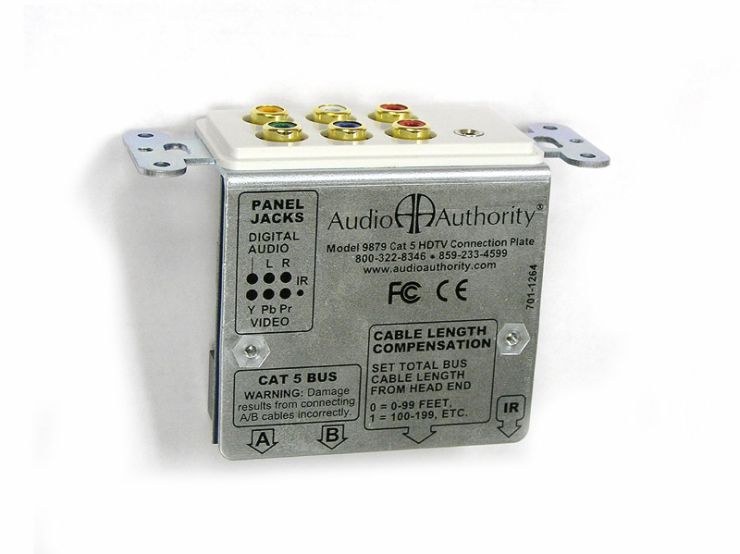

• Cable length compensation adjustment allows the installer to fine tune image and sound quality over long Cat 5 runs
• Front and rear facing IR jacks for external or in-wall IR connections
• Fits in a standard US single-gang wall box
• Compatible with: Models 1170, 1171, 1176, 9871, 9870, AVX-661, and AVX-561

The 9879 is one of three Cat 5 receivers compatible with the 1100 Series. Use any combination of receivers in the same system for the perfect mix of logistics and aesthetics. View a Cat 5 Receiver comparison table.



** Caution ** Always correctly pair and terminate Cat 5 cables, and test pairing and continuity before connecting power to the driver and Wallplate. Incorrect cable termination, or plugging a cable into the wrong port can result in Wallplate damage.




Product Dimensions: (H-W-D, inches)

• 4 x 1.6 x 2.75 (Decora trim cover not included)
