Overview

The ADX-0808 is the cornerstone of a quality distributed audio system. Loaded with features like onboard volume control, 2.1 low-pass filter, a 10-band equalizer, tone and balance controls, the ADX-0808 mates up with any zone amplifier and control system to deliver high fidelity audio to up to 8 independent stereo zones. New discrete commands are provided in the revised ADX manual, available for download below. Supports eight sources and eight zones (Model ADX-1616 supports 16 sources and 16 zones) Ethernet, RS-232, IR, and front panel control options Digital volume control, 10-band equalizer, tone, and balance controls for each output zone Low-pass filter and zone grouping feature designed for adding a sub in each audio zone Single-cable audio connection (DB25) to soon-coming Audio Authority amplifiers PC utility is a free download that allows quck setup using a Windows PC via RS-232 connection, or remotely via USB drive Rack mountable with included 2U rack-mount ears Designed and Built in Lexington, Kentucky USA		See hotel, restaurant, and home application drawings featuring the new SonaFlex 16-channel amplifier and the ADX (download PDF).

Features

• 8x8 matrix switcher (also available ADX-1616)
• Integrates seamlessly with third party control systems from Control4, URC, RTI and more
• IR and RS-232 codes available for use with virtually any third party control system
• Zone grouping (10 groups) and Source/Zone combination presets (10 source/zone combinations)
• Global source selection (all zones on to same source)
• Front panel lockout
• Simple setup using our PC utility via serial, Ethernet or USB drive
• 2U rack mount ears included

• Custom DSP settings per zone: 10-band EQ, tone (bass/treble) and balance
• Low-pass filter and 2.1 zone grouping feature designed for adding a sub in each audio zone
• ExpressRamp™ digital volume control prevents abrupt volume changes (0 to -80dB attenuation)

• Stereo analog audio - 8/8 (RCA)

• Ethernet (download our free iPad app template for Command Fusion)
• RS-232 two-way serial (Control4 and RTI drivers available)
• Front panel IR sensor
• Rear panel IR input (3.5 mm jack or 3-pin header)

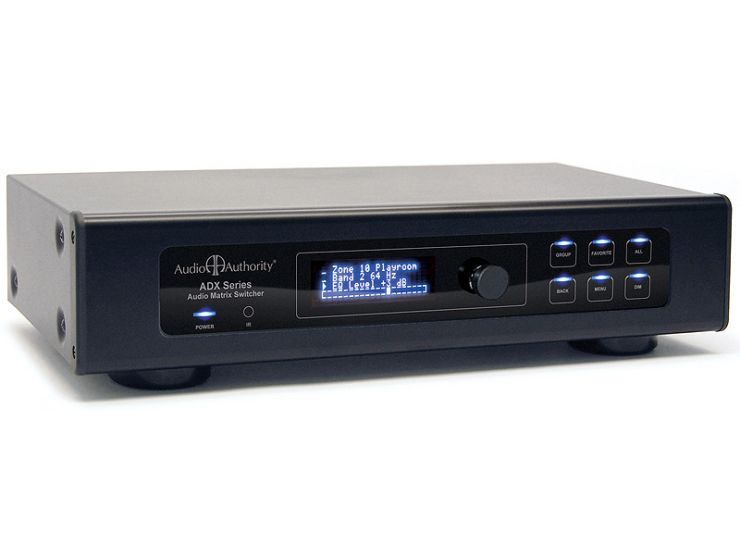

• Full front panel control with capacitive touch surface and simple rotating multi-function knob

Specifications

Reviews

Frequently Asked Questions

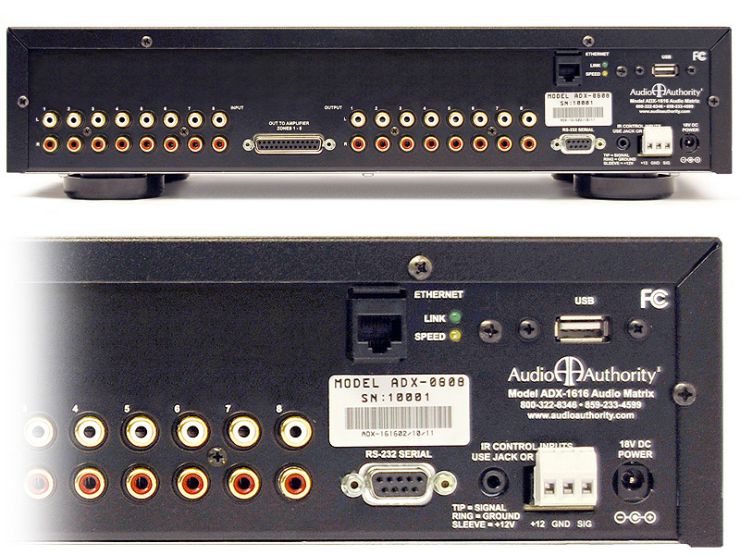

Q: What is the DB25 connector for on the rear panel of the ADX?
A: In the near future, Audio Authority will introduce the SonaFlex multi-zone amplifier that has a DB25 connector as an alternate input method.

Q: What is the process to create a 2.1 zone group?
A: In brief, you first apply the lowpass filter to a zone, which also produces a mono signal on both channels of the zone. Then you group the lowpass zone with a full range zone, so that group commands (e.g. volume, mute, and switching) effect both outputs.

Q: Can I use both of the mono outputs in a lowpass zone?
A: Yes. Both low level zone outputs may be connected to separate powered subwoofers, or to two separate amplifiers driving passive subs.

Q: Why don't changes to an EQ preset take effect immediately?
A: Select another preset in the zone and then return to the changed preset. EQ presets are not designed to be adjusted on the fly (use ZQ for real time EQ settings).
