AVAtrixPLUS (AVM-562, 1173BK, AMP-1235)
6x6 AVAtrixPLUS™ Video Plus Audio Package
AVM-562P - Discontinued

[]
$4597.00 USD
Key Features:
  • 6-in, 6-out audio and video matrix (six Cat 5 zone outputs, one local component video zone without volume control)
  • Expandable up to 18 audio and video zones (call for custom configurations)
  • Integrates with any third party programmable control system
  • Extends video and audio up to 1,000 feet over Cat 5e/6 cable
  • Distributed audio follows video zone switching
  • Includes AVM-562E, AMP-1235, and 1173BK

Categories
Feedback

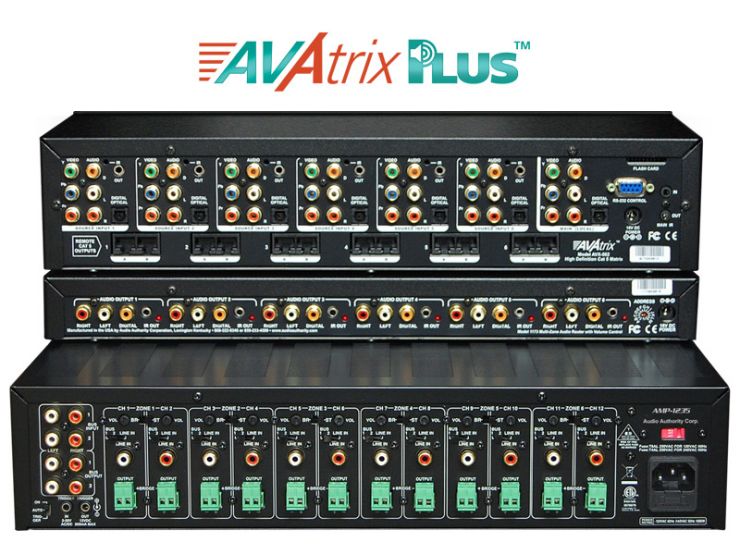

[Components]
Components
[Rear view]
Rear view
[Matrix rear]
Matrix rear
[Receivers]
Receivers
[Single Cat 5]
Single Cat 5
[Zone amp rear]
Zone amp rear

Overview

The AVAtrixPLUS is a complete, simple solution for whole house entertainment: video matrix switching, distributed audio, and volume control. Six audio/video sources distribute HD signals to video zones up to 1,000 feet away. The industry's first Cat 5 matrix still leads the category with a combination of performance, value, and unique features.
  • 6-in, 6-out audio and video matrix (six Cat 5 zone outputs, one local component video zone without volume control)
  • AVAtrixPLUS system is expandable up to 18 audio and video zones
  • Supports video up to 1080p
  • Integrates with any major brand programmable IR remote control, or RS-232 serial controllers
  • Extends video and audio up to 1,000 feet over Cat 5e/6 cable
  • Distributed audio follows video zone switching

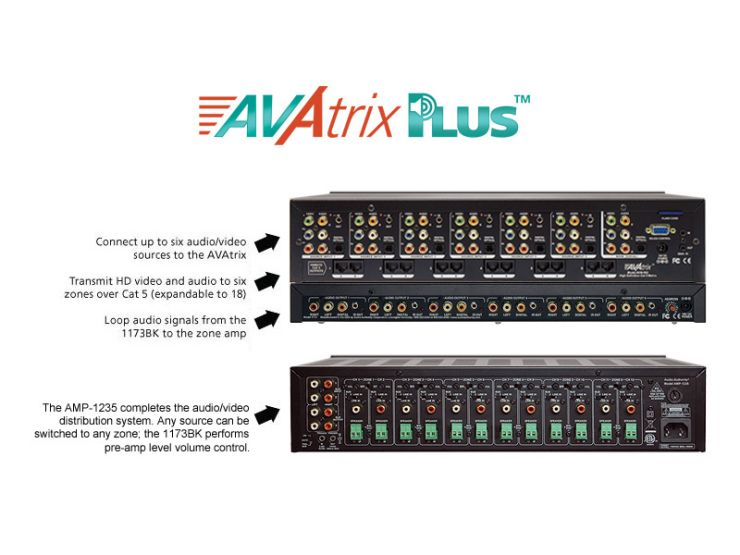

What is AVAtrixPLUS?
AVAtrixPLUS is a package including one AVM-562E, one 1173BK, and one AMP-1235. We created the package to make this popular system easy to specify. To expand video and/or audio output capacity, call for an exact configuration meeting your requirements.

Features

Key Features
  • Switches and distributes video and audio over Cat 5e/6 cables to six video zones (see all five zone receiver options)
  • Switches and distributes speaker level audio to six two-channel zones
  • Pre-amp level volume control per zone (IR or RS-232 control)
  • Integrates seamlessly with third-party control systems from Control4, URC, RTI, and more

Inputs/Outputs
  • Component video (YPbPr) - 6/7 (6 x Cat 5e/6, 1 x RCA)
  • Digital audio (coaxial and optical) - 6/7 (6 x Cat 5e/6, 1 x RCA)
  • Analog stereo audio (L/R) - 6/7 (6 x Cat 5e/6, 1 x RCA)

Amplifier Features
  • Compact, high-performance zone amplifier designed for multi-room/multi-zone audio installations
  • Outputs 35 watts per channel with all twelve channels driven
  • Bridged mode enables higher power output
  • Thermal and short protection prevent product failure in stressful applications
  • Selectable turn-on modes save power to minimize cost

Control Interfaces
  • RS-232 Serial
  • Front panel IR receiver
  • Rear panel IR jack (3.5 mm jack)
  • IR input on each zone receiver (3.5 mm jack)
  • Amplifier has 12V trigger or auto-off per channel
  • Front panel capacitive touch buttons and knob

IR Routing

The AVAtrix includes an IR routing system that is unique in the industry. The AVM-562E offers individual IR outputs for each source. This routing system allows zone IR signals to be routed only to the source currently active on that zone. This design is vital for installations including multiple cable or satellite receivers of the same brand. The AVAtrix also includes a Main IR Output for all signals returned from the remote zones.

Note: IR Routing is not a viable control method for all installations. Before planning to use the AVAtrix's IR routing system in your installation, contact our technical support personnel for more information.

Specifications

Video Parameters
  • Video Formats: 480i/p, 576i/p, 720p, 1080i/p
  • Input/Output Impedance: 75 ohms
  • Input Ground Isolation: No
  • Gain: 1
  • Gain Accuracy: 2%
  • 3dB Bandwidth: 150MHz
  • Input Coupling: AC
  • S/N Ratio: 61dB
  • Max Gain/Equalization: 1.00 gain

AVAtrix Miscellaneous
  • Connector Types (Input): RCA (YPbPr, analog audio, digital coaxial audio), Toslink (digital optical)
  • Connector Types (Output): Dual RJ-45 (6 Cat 5 matrix outputs), RCA (local output)
  • Dimensions: 3.5 x 16.5 x 9.6 - add 0.5 to height to include feet
  • Product Weight: TBD
  • Shipping Weight: 11.98 lbs.
  • Agency Approvals: FCC, CE, C-tick
  • DC Input Connector: 5.5 x 2.1mm
  • DC Input Voltage/Polarity: 18V/Center Positive
  • Max DC Input Current: 1.9AmA (1.0A with no Cat 5 Receivers)
  • Heat Output: 62 BTU/hr

Amplifier Miscellaneous
  • Connector Types (Input): (2) RCA stereo analog audio
  • Connector Types (Bus Outputs): (2) RCA stereo analog audio
  • Connector Types (Amp Output): Dual position screw-locking headers
  • Dimensions: 3.5" x 17 x 15 (H-W-D)
  • Product Weight: 28 lbs.
  • Shipping Weight: 33 lbs.
  • Agency Approvals: FCC, ETL
  • Max speaker wire gauge: 14 ga.
 Audio Parameters (Cat 5 Outputs)
  • Input Impedance: 75 ohms/50K ohms
  • Min Load Impedance: 75 ohms/10K ohms
  • Multi-channel Digital: Yes
  • Frequency Response: 10-50KHz
  • S/N Ratio: 72dB
  • THD+Noise: 0.03%
  • Crosstalk: 75dB

Audio Parameters (Amplifier Outputs)
  • 35 Watts per channel into 8 ohms (20Hz to 20KHz)
  • 50 Watts per channel into 4 ohms (20Hz to 20KHz)
  • 100 Watts per channel bridged into 8 ohms (20Hz to 20KHz)
  • Distortion at rated power: 0.1% THD
  • Input Impedance: 10k ohms
  • Frequency Response: 5-65kHz
  • THD+Noise: 0.03%

items and Accessories Included
  • Power supply: Model 573-003
  • Power cord (for AMP-1235)
  • IR Remote Control: Model 1105BK
  • Rack Mount Ears: Model 1192A
  • Internal Bus Connection Cable (Pre-installed): 802-567
  • User Manual

Downloads

Documents
Video
  • AVAtrix Video Introduction (1.6MB avi video)
  • See video of the new AVAtrix as it was introduced at CEDIA 2008. Video from Marketnews Magazine.

Firmware and Software
IR Codes

Frequently Asked Questions

Q: How can I expand the number of video and audio outputs on the AVAtrixPLUS?
A: The AVAtrixPLUS output capacity can be expanded in increments of six. To expand video zones, add 1176BK expanders. To add audio zones, add one 1173BK expander, and one AMP-1235. The maximum number of AVAtrixPLUS zones is 18. The AVAtrix must be the higher capacity AVM-562E when adding more than two expanders (1176BK or 1173BK). Call Audio Authority to configure a system to meet your requirements.

Q: Can I add video zones without adding more distributed audio zones?
A: Yes. Each AMP-1235 should have a 1173BK for switching and volume control, but more video zones may be added by installing multiple 1176BK Cat 5 expanders. The AVM-562E has a capacity of five expanders, not counting AMP-1235 as an expander. Call Audio Authority to configure a system to meet your requirements.

Q: If I customize my system, can I still get the AVAtrixPLUS package discount?
A: Yes. Call for a discounted quote on custom systems. It will always be to your advantage to order the AVAtrixPLUS package and then customize, rather than building a system from individual components.

Q: Can I use just one Cat 5 cable if I only need Component Video?
A: Yes, if you use a Model 1110 adapter, any AVAtrix dual Cat 5 output can feed a Model 1180R or 1180RD single-Cat 5 zone receiver. Note: these receivers offer Component Video and digital audio, but no IR pathway, and no analog audio connections.


Accessories

Recommended Accessories (sold separately)


Cat 5 receivers are required for system installation. Receiver styles include Model 9878 shallow-depth, dual-gang wallplate, Model 9879 Decora-style, single-gang wallplate, and the Model 9880 on-wall or in-wall Cat 5 receiver.

View a Cat 5 receiver comparison table.


Our single Cat 5 receivers offer the same great quality component video but require only ONE Cat 5 cable. Model 1110 adapts the dual Cat 5 output of the AVAtrix to work with single Cat 5 receivers. Digital audio pathway included. Model 1180RD is the Decora-style, single-gang wallplate, and the Model 1180R is the on-wall or in-wall receiver.


Model 1173BK Multi-Zone Audio Router with Volume Control for integration with whole house audio systems or zone amplifiers. Note: it is necessary to order AVM-562E when using more than one 1173BK.


Model 1176BK Matrix Router Expander (receivers sold separately) adds six additional Cat 5 outputs.


Model 1109 IR Injector to enable in-bound or out-bound traffic on the AVAtrix Cat 5 IR pathway.

1111

Model 1111Control Bridge allows control signals to be sent from a head-end control device through the AVAtrix to sources via the Cat 5 IR pathway.
