General Description
The AVAtrix AVX-561-NR provides component video connection of sources, and distributes HD signals up to 1,000 feet away to convenient Wallplates mounted wherever televisions are to be located.

• 6-in x 7-out matrix router; any of six sources may be routed to any remote output, or the local output
• System is expandable up to 36 remote Wallplate outputs
• Resolutions: Any, up to 1080p
• Maximum Distribution Range: 1,000 feet over Cat 5e


Source Inputs (up to six)

• Component video
• Digital audio (coaxial and optical)
• Analog stereo audio

Audio and Video Outputs

• Local Output: component video, digital audio (coaxial and optical) and analog stereo audio
• Six Wallplate outputs (two Cat 5 cables each) for matrix distribution to remote Cat 5 Receivers


Homeowners - The AVAtrix is perfect for sending your favorite media from a central location to anywhere around your home. Simply plug your sources into the AVAtrix, run the Cat 5 cables to where you want to watch TV, connect the Wallplates, and select what you'd like to watch. It keeps electronic clutter out of sight while delivering pristine high definition anywhere you want it. Note: While the AVAtrix is ideal for new construction or an existing home, it does require special knowledge and tools to install. We suggest you contact a local custom home installation specialist. Many installation specialists are members of the Custom Electronic Design & Installation Association and can be located through the CEDIA website.

Integrators - This is your ticket to quicker, simpler, headache-free installations. Two Cat 5 cables are all you need - they do the work of six coaxial cable runs plus provide an IR pathway for source control. Balanced line technology allows for superior noise rejection and excellent picture quality. The AVX-561-NR is perfectly suited for home use, restaurant television distribution, digital signage, even retail demonstrations of HDTV.


Resolutions (Component Video)

• High definition (720p, 1080i, 1080p)
• Standard definitions (480i, 480p, 576i, 576p)

Signal Formats

• Source inputs include YPbPr, digital audio (optical and coaxial) and analog audio
• Local outputs include YPbPr, digital audio (optical and coaxial) and analog audio
• Remote Cat 5 Receiver outputs include YPbPr, digital audio and analog audio

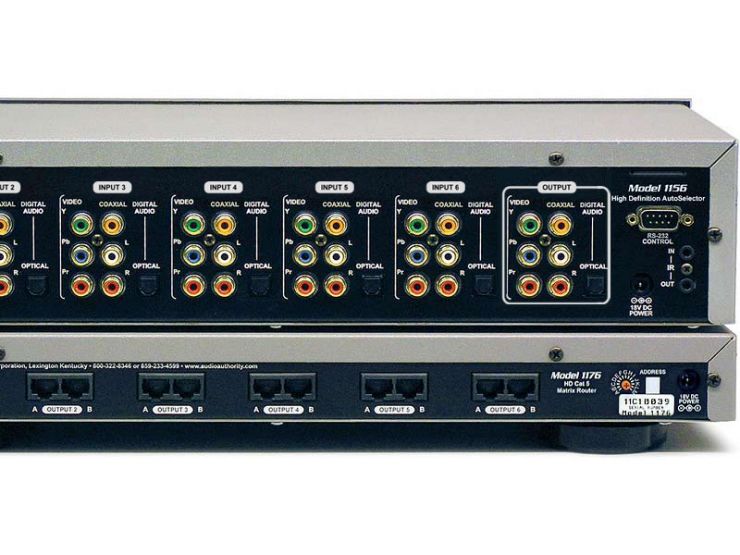

Routing Control Methods

• Front panel controls
• Front panel IR
• IR input on rear panel
• RS-232 connection on rear panel
• IR receivers connected to remote Wallplates (IR receivers and Cat 5 Receivers not included)

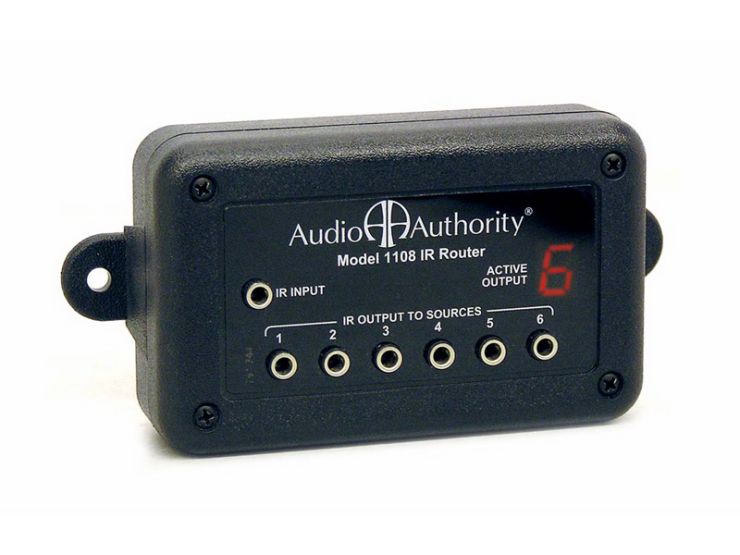

IR Router
The AVAtrix includes an IR Router, Model 1108, that is unique in the industry. The 1108 allows IR signals returned from a Wallplate to control only the source currently routed to that Wallplate output.

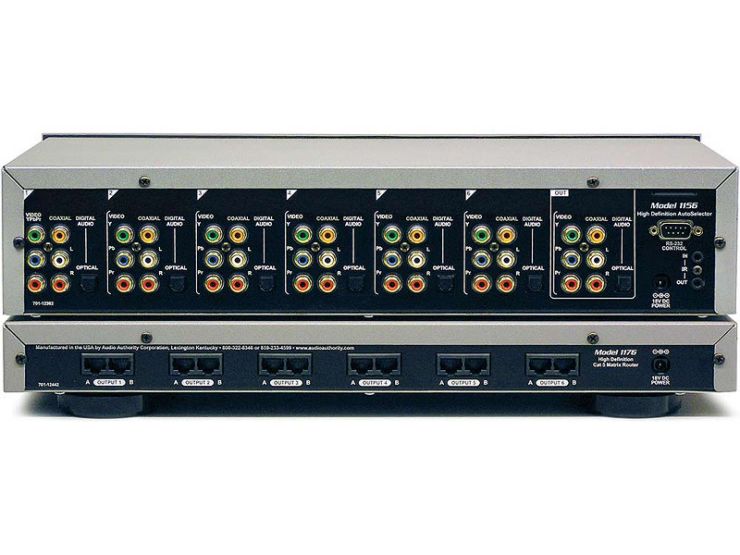

System Contents

• (1) Model 1156 HD AutoSelector
• (1) Model 1176 HD Matrix Router
• (1) Model 1108 IR Router
• (1) Model 1105 IR Remote Control
• (1) Internal Bus Connection Cable
• (2) 18V DC Power Adapters

Optional Accessories

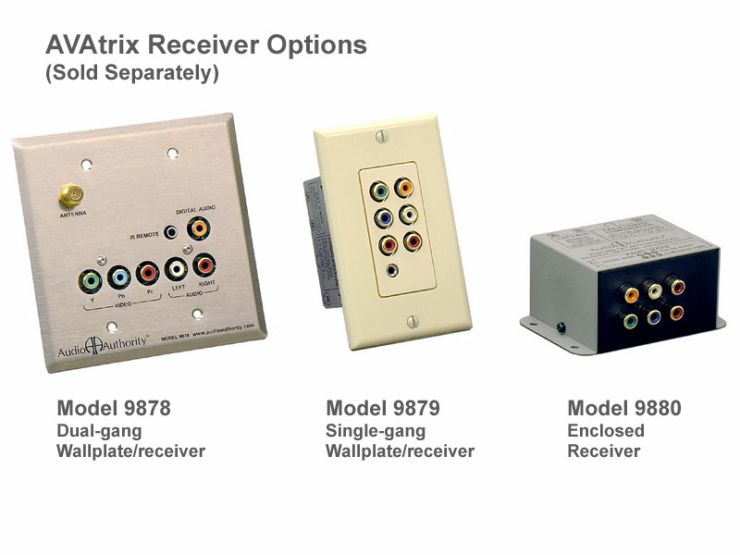

• Wallplate/Receiver alternatives include Model 9878 shallow depth dual gang Wallplate, Model 9879 Decora-style Wallplate, and the Model 9880 on-wall or in-wall Cat 5 receiver. View a Cat 5 Receiver comparison table.
• Model 1172 Audio Interface for integration with whole house audio systems
• Model 1109 IR Injector to enable in-bound or out-bound traffic on the AVAtrix Cat 5 IR pathway
• Model 1176 Matrix Router adds six additional Cat 5 outputs


Product Dimensions (inches, H-W-D)

• AVAtrix head end unit (1166+1176): 5.25 X 16.625 X 9.25 - add 0.5 to height to include feet
• IR Router: 5.375 X 2.625 X 1.3
