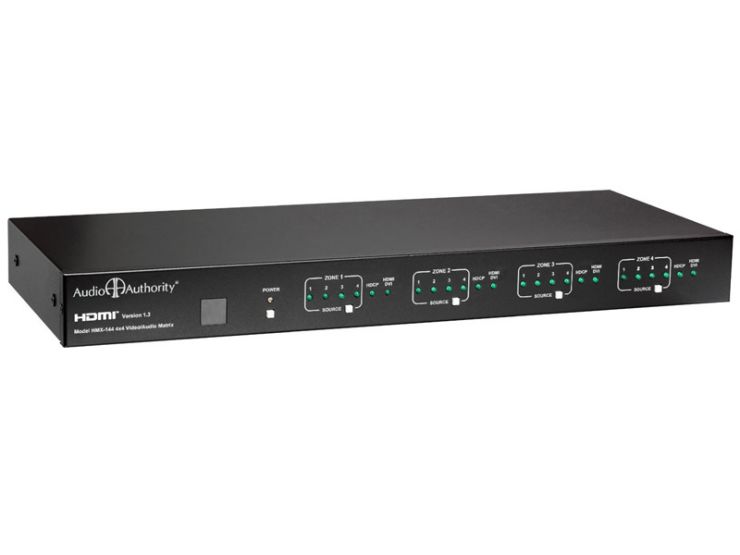

[Image for HMX-144]
HMX-144 Matrix
4x4 HDMI ver. 1.3 Matrix
Model HMX-144 - Discontinued

[]
$1374.00 USD
Key Features:
  • 4x4 HDMI version 1.3 Matrix
  • Up to 1080p HDMI video
  • Supports 30-bit Deep Color (sum of all channels)
  • Advanced Silicon Image chipsets
  • Rack mountable with included hardware
  • Control via IR, RS-232, or front panel

Categories: HDMI, Matrix Switcher, HDMI Matrix
Feedback

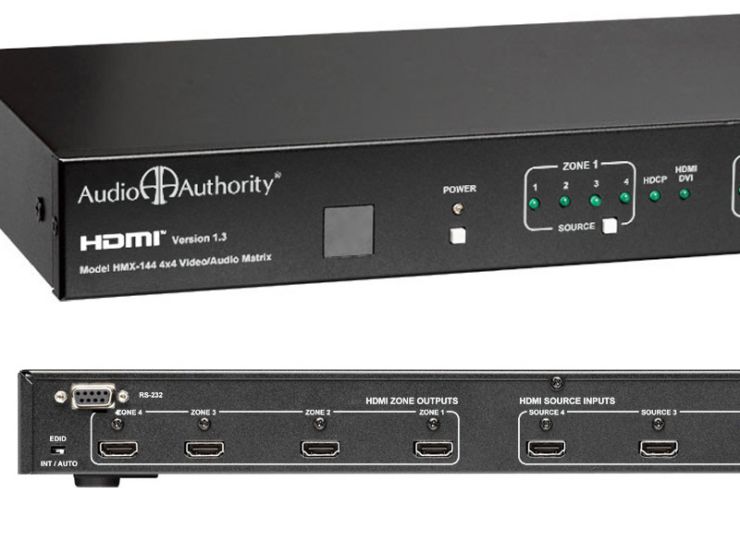

[Detail view]
Detail view

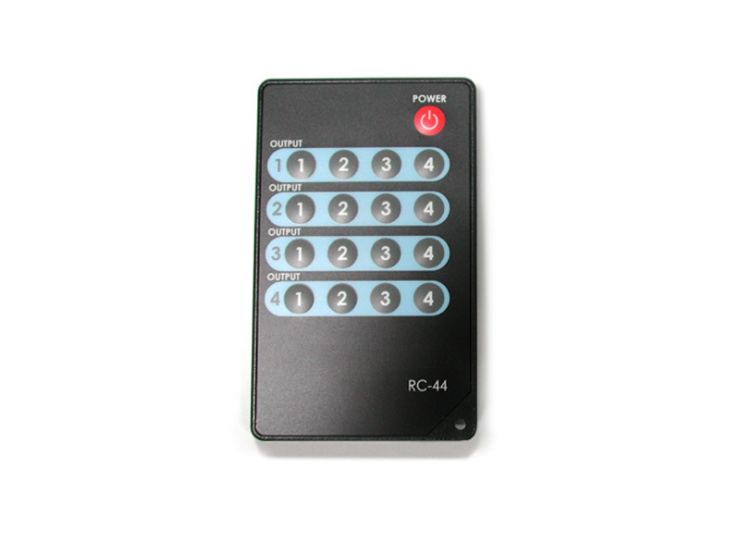

[IR remote]
IR remote

Overview

The HMX-144 stands out in a world of virtually-identical matrix systems as a highly reliable, fully tested and compliant system oriented towards small custom installations. Capable of distributing today's latest formats, including 1080p video with 30-bit deep color and lossless audio, the system also has unique features like locking HDMI cable compatibility and advanced serial controls for simple systems integration.

    Note: A discrepancy has been found in the warranty statement in some versions of the HMX-144 user manual. The warranty of the HMX-144 is one year, parts and labor.

    Features

    Key Features

    • 4-in, 4-out HDMI matrix
    • Supports deep color: 10 bits per TMDS channel (30 bit, sum of all channels)
    • Supports 480i-1080p and multiple PC resolutions
    • Supports Dolby Digital Plus, Dolby® Digital TrueHD, DTS-HD: Master Audio, and LPCM
    • HDMI version 1.3 compliant, HDCP version 1.1 compliant
    • IR remote control, RS-232 control, or front panel control
    • Accepts locking HDMI cable
    • Rack mountable with included hardware
    • IR extender included

    Video/Audio Inputs/Outputs:

    • HDMI (version 1.3): 4/4

    What makes the HMX-144 Unique?

    • ATC Certification and full HDCP Compliance: Low-cost matrix systems aren't certified, and often don't conform to the HDMI and HDCP specifications, causing interoperability problems. Our HMX-144 is formally lab certified, and field tested for maximum performance and compatibility.
    • Silicon Image chipsets are the industry's finest, and allow full HDMI ver. 1.3 performance
    • Simple control, including discrete input selection via IR, RS-232, or front panel buttons

    Specifications

    Video Parameters
    • Video Formats: 480i/p, 576i/p, 720p, 1080i/p, VGA through UXGA
    • Color Processing: 30 bit Deep Color (10 bits per TMDS color channel)
    		Audio Parameters
    • Audio Processing: Dolby, DTS 32-192fs sample, LPCM 7.1 channel
    • Multi-channel Digital: Yes
    • Frequency Response: 10-50KHz
    Miscellaneous
    • Connector Types: HDMI Type A (compatible with locking connectors)
    • Dimensions (HxWxD, inches): 1.75 x 17.2 x 6.9
    • Product Weight: 6.8 lbs
    • Shipping Weight: 7.5 lbs.
    • Data Rate: 2.25Gbps (single link)
    • Signal Processing: Compensated, clock phase adjusted
    • Jitter Processing: Reconstituted signal; jitter free
    • TMDS Clock Speed: 225MHz
    • EDID: Automatic or manual monitor discovery
    • Maximum Cable Length: Input - 20m (66 ft.) @ 1080p/8 bit; Output - 15m (49 ft.) @ 1080p/8 bit
      • Agency Approvals: FCC, CE, RoHS
    • DC Input Connector: locking type
    		In the Box
    • IR remote control
    • IR extender
    • Power Supply
    • Rack mount ears
    • Jack screws for locking HDMI ports
    • User Manual

    Downloads

    DocumentsIR Codes
    • IR Codeset: HMX-144 (CCF file)
    • Raw Hex Codes: HMX-144 (XLS file)
    • Find in Harmony's Database under "Amplifier" > "AV Switch" category.

    Frequently Asked Questions

    Q: Is the HMX-144 fully HDMI and HDCP compliant?

    A: Yes. The HMX-144 has been ATC certified as HDMI compliant, and meets all requirements of HDCP certification.
