1x8 HDMI Distribution Amplifier
1:8 HDMI Distribution Amp/Splitter
Model 1398B - Discontinued

[]
$480.00 USD
Key Features:
  • 1 HDMI input, 8 outputs
  • HDMI ATC certified and HDCP compliant
  • Supports 1080p video and lossless audio formats
  • Supports 3D content
  • CEC Auto-Reset feature for retail showroom environments
  • Compatible with today's 120 Hz and 240 Hz high definition televisions

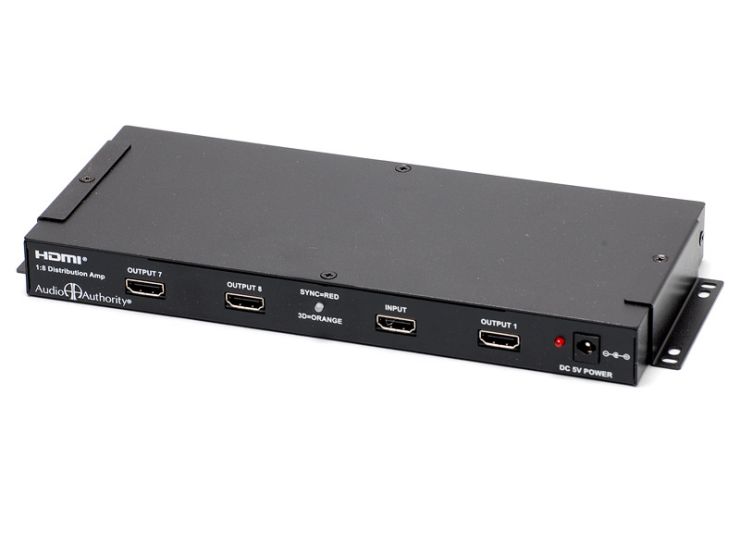

  • Mounting brackets included

Categories: Discontinued

Log in to see dealer pricing



[Brackets]
Brackets
[Controls]
Controls

Overview

Model 1398B distributes HDMI audio and video signals from one source to eight HDMI displays. Use the unique CEC Auto-Reset feature if you want to be sure that all connected video displays remain on input#1. This feature is especially useful in the retail demo environment, where customers can change inputs or turn TVs off. The 1398B sends a CEC reset command every 10 minutes to keep all TVs showing the intended content. The 1398B passes 3D signals, and indicates 3D content by an LED on each 1398B. Bitstream audio is also supported - including LPCM 7.1 channel uncompressed audio, Dolby Digital TrueHD (7.1), and DTS HD: Master Audio (7.1).  Legacy codecs such as Dolby Digital and DTS core are also supported.

  • Supports 1080p/60 and 1080p/24
  • 36 bit Deep Color (sum of all channels)
  • Dolby TrueHD and Dolby Digital Plus (bitstream throughput)
  • DTS HD and DTS HD: Master Audio (bitstream throughput)
  • LPCM Uncompressed Audio (7.1 channels)
  • Lip-sync compensation
  • Mounting brackets included
Don't Forget Cables!
Our high quality, reasonably priced, Z-Series HDMI cables are available in lengths from 6 to 50 feet.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Features

Key Features

  • CEC Auto-Reset feature can be used to keep all displays set to input 1
  • Outputs may be cascaded to create an extensive distribution network up to seven layers deep
  • HDCP keysets allow each output to work independently when connected to an HDMI display; supports automatic discovery of display EDID
  • Supports 3D content; LED indicates 2D HDMI (red) or 3D (orange).
  • Supports up to 36 bit color depth /12 bits per color (TMDS channel)
  • Supports resolutions up to 1080p@24/60Hz including 480i, 480p, 720p, 1080i, 1080p and multiple PC resolutions
  • Supports Dolby Digital Plus, Dolby® Digital TrueHD and
DTS-HD: Master Audio
  • HDMI version 1.3 compliant, HDCP 1.1 compliant, DVI 1.0 compliant
  • Maximum HDMI cable length, source to input: 15m with 1080p/8bits or 1080p/12bits resolution (using 24AWG cables)
  • Maximum HDMI cable length, output to display: 15m with 1080p/8bits or 10m with 1080p/12bits resolution (using 24AWG cables)
    Equipment used for 3D cable length tests: PlayStation 3, 40” Samsung LED UA40B700 12 bits LCD TV

    Video/Audio Inputs/Outputs:

    • HDMI: 1/8

    What makes the 1398B Unique?

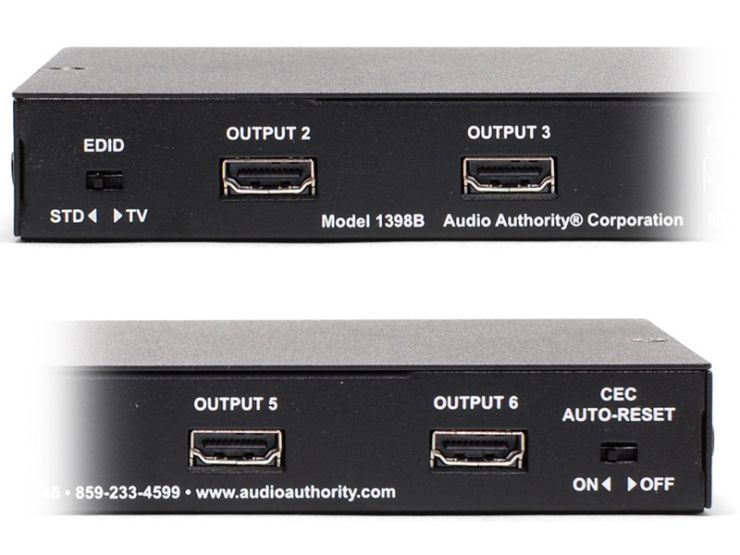

    • When activated, CEC Auto-Reset triggers a command every 10 minutes via the CEC (Consumer Electronics Control) circuit. Use this feature to keep all displays in the distribution network showing content on HDMI input#1. This feature is very useful in retail environments or anywere the public has access to TV controls, turning them off or changing inputs.
    • EDID* SWITCH:  In TV mode the 1398B reads the EDID on output 1 and records it, then allows the source to send matching HDMI signals to the other seven HDMI outputs (supports 3D). In STD mode the 1398B uses its built-in EDID, which is set at 1080p@60/12bits for video and LPCM 2Ch for audio (does not support 3D). Use this setting if there is a problem getting the source to send a signal to all of the connected displays.

    Specifications

    Video Parameters
    • Video Formats: 480i/p, 576i/p, 720p, 1080i/p, up to 1920x1200
    • Color Processing: 36 bit Deep Color (12 bits per TMDS color channel)
    • Internal signal equalization circuit
    Audio Parameters
    • Audio Processing: Lossless and uncompressed audio formats, including Dolby TrueHD and DTS-HD: Master Audio, LPCM 7.1 channel
    • Bandwidth: 20Hz to 20KHz
    • Multi-channel Digital: Yes
    • Frequency Response: 10-50KHz
    Miscellaneous
    • Dimensions (HxWxD, inches):2 x 17 1/8 x 6 1/4
    • Shipping Weight: 4.9 lbs.
    • Product Weight: 4.4 lbs.
    • Data Rate: 2.25Gbps (single link)
    • TMDS Clock Speed: 225MHz
    • Maximum HDMI cable length, source to input: 15m with 1080p/8bits or 1080p/12bits resolution
    • Maximum HDMI cable length, output to display: 15m with 1080p/8bits or 10m with 1080p/12bits resolution
    • Agency Approvals: FCC, CE, RoHS
    • DC Input Connector: locking type, 5VDC
    In the Box
    • Power supply 5V / 6A locking, USA
    • Mounting brackets
    • User manual - 12 pages, printed

    Reviews


      Frequently Asked Questions

      Q: Is the 1398B fully HDMI and HDCP compliant?
      A:
      Yes.  The 1398B has been ATC certified as HDMI compliant, and meets all requirements for HDCP certification.

      Q: How can I mount the 1398B in an equipment rack?
      A:
      Use a standard rack shelf with perforated surface to mount the unit using the included mounting brackets. No rack mount kit is available due to the 1398B form factor.
