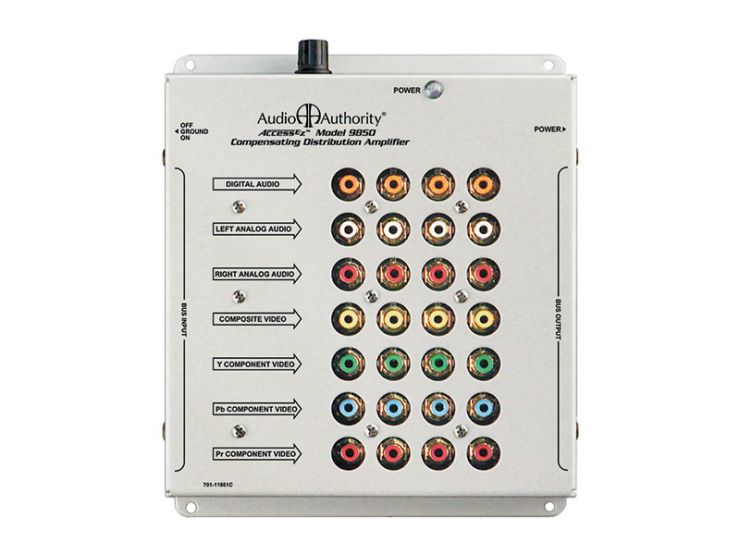

[Image for 9850]
Distribution amplifier
HD Distribution Amplifier with Buffered Bus
Model 9850 - Discontinued

[]

**This design has been discontinued, and is no longer available for purchase. We suggest the Model 1185cior 9860 Series as an alternative.**


Categories: Discontinued


[Side view]
Side view

The 9850's buffered bus and special cable length compensation circuitry eliminate common bandwidth losses associated with long coaxial cable runs. This allows bus cable runs of up to 500 feet. Additionally, the excellent isolation properties prevent other signal noise problems which degrade picture quality. You can expect excellent HDTV picture clarity and high quality digital audio in your showroom with the 9850.

  • Bandwidth over 120MHz for maximum clarity
  • Adjustable cable length compensation
  • Ground isolation switch
  • Bus-isolating circuitry
  • Two bus connection choices: RCA or F-connectors
  • Component and composite video
  • Digital and analog audio

The 9850's 7-channel wide architecture enables simultaneous distribution of digital audio, analog audio, composite video and HD component video. Multiple 9850s can be bussed together to create large distribution systems.

Product Dimensions: 6.5 x 7.5 (HxW, inches)
