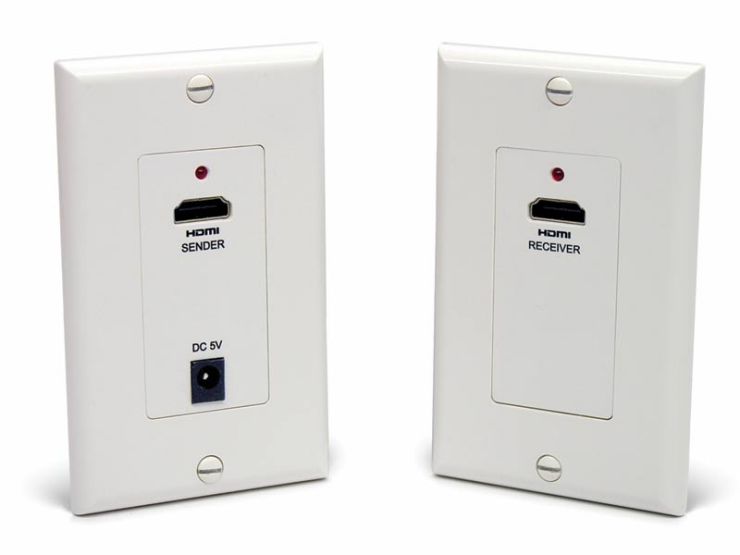

[Image for EDP-11]
EDP-11 Cat 5 transmitter and receiver
1:1 Cat 5 HDMI ver. 1.3 Extender System
Model EDP-11 - Discontinued

[]

This product is Discontinued.

The EDP-11 is an all-digital extension system that transmits HDMI signals over Cat 5 cables. Retrofit-friendly Cat 5 UTP cable helps integrators minimize installation time while extending HDMI farther than standard cabling allows.

Compatible with the newest HDMI ver. 1.3 features like Deep Color (12 bits per channel), lossless audio, and 1080p video, the EDP-11 enables maximum performance in an integration-friendly package. Maximum extension distances from 115 to 195 ft. are possible.

The EDP-11 system includes one 1384TD Cat 5 Digital Transmitter, and one 1384RD Cat 5 Digital Receiver.


Categories: Discontinued


[EDP-11 back panels]
EDP-11 back panels

This product is Discontinued.

The EDP-11 is a cost effective, all-digital, HDMI extender system, compliant with HDMI version 1.3 specificaitons.  Delivering video at resolutions up to 1080p/60, along with high-bitrate audio codecs such as Dolby TrueHD and DTS:HD Master Audio, the EDP-11 transmits HDMI signals further than is normally possible over two Cat 5, Cat 5e, or Cat 6 cables.  Distribution distances of 115-195 feet are possible, depending on video resolution and refresh rate, and the type of cable used.



Features:

  • Resolutions to 1080p @ 60Hz,1920x1200
  • HDMI version 1.3 compliant, HDCP 1.1 compliant
  • Data Rate: 2.25 Gbps
  • TMDS Clock Speed: 225 MHz
  • Operation requires two Cat 5, 5e or Cat 6 cables (Cat 6 is recommended for longest distribution distances)
  • Automatic EQ optimizes digital signals for maximum integrity and performance
  • Maximum resolutions: 1080p @ 60Hz, 1920x1200
  • Supports 480i, 480p, 720p, 1080i, 1080p and multiple PC resolutions
  • Power for both wallplates supplied at transmitter location
  • Maximum distance using Cat 5e cable: 115 ft (1080p) or 130 ft (1080i)
  • Maximum distance using Cat 6 cable: 145 ft (1080p) or 195 ft (1080i)
  • White DecoraŽ-style trim plates included



HDMI Version 1.3 Features Supported:

  • Resolutions up to 1080p, including 1080p/24 and 1080p/60
  • Deep Color video: 36 bit color depth (12 bits per TMDS channel)
  • High bitrate audio, including Dolby TrueHD, DTS-HD: Master Audio, and Dolby Digital Plus



To the Home Owner
While the EDP-11 is ideal for new construction or an existing home, it does require special knowledge and tools to install. We suggest you contact a local custom home installation specialist. Many installation specialists are members of the Custom Electronic Design & Installation Association and can be located through the CEDIA website.



Dimensions (H-W-D, inches):

  • 1384TD: 4.5" x 2.75" x 1.25"
  • 1384RD: 4.5" x 2.75" x 1.25"
