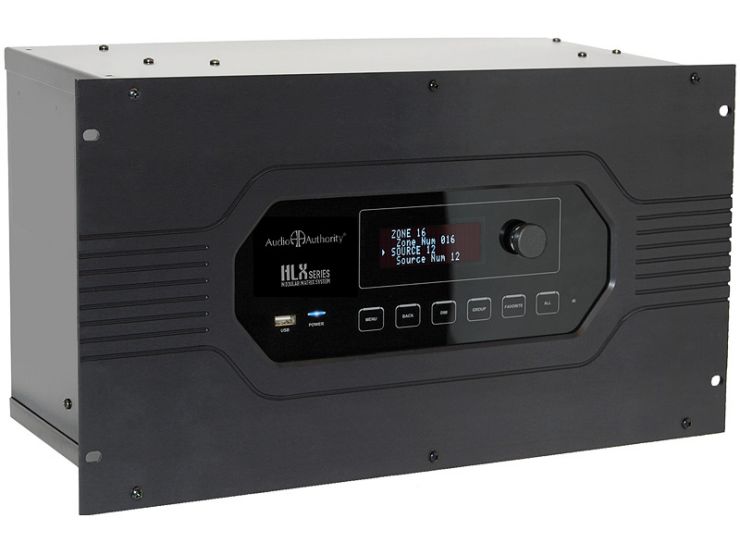

HLX Series matrix switch front panel
HLX Modular Audio-Video Matrix
HLX Series - Discontinued

[]
Key Features:
  • Capacity: 16*x80, 12x88, or 8x96 (Configure)
  • Component video, digital audio, analog audio
  • Ethernet, serial or IR control compatibility
  • Independent audio and video switching
  • Restrictions can be added to protect private sources
  • Integrated IR routing for source and switching control
  • Video range: up to 1,000 feet over two Cat 5e/6 cables


Categories: HLX, Distribution, Distributed Audio, Component Distribution


[Configuration]
Configuration
[Front detail]

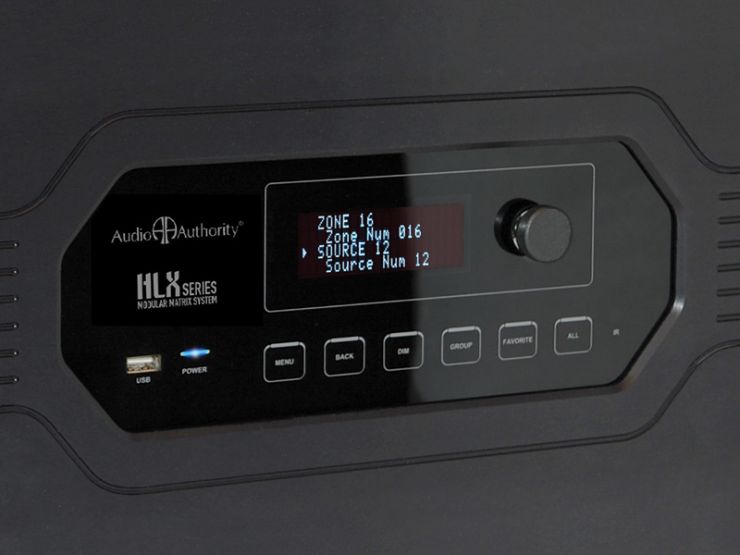

Front detail
[Receivers]
Receivers

Overview

The HLX™ System is easy to configure to your exact requirements. It distributes HDTV signals up to 1,000 feet away to convenient zone receivers mounted wherever televisions are to be located. For audio systems, the HLX offers DSP and volume control per output (more about HLX for audio). Optional audio zone cards feed multi-channel amplifiers to distribute music to zones. Its robust back plane design allows up to 12 sources to distribute component video up to 1080p, along with analog stereo audio, digital coaxial audio, and digital optical audio. Four audio sources may be added, for a total of 16 source inputs. The new HLX offers a winning combination of performance, value, and unique features.
  • Custom configurable matrix (try the HLX Configurator)
  • Source inputs from 4 up to 16*
  • Zone outputs from 8 up to 96
  • Easy DB-25 audio connection to SF-16M amplifiers via audio output card (2278)
  • Compatible with Ethernet, serial, or IR control systems
  • Video output range: up to 1,000 feet
  • Three different Cat 5 zone receiver styles
  • Designed and manufactured in Lexington, Kentucky, USA

* See guidelines and limitations for 16 source configurations.



D I Y ?  The HLX was designed with professional installers in mind. We advise you to contact a custom integrator in your area for assistance.




Configure your HLX

build-HLX

Configure

Note: Some elements are discontinued.

Features
  • Integrates seamlessly with third-party control systems from Control4, URC, RTI, and more
  • Distributes video and audio up to 1,000 ft. over two Cat 5e/6 cables
  • Five Cat 5 zone receiver options available - see Cat 5 receiver comparison table
  • Digital Signal Processing per zone output (available with Models 2214 and 2278 output cards)
  • Breakaway switching (switch video and audio independently) see the video below
  • Restrictions control each zone's access to sources
  • Specially designed 2-way IR routing system
  • Simple, PC-based setup
  • One-step USB firmware updates
  • Industrial rack mount design featuring a 6-card cage and heavy duty internal power supply
  • Integrated modular power supply
Inputs/Outputs
  • 12 audio/video inputs maximum*
  • 96 audio/video zones maximum (maximum depends on exact HLX configuration)
  • Component video (YPbPr)
  • Digital audio (coaxial and optical)
  • Cross-Converts digital audio - digital coax and optical sources are converted and output as both formats simultaneously
  • Analog stereo audio including DB-25 audio connection to SF-16M amplifiers via audio output card (2278)
Control Interfaces
  • Ethernet port for receiving serial commands via telnet
  • Serial port for receiving RS-232 serial commands
  • Front panel IR receiver
  • Rear panel IR jack (3.5 mm jack)
  • IR input on each zone receiver (3.5 mm jack)
  • Front panel capacitive touch buttons and knob



* See guidelines and limitations for 16 source configurations.

 HLX System Components:

Card Cages
2006 6-slot Primary Card Cage
2014 4-slot Expansion Cage

Source Cards
2114 4-in HD Video/Audio Source Card
2124 4-in SD Video/Audio Source Card
2174 4-in Audio Source Card

Zone Cards
2248 8-out Dual Cat 5 HD Zone Card
2214 4-out HD Video/Audio Zone Card
2278 8-out Analog Audio Zone Card 2100 HLX Blank Card Cover

Cat 5 Zone Receivers
9878 Dual Cat 5 Stainless Wallplate
9879 Dual Cat 5 Decora Wallplate
9880 Dual Cat 5 Box-style Receiver




build-HLX

Get an instant quote on a custom HLX




Specifications
Video Parameters
  • Video Formats: 480i/p, 576i/p, 720p, 1080i/p
  • Input/Output Impedance: 75 ohms
  • Input Ground Isolation: No
  • Gain: 1
  • Gain Accuracy: 2%
  • 3dB Bandwidth: 150MHz
  • Input Coupling: AC
  • S/N Ratio: 61dB
  • Max Gain/Equalization: 1.00 gain
Audio Parameters
  • Input Impedance: 75 ohms/50K ohms
  • Min Load Impedance: 75 ohms/10K ohms
  • Multi-channel Digital: Yes
  • Frequency Response: 10-50KHz
  • S/N Ratio: 72dB
  • THD+Noise: 0.03%
  • Crosstalk: 75dB
Miscellaneous
  • Connector Types (Input): RCA (YPbPr, analog audio, digital coaxial audio), Toslink (digital optical)
  • Connector Types (Output): Dual RJ-45 (6 Cat 5 matrix outputs)
  • Dimensions (HxWxD): 10.25 x 17.20 x 7.62
  • Rack Height: 6U
  • Net Product Weight: 23.8 lbs.
  • Shipping Weight: 28.7 lbs.
  • Agency Approvals (HLX): ETL, FCC
  • Agency Approvals (Internal Power Supply): UL
  • DC Input Connector: 5.5 x 2.1mm
  • DC Input Voltage/Polarity: 18V/Center Positive
  • Max DC Input Current: 1.9AmA (1.0A with no Cat 5 Receivers)
  • Heat Output: 62 BTU/hr
In the Box
  • HLX assembly including card cage and input/output cards
  • AC power cord
  • User Manual

Downloads



Frequently Asked Questions

   See Also the HLX Knowledgebase

Q: How can I order a specific HLX configuration?

A: Use the HLX Configurator to design a custom HLX, then call with your order. Custom configurations are shipped fully assembled and tested.

Q: Can I use just one Cat 5 cable to zones that require component video with no audio or IR?
A:
Yes, if you use a Model 1110 adapter, any HLX dual Cat 5 output can feed a Model 1180R or 1180RD single-Cat 5 zone receiver. These receivers offer component video and digital audio, but no IR pathway, and no analog audio connections.

Q: Why doesn't the HLX include a remote control?
A:
The HLX is a professional grade matrix, designed for integrated systems that use a comprehensive control system such as Control 4, Cinemar, RTI, Crestron, or URC. If you are not comfortable with this level of programming, check the CEDIA website for a custom integrator in your area.

Q: What are the main differences beween the HLX and the AVAtrix?
A:
The AVAtrix was a very effective system for small matrix applications, but the HLX provides many advantages over the AVAtrix in capacity and design. The HLX has a maximum capacity of 12 sources, compared to the AVAtrix maximum of six. The HLX offers Ethernet control, and many other features not available on the AVAtrix. See a detailed comparison here.

Q: Do you offer an iPad app for ZQ?
A:
We no longer support a Command Fusion template, but all HLX commands are available in the HLX User Manual HLX User Manual [View] (7.95 MiB) for use with Command Fusion, iRule, or any similar software.

Q: Can I configure the HLX for 16 source inputs?
A:
Yes, see guidelines and limitations for 16 source configurations.



Accessories

Recommended Accessories

Note: Some elements are discontinued.

Use the instant configurator for a custom quote that includes the input and output cards listed below.


build-HLX

AV Input Card

HD Source Card for HLX Modular Matrix
Model 2114

Four input Component Video source card for HLX Modular Matrix systems. Ideal for all YPbPr high definition sources. Includes digital and analog audio inputs including Tos-link.

SD Input Card

SD Source Card for HLX Modular Matrix
Model 2124

Four input Composite Video source card for HLX Modular Matrix systems. Ideal for adding security cameras and other standard definition sources to the HLX high definition video network. Includes digital and analog audio inputs.

Audio Input Card

Audio Source Card for HLX Modular Matrix
Model 2174

Four input stereo analog audio source card for HLX Modular Matrix systems. Ideal for all analog audio sources.

AV output card

HD Zone Card for HLX Modular Matrix
Model 2214

Four-output Component Video zone card for HLX Modular Matrix systems. Ideal for nearby Component Video zones, such as multi-screen theaters and game rooms. Includes digital and analog audio outputs including Tos-link.

Cat 5 AV output card

HD Zone Card for HLX Modular Matrix
Model 2248

Eight position Cat 5 output zone card for HLX Modular Matrix systems for use with Dual Cat 5 zone receivers. Two-way IR routing with optional 12 volt power.

Audio output card

Audio Zone Card for HLX Modular Matrix
Model 2278

HLX audio zone card with eight 2-channel zone outputs. Audio switching plus DSP features such as 10-band EQ, volume, tone, and balance controls.


Receivers

Cat 5 receivers are required for system installation. Receiver styles include Model 9878 shallow-depth, dual-gang wallplate, Model 9879 Decora-style, single-gang wallplate, and the Model 9880  on-wall or in-wall Cat 5 receiver.

View a Cat 5 receiver
comparison table.


Single Cat 5 Receivers (Discontinued)

Our single Cat 5 receivers offer the same great quality component video but require only ONE Cat 5 cable.
Model 1110 adapts the dual Cat 5 output of the AVAtrix to work with single Cat 5 receivers. Digital audio pathway included. Model 1180RD is the Decora-style, single-gang wallplate, and the Model 1180R is the on-wall or in-wall receiver.





Related Products

Model 9878
[9878 Wallplate]
Dual Cat 5 Stainless Wallplate Receiver
Model 9879
[9879 (Decora trim cover not included)]
Dual Cat 5 Single-Gang Wallplate Receiver
Model 9880
[Cat 5 Receiver]
Dual Cat 5 Surface-Mount Receiver
Model 2014
[HLX Expansion cage for zone cards]
HLX 4-Slot Expansion Card Cage
Model 1110
[1110 2-to-1 Converter]
2-to-1 Cat 5 Converter
Model 1180RD
[1180RD Cat 5 Receiver]
Single Cat 5 Component / Digital Audio Wallplate Receiver
Model 1180R
[1180R Single Cat 5 Receiver]
Single Cat 5 Component / Digital Audio Receiver
Model SF-16M
[SonaFlex Series Matrix Amplifier]
16 Channel Matrix Amplifier with FlexPort Inputs
