 White Lightning Mini-GPU
New Mini-GPUs
Coming this Fall

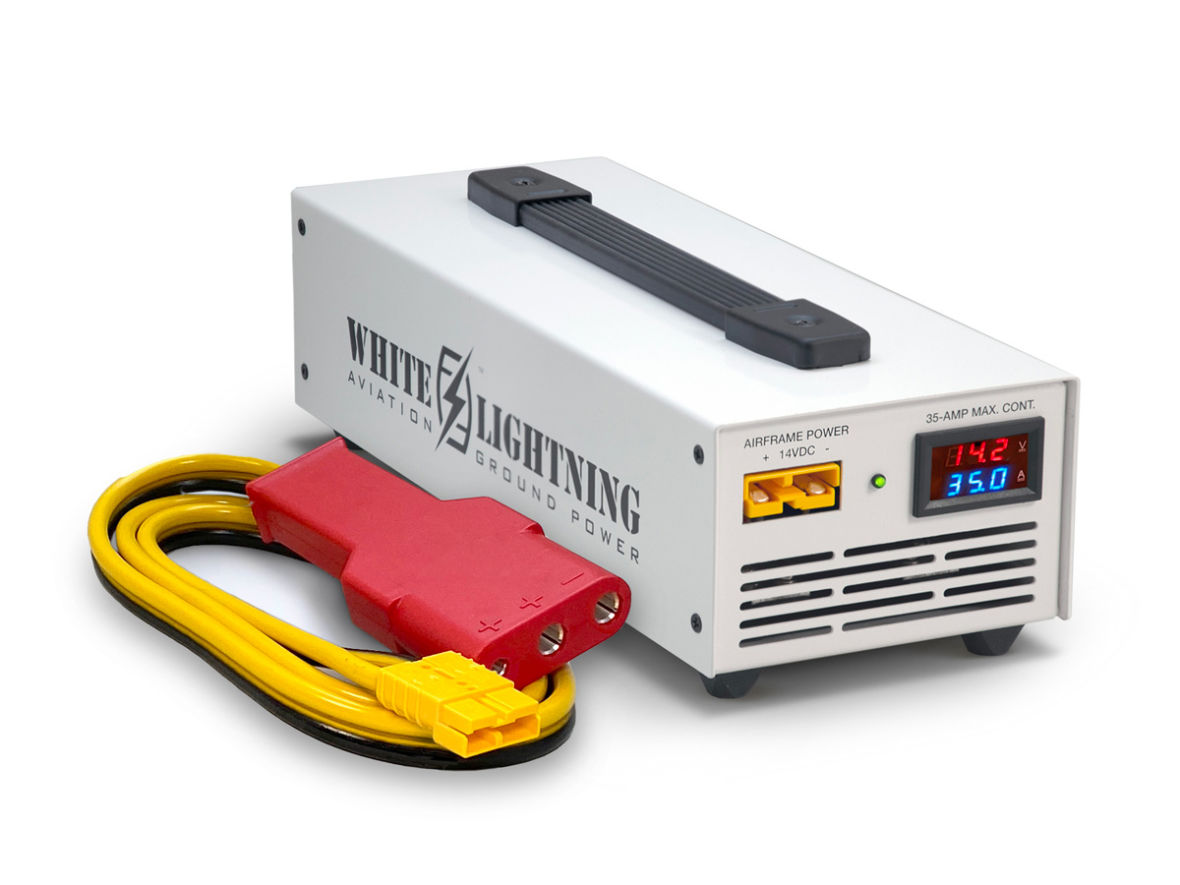

[Image for M1435]
35A 14V Ground Power Unit
35 Amp 14 Volt Aviation Ground Power Unit
Model M1435 - Pre-order - Fall delivery

[Buy Online]
$495.00 USD
    • Dual digital output meters, volts & amps
    • Overload alarm and auto-shutdown sequence
    • 6' GPU output cable with yellow SB50 / 3-pin oval
    • Universal Input: 90-230 VAC  10A 50-60Hz.
       ALSO AVAILABLE FROM OUR DISTRIBUTORS:
    Aircraft Spruce - GPU details         Sporty's Pilot Shop
    Categories: Aviation Mini-GPU, Aviation

    Log in to see dealer pricing



    [Rear view]
    Rear view
    []
    []
    []
    []

    Attention: FBOs, dealers, shops & OEMs -- Call 800-322-8346 or e-mail Audio Authority for quantity purchase information.



    Safe, Affordable, Airframe Power for Experimental/Amateur-Built Aircraft

    Our M-Series Mini-GPUs achieve a remarkable 88% efficiency to provide up to 35A of power at 14.25 volts DC, perfectly replicating the in-flight electrical environment. Its cool running, switching-mode power modules provide massive amounts of stable, noise-free power, compatible with input voltages from all over the world. It will continuously power the most delicate avionics and airframe systems without risk of depleting the ship’s battery or causing costly damage.

    The Model M1435 comes with a 8’ airframe output cable with yellow SB50 connector that protect from damage due to accidental voltage mismatch. The AN2551 3-pin oval plug connects to the aircraft.




    GPU Features

    • Output: 14.25 VDC, 35 Amps maximum continuous
    • Input: Universal, world-wide, 85-264 VAC, 47-63 Hz
    • Switching Mode Output Module with automatic self-protection for short circuit / overload / over voltage / over temperature
    • Digital output meters for both voltage and amperes
    • Includes detachable input and output cables
    • 6-ft airframe output cable with yellow SB50 plugs signify 12/14V operation only and lockout red 24/28V plugs to protect from voltage mismatch.
    • Compact, lightweight design utilizes highly efficient digital switching-mode power modules for voltage stability and long-term reliability





    Specifications

    • Output: 14.25 VDC, 35 Amps maximum continuous
    • Input: Universal, world-wide, 85-264 VAC, 47-63 Hz
    • Unit weight: 8 lbs (without cables) shipping weight: 11 lbs.
    • Carton size: 16 x 10 x 6 inches
    • Unit size: 13.4 x 5.32 x 4.13 inches


    IMPORTANT DISCLAIMER & OPERATING LIMITATIONS

    Audio Authority® authorizes this device for use ONLY by aviation professionals, such as licensed pilots and maintenance technicians, knowledgeable about their aircraft electrical system and batteries. Aircraft electrical systems vary widely, especially among amateur-built experimental aircraft. The operational concepts, recommendations, and instructions presented in our manuals are necessarily general and make assumptions that do not apply to every aircraft, and may not be correct for your particular aircraft. Incorrect use of this device has the potential to damage the GPU and/or aircraft components. It is the operator’s responsibility to read completely and fully understand this manual, plus those sections of the Aircraft Flight Manual and Maintenance Manual that pertain to their aircraft’s electrical system design, to determine the appropriate use of this, or any, external power source. If you cannot do this, do not use this product. Instead, consult the airframe manufacturer or a technician familiar with your specific aircraft type and configuration before connecting the GPU to your aircraft.



    The Model M1435-EXP provides 14-volt DC power for:

    • avionics demonstration and testing
    • database and firmware updates
    • flight planning and cockpit procedures training
    • troubleshooting & maintenance
    • battery top-off charging
    • powered pre-flight inspections


    Frequently Asked Questions

    Q: Can I use the M1435 to start an aircraft engine?

    A: The M1435 GPU is inadequate for piston and turbine engine starting and should be used for airframe systems power only.

    Q: How does the M1435 connect to my aircraft?

    A: The Model M1435 Mini-GPU includes a 6’ output cable with yellow SB50 plugs on each end, connecting between the GPU and the aircraft. An airframe interface kit containing another yellow SB50 plug, contact lugs, and a protective cover is also included with the product. The builder mounts this plug near the battery solenoid or airframe ground (not directly to the battery) and wires a fused connection to the plug.

    Q: What if I need a longer output cable for my situation?

    A: The 6’ output cable, with yellow SB50 plugs on each end, can be extended/doubled by plugging another output cable onto it. These are available as a replacement part. Contact Audio Authority tech support for assistance.

    Q: Can the M1435-EXP be used with certified aircraft?

    A: Yes, the Model M1435 Mini-GPU is compatible with certified aircraft that have a 12V battery and a 14V electrical/charging system. However, its output cable is incompatible with the external power receptacle on certified aircraft. You must purchase a different output cable with the appropriate plug.

    Q: Can I use the M1435 to charge my battery?

    A: The Model M1435 Mini-GPU is not designed for long-term battery charging. It has no circuitry for monitoring the battery’s state of charge or determining the precise charging voltage for various battery conditions and ambient temperature. So, the general answer is no. However, for short periods of time (an hour or two), the GPU’s output can be used to “top-off” the charge of a battery that is NOT serverely discharged. This is particularly useful during a powered preflight, allowing the pilot to take his/her time to check every airframe system and lights for proper operation without depleting the starting battery.

    To optimize battery capacity and reliability, we highly recommend full-time, maintenance charging desulfation, and recovery. Our preference is the aviation-specific BatteryMINDer products by VDC Electronics. The BatteryMINDer is designed to remain connected for long periods of time, and will never overcharge or damage your battery.

    Q: Does the GPU work outside North America?

    A: Yes, the input voltage and frequency ranges are very wide and universal for worldwide operation: 85-264 VAC, 47-63 Hz. The AC cord supplied is a North American grounded 5-15, which can be adapted, or replaced with an appropriate cord, sourced locally.
