[Image for 1502L]

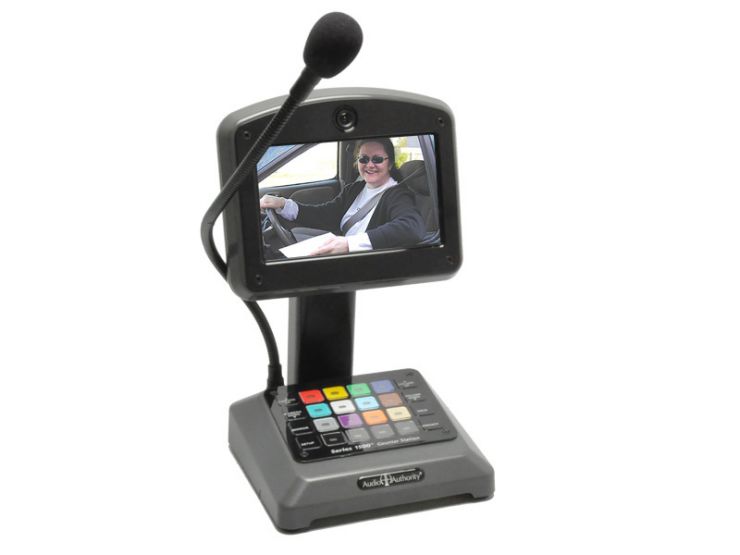

Model 1502L Video Interface
2-Way Video Interface for 1500A
Model 1502L

[]
  • Video camera calibrated for indoor lighting
  • High-res, high contrast, LCD screen
  • LED backlight display requires less power
  • Height adjusts from 12 inches to 15 inches tall
  • Tilt control adjusts lane camera for vehicle height

Categories: Intercom, Counter Station


[Installed]
Installed

The 1502L offers a 480i LCD screen for detailed, life-like visuals, with an LED backlight that uses less power. The camera performs well in challenging indoor lighting scenarios, even with direct glare from fluorescent lights, presenting a pleasing image to customers.  It's easy to adjust the height of the video screen for use on a high counter, or a low desk, and the tilt can be adjusted to aim the camera, so that the user's face is well positioned. The camera is located close to the video screen for natural looking video communications where eye contact is important.

Upgrading an Audio-Only System
Any Series 1500 audio Counter Station can easily be upgraded to an audio/video Counter Station with a Model 1502L Video Interface.The 1502L connects to 1500A, 1500 (with bracket), and 1533 via one Cat 5 cable.


Specifications

Counter Station Dimensions with Video Interface:
  • Height, extended: 14.75" (375mm)
  • Height, retracted: 12.32" (313mm)
  • Depth: 8.66" (220mm)
  • Width: 9.5" (240mm)
Camera and Aux Video Inputs:
  • Input Impedance: 75 Ohms unbalanced
  • Ground Isolation: 200 Ohms
  • Input Signal Level: 2 volts p-p max
Monitor Video Outputs:
  • Output Impedance: 75 Ohms unbalanced
  • Bandwidth: 30 MHz, +/- 3 dB
Power:
  • Input Power Requirement: 12 volts DC at 1 amp (via Cat 5 cable)
