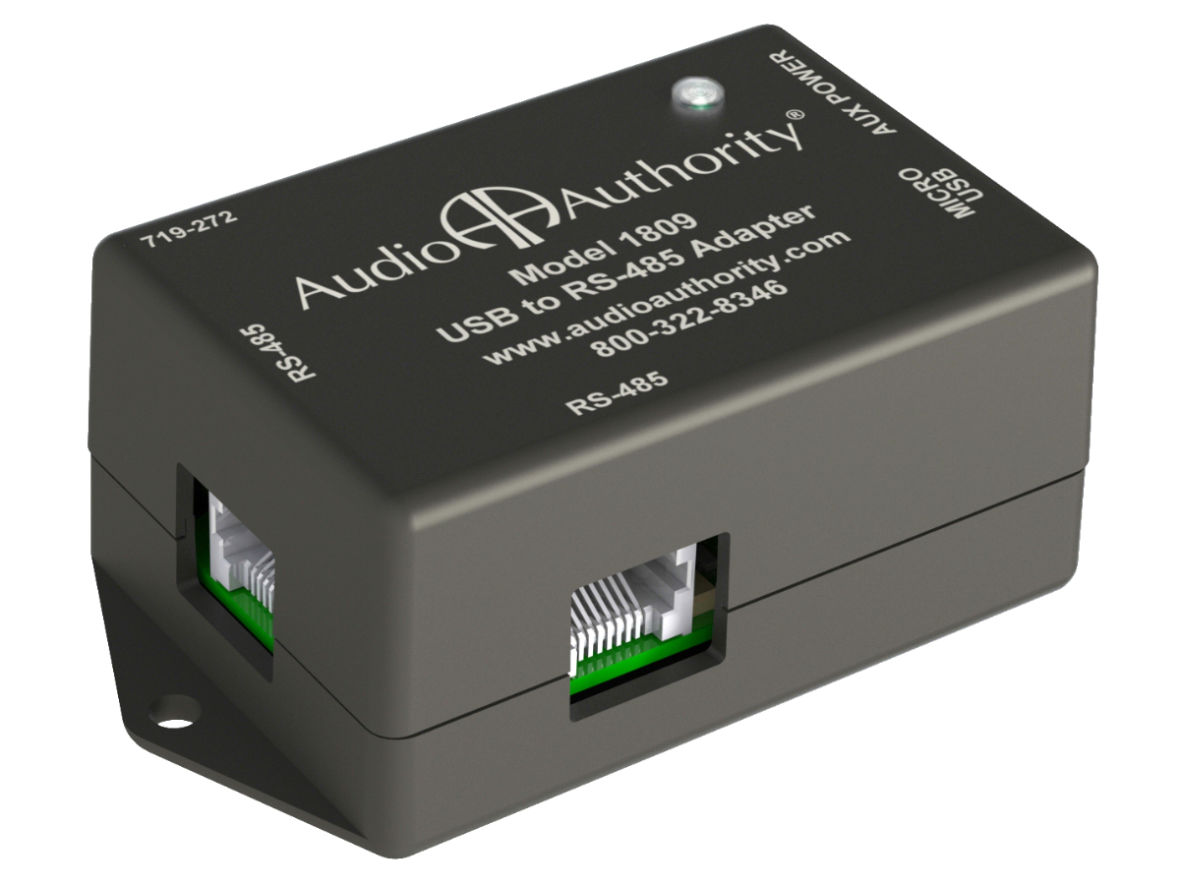

[Image for 1809]
Connect USB devices to RS-485 bus
RS-485 - USB Interface
Model 1809 - New!

[]

Features:

  • Converts RS-485 to USB
  • Control devices via RS-485 network
  • Power via USB or AC power adapter

Categories: Interactive Switching, Accessories, Control Converter, Modules

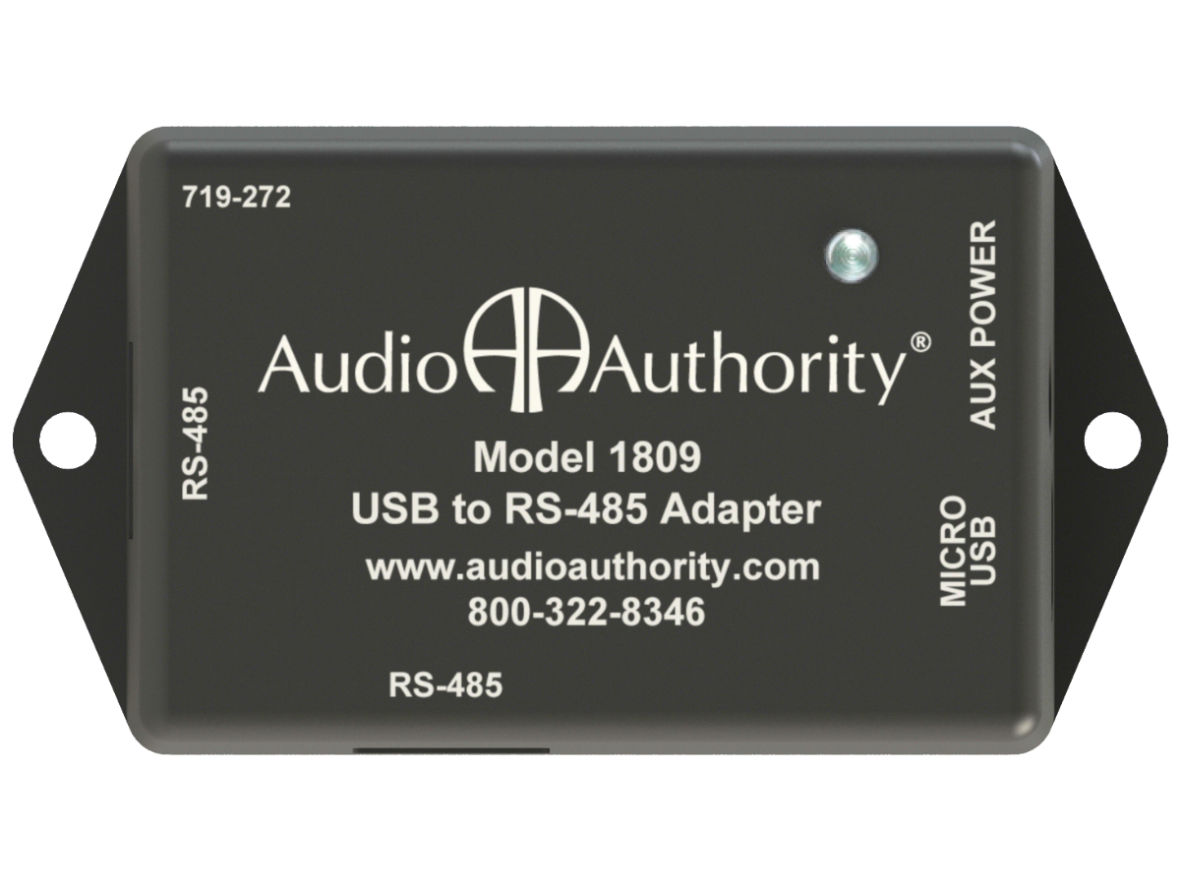

[Top view]
Top view


Operate a USB Device on an RS-485 Network

The Audio Authority® 1809 provides a communication pathway between RS-485 devices and a USB controller such as a BrightSign media player.

brightsign-xd

BrightSign®

Authorized Partner

Wire map

Example System

The 1809 provides a link between the BrightSign player's USB port and multiple switch modules and control panels, all connected via RS-485 bus. In this system, a button press on a TS04 touch panel on the display triggers these simultaneous actions: a specific video track begins to play on the video screen, audio plays through the speakers, and the active product on display is lit up by an LED strip.
