Touchscreen Control Panel for Access
Access Model 903i Comparator - DiscontinuedKey Features
Categories: Interactive Switching
- Control any Access system
- Multiple Product Groups
- Up to 99 products per group
- A/B system comparison
- 10" touchscreen (diagonal)
- Tough steel bezel
- Optional lockout feature
Categories: Interactive Switching
Easy Touchscreen Control

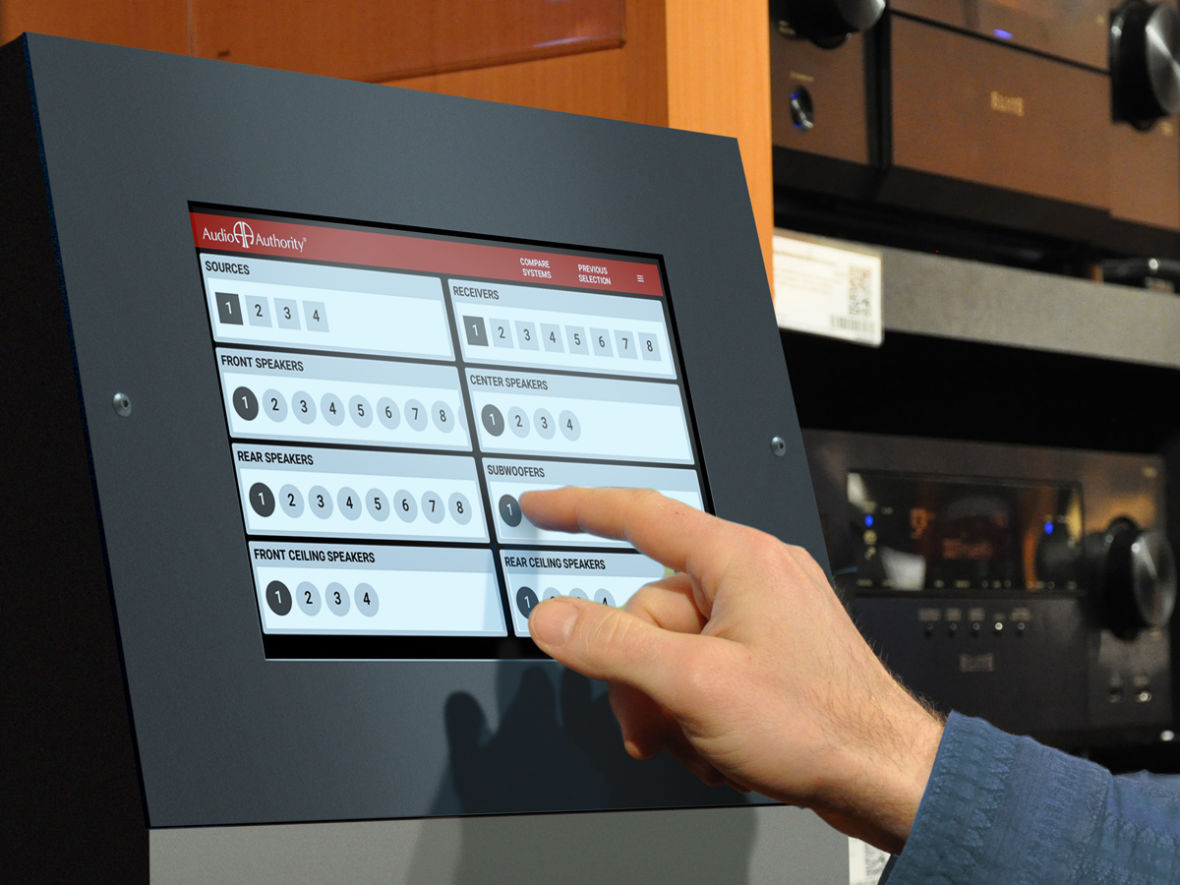

This touchscreen Comparator can be used for any Access™ switching system including home theater and car audio applications. Features capacity for multiple product groups, custom product group names, A/B comparison, and pass-code lock to prevent tampering. Learn about the 903i A/B comparison function.Features:
- Auto-setup allows immediate plug-and-play - no setup necessary
- Easily enter your own names for product groups
- Each product group "card" lets you swipe to see more product selections
- Compare Systems mode presents dramatic side-by-side comparison
- Pass-code protection for setup features
- Activate the lockout feature to prevent customers from using the system without supervision
- Tough steel bezel
- Connects to any vacant System Bus port (via included USB adapter, Model 1809)
- Includes 12V 1.5A power supply (replacement supply is 571-043 or equivalent)
The Access System is unique in that the different modes of product selection may be used in the same system. This means that your system could contain a 903i Comparator, 906 Control Panel, and product select buttons. You can also disable the PSBs when you lock the 903i to prevent tampering.
Installation Tip:
The Android operating system may generate a pop-up message within the first few times you reboot the tablet. Check the box and hit OK.
![]()
See the 903i Comparator in action in this two-minute video introduction.
Dimensions (inches)
- Steel bezel: 12.75 x 9 x 1/16
- Inner bezel opening: 7.086 x 5.98
- Screen area (WxH): 8.5 x 5.25
- Mounting cutout: 11.5 x 7.75*
- Total depth: 1.625
*A notch may be necessary to accommodate the USB plug along the top right edge of the display.
Downloads
- Firmware
- 903i firmware v1.6.0
(1.36 MiB) 903i Comparator firmware update version 1.6.0 - added December, 2017. See <a title="903i firmware update instructions" href="https://youtu.be/DWgNQsDLE8k">update instructions</a>.
- 903i firmware v1.6.0
- Literature
- 903i Focus Sheet
332.09 KiB Touchscreen Comparator Focus sheet.
- 903i Focus Sheet
- Manuals
- 903i-A template
268.51 KiB Style 903i-A mounting and drill template - print at 100%.
- 903i User Manual
1.35 MiB Touchscreen Comparator User Manual. Updated 2023.
- 903i bezel dimensions
37.96 KiB Steel bezel dimensions.
- 903i-A template
