[Image for BM-AIK2A]

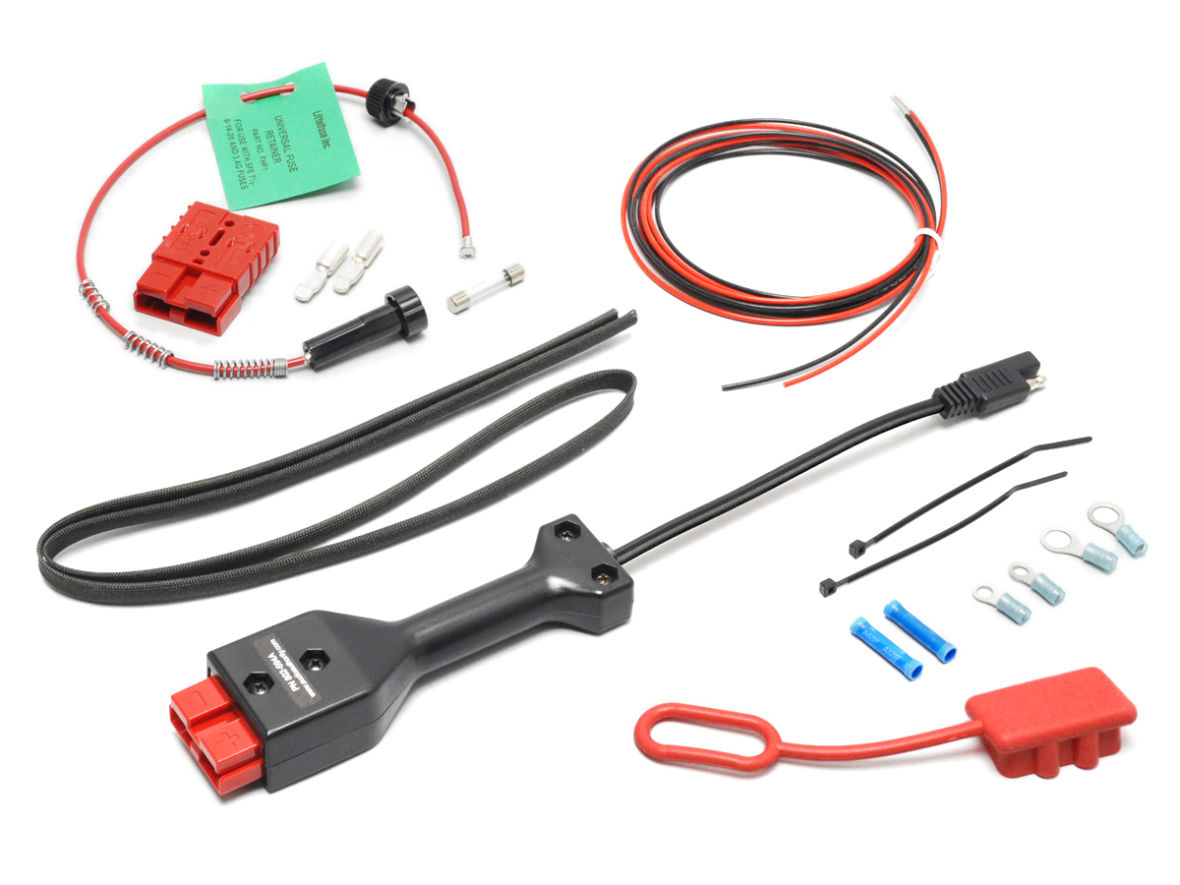

BatteryMINDer Interface Kit Contents
Airframe Interface Kit for Certified Aircraft
Model BM-AIK2A - Improved!

[Buy Online]
$69.95 USD

Kit to adapt aviation-specific BatteryMINDers for use with FAA-certified aircraft. Compatible with original, and current CEC1 series BatteryMINDer chargers (8A or less*). See BM-AIK1 for use with GPU integrated BatteryMINDer.


Key Features:

  • Quick connect battery charger harness kit
  • Aviation grade components for FAA-certified aircraft

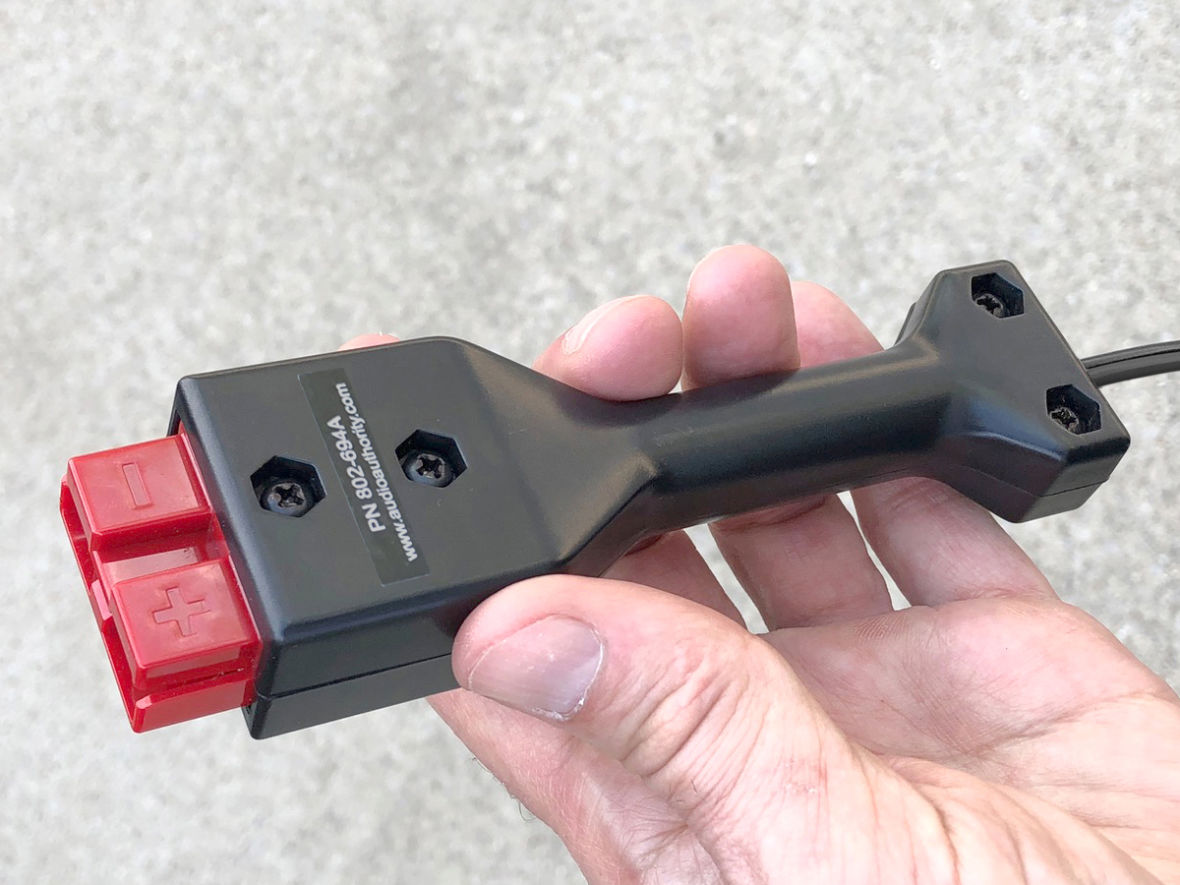

  • Adapts BatteryMINDer® SAE plug to Anderson SB50
  • Rugged handle with strain relief
  • No FAA field approval or Form 337 is required
  • Certified mechanic can install and return to service

Categories: Aviation BatteryMINDer, Aviation Accessories, Aviation

Log in to see dealer pricing

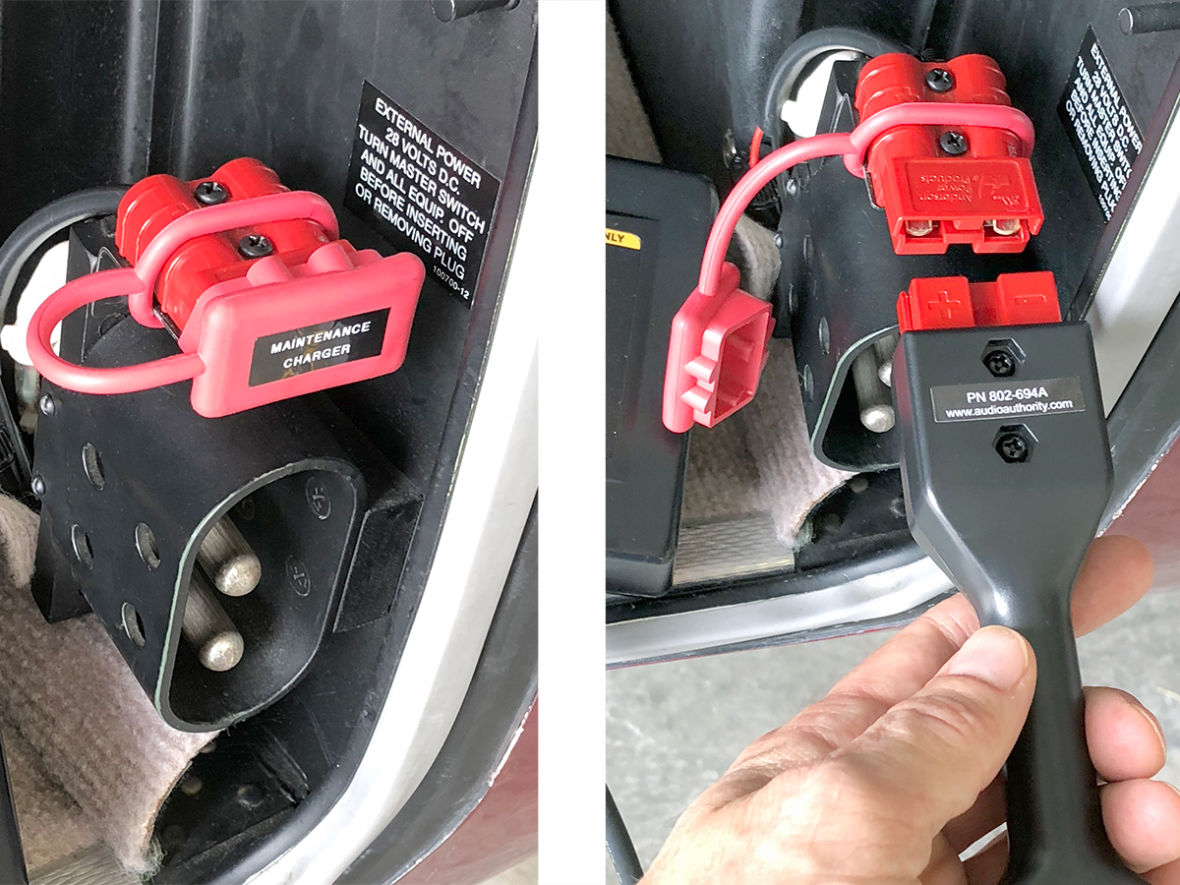

[Installed]
Installed

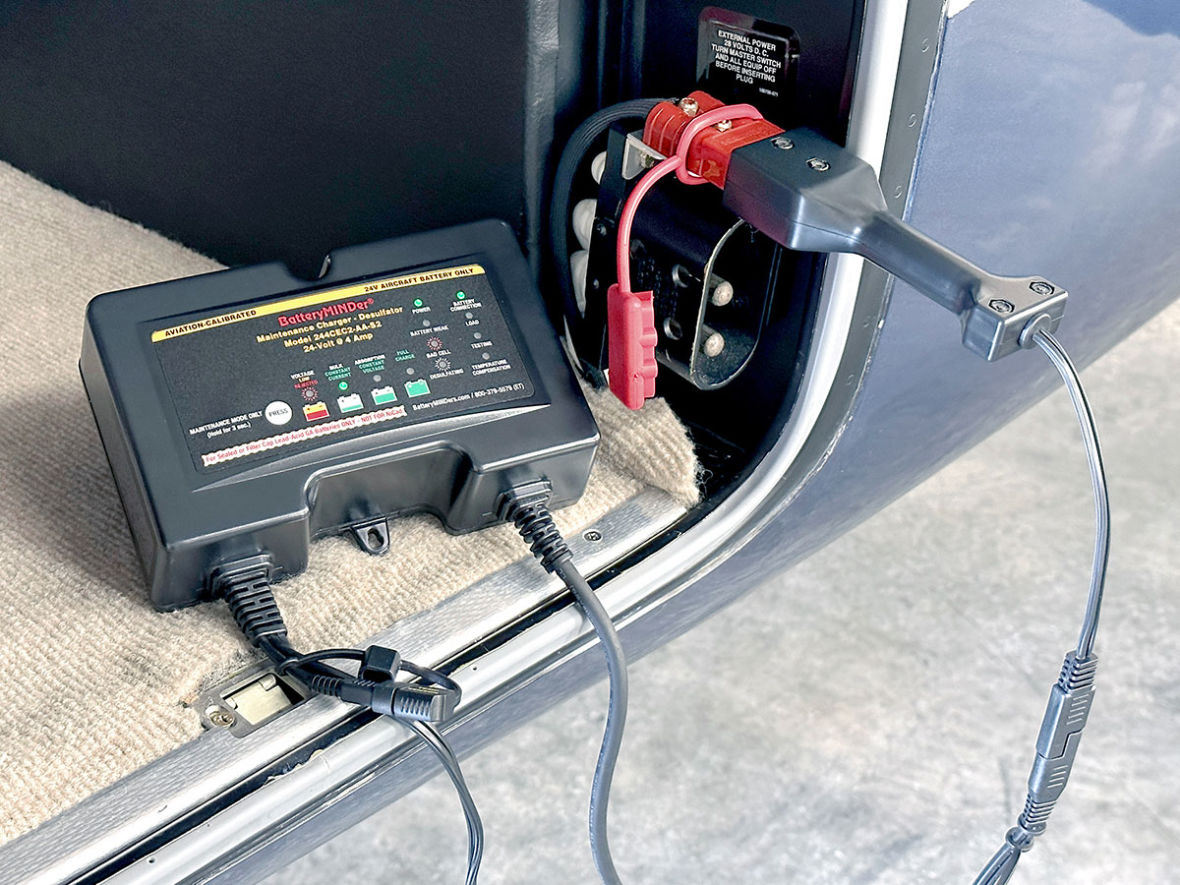

[Charging]
Charging
[SB50 adapter]
SB50 adapter

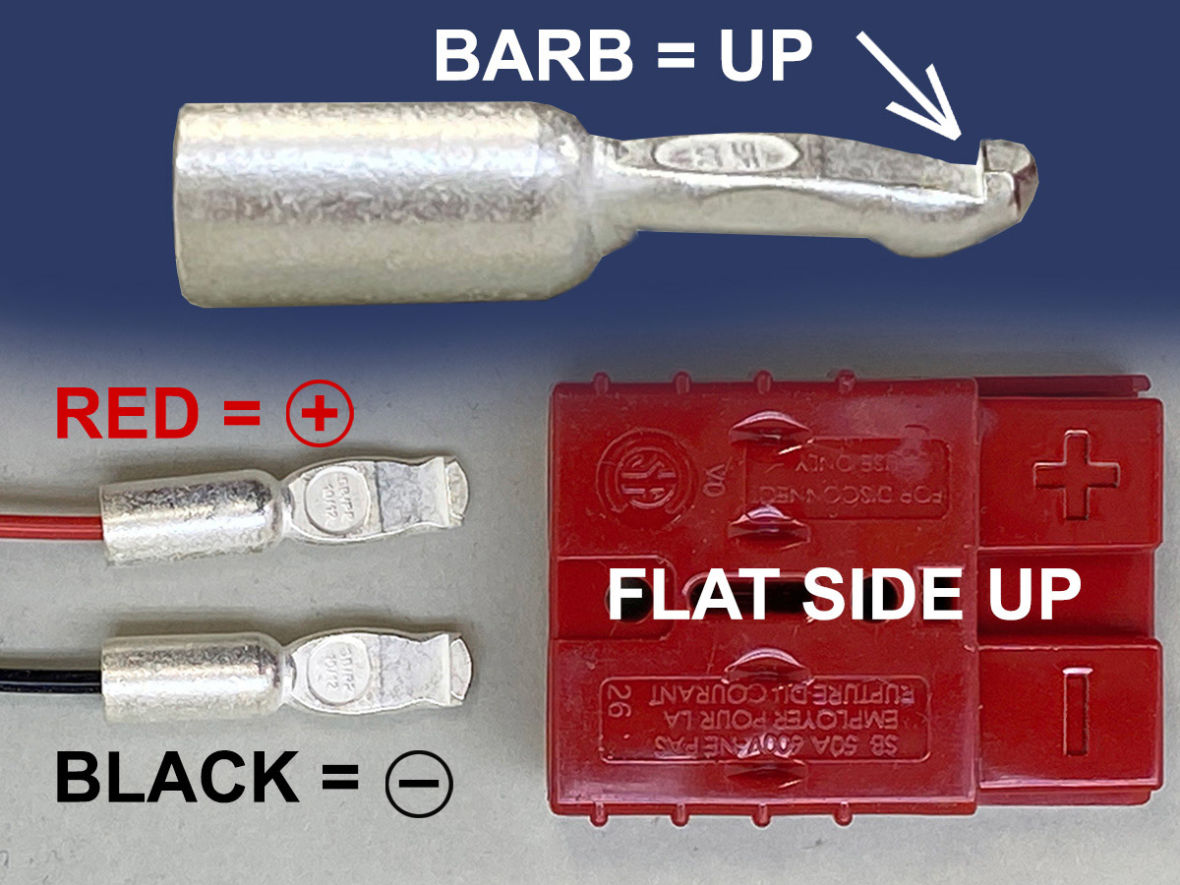

[Installation tip 1]
Installation tip 1
[Installation tip 2]
Installation tip 2

Why Certified Aircraft Need this
Quick Connect Harneess

3 minute presentation:

Youtube link

Skip Koss, VP at Concorde Battery explains proper charger connections for aircraft batteries.
6 minute video:

bm-aik_demo1-260w


BatteryMINDer® Airframe Interface

The BM-AIK2A is a parts kit to adapt aviation-specific BatteryMINDers for use with FAA-certified aircraft. It may be installed by any certified mechanic (see this video tutorial). It does not require a Form 337 or FSDO field approval; all that is required is an entry in the maintenance logbook for return to service.
 BMAIK2

Components for Airframe Installation:

  • SB50 polarized plug with in-line fuse (assembly tips)
  • 6' color-coded MIL-spec wiring
  • Insulating elastomeric dust cover
  • MIL-spec anti-chafe fiberglass sleeve
  • Ring terminals
  • Crimp splices
  • Installation instructions


Also Included (not for installation on aircraft):


An SAE to SB50 harness with handle and strain releif is also included for adapting a BatteryMINDer's "trailer plug" output to a mating SB50 plug.


*This kit is not compatible with BatteryMINDer Model 28252 25A charger/power supply or any maintenance charger with output greater than 8-amps.

IMPORTANT: This harness is designed only for maintenance battery charging, not for supplying ground power for airframe operations. Disconnect the charger before turning on airframe electrical power. Reconnect the charger after turning airframe electrical power off to recharge and then maintain/desulfate the battery.
