2x4 Audio Intercom System

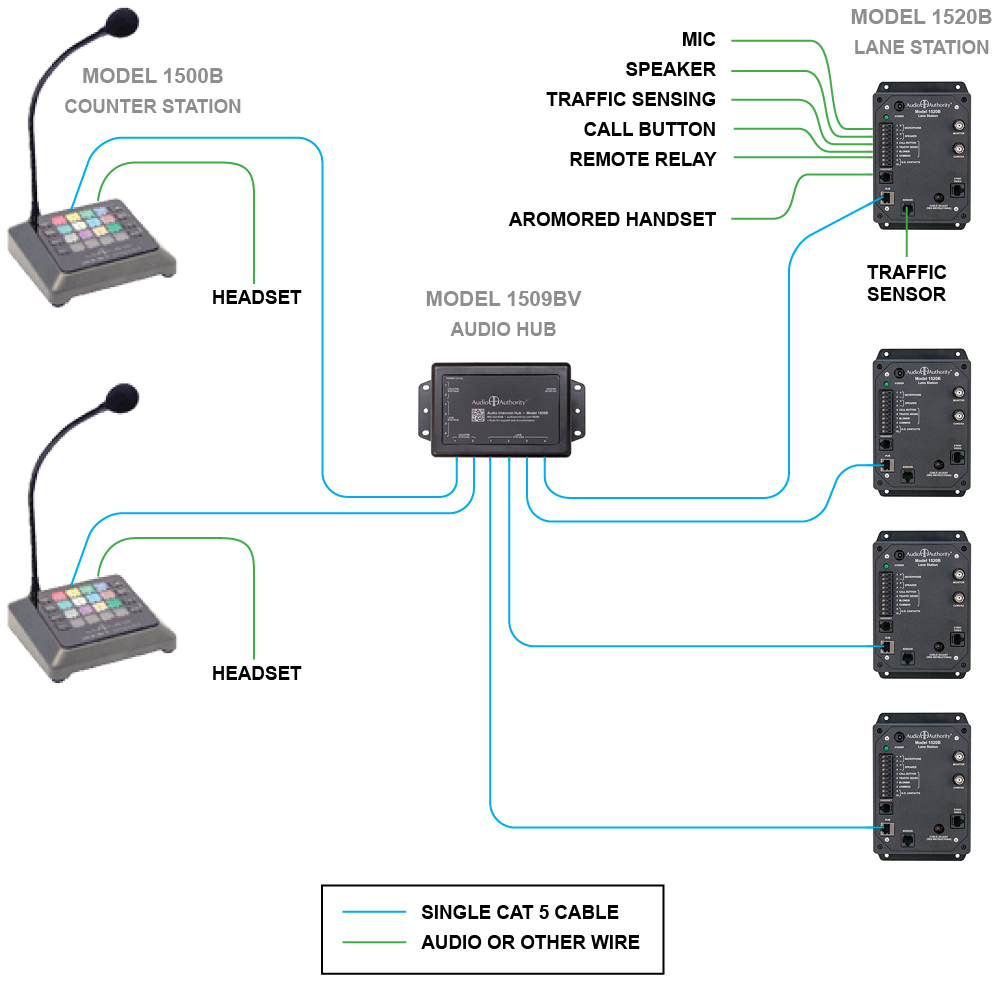

A basic Series 1500 2x4 audio configuration is shown below. Two audio counter stations connect to four customer stations via Cat 5 cable through a Model 1509B audio hub. A wireless or wired headset can connect directly to the built-in headset port on the counter station.  The customer station may connect to many different accessories. See more example systems.


2x4 Intercom System Diagram
