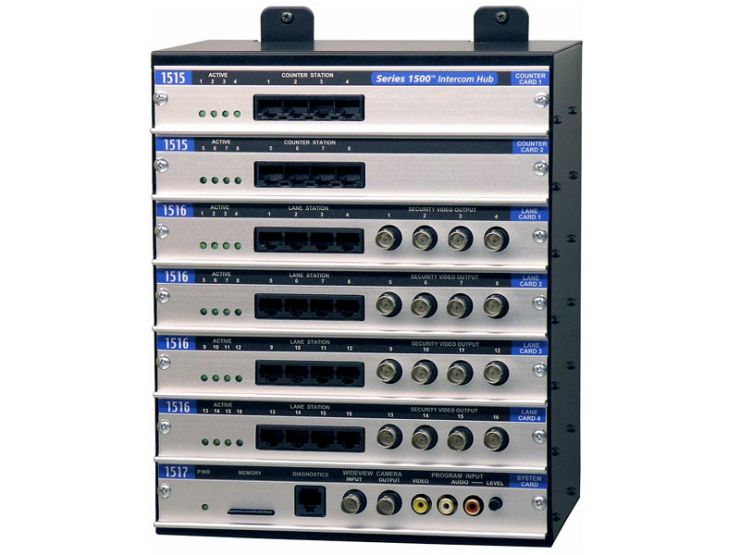

Integrated Audio and Video Hub		8x16 Audio/Video Intercom Hub Model 1513 - New Model Available
		Features: 8 x 16 capacity (maximum) Expandable card cage  (2) Counter Station cards - Model 1515 (4) Lane Station cards - Model 1516 (1) System card - Model 1517SD Power supply  Categories: Discontinued
Performs all voice/video signal routing functions for multi-lane systems Accommodates audio/video and/or audio-only Counter and Lane Stations Typically located in telephone closet or under a counter System settings are stored on a removable media card (proprietary format) for security or replication purposes Tough steel enclosure containing Counter, Lane, and System cards designed to be wall-mounted Inputs allow multimedia source devices to play advertising content whenever the lane is idle Direct outputs from wide angle camera and/or lane cameras for surveillance recording

Downloads

• Drawings
• Template  (221.83 KiB) Drawings for Import Full scale line drawings in DWG and PDF formats for import into CAD.


• Manuals
• Series 1500 Manual   1.78 MiB Series 1500 Installer's Reference Guide
