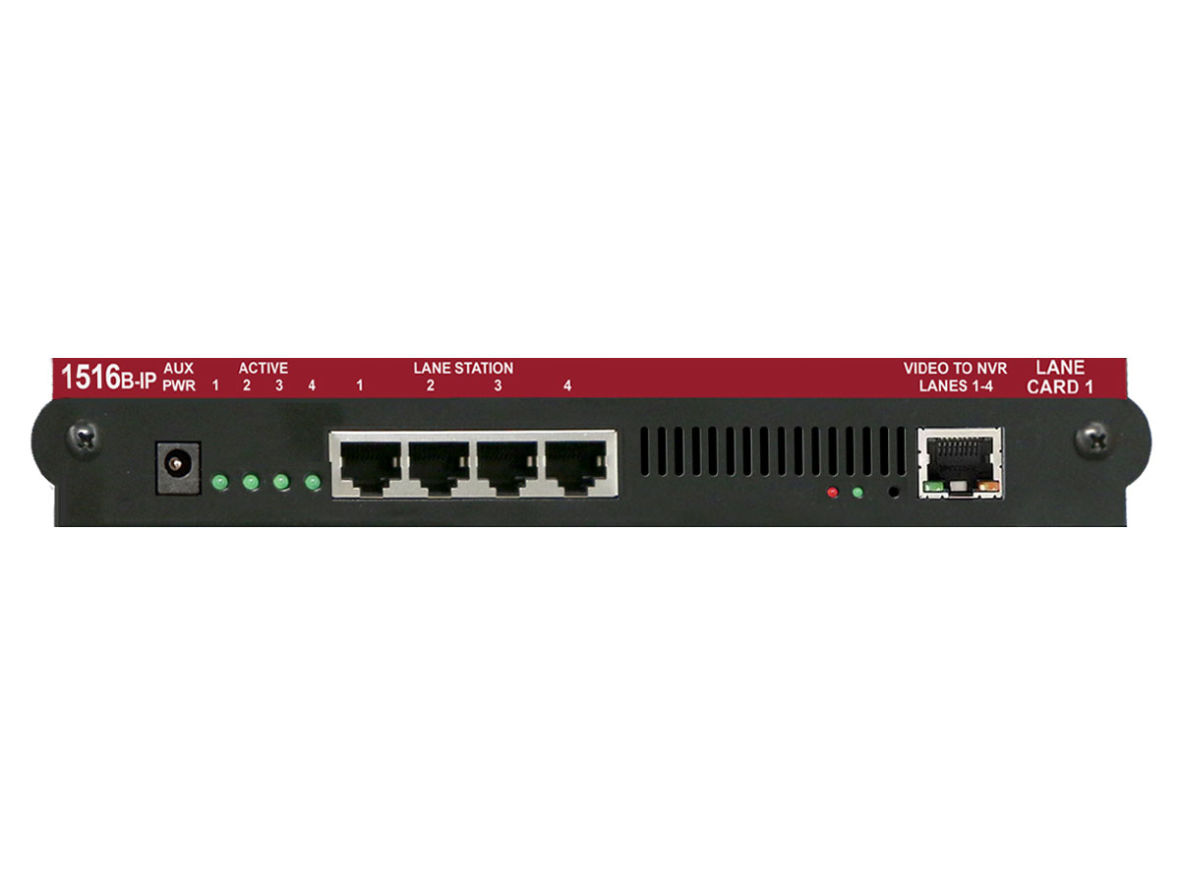

Lane Station Card with IP Streaming
Model 1516B-IP - Order Now!FAQ - About IP Video Streaming
- Q: How many 1516B-IP cards can I install?
A: Install up to four cards for a total of 16 lanes. See below for power requirements. - Q: What is the AUX Power port for?
A: If only one 1516B-IP is installed, leave the 1516B-IP power port vacant. It will be powered by the hub power supply. If installing more than one 1516B-IP, remove the small 1.5V power supply from the main power input on the bottom of the hub and connect a 5V power supply to one of the 1516B-IP cards. This will power the entire hub.
Downloads
- Literature
- Series 1500 Brochure
2.92 MiB Series 1500 brochure, updated November, 2026.
- Series 1500 Brochure
- Manuals
- 1516B-IP Configuration Guide
3.59 MiB 1516B-IP Configuration Guide - IP Streaming from Lane Cameras
- 1516B-IP Configuration Guide
