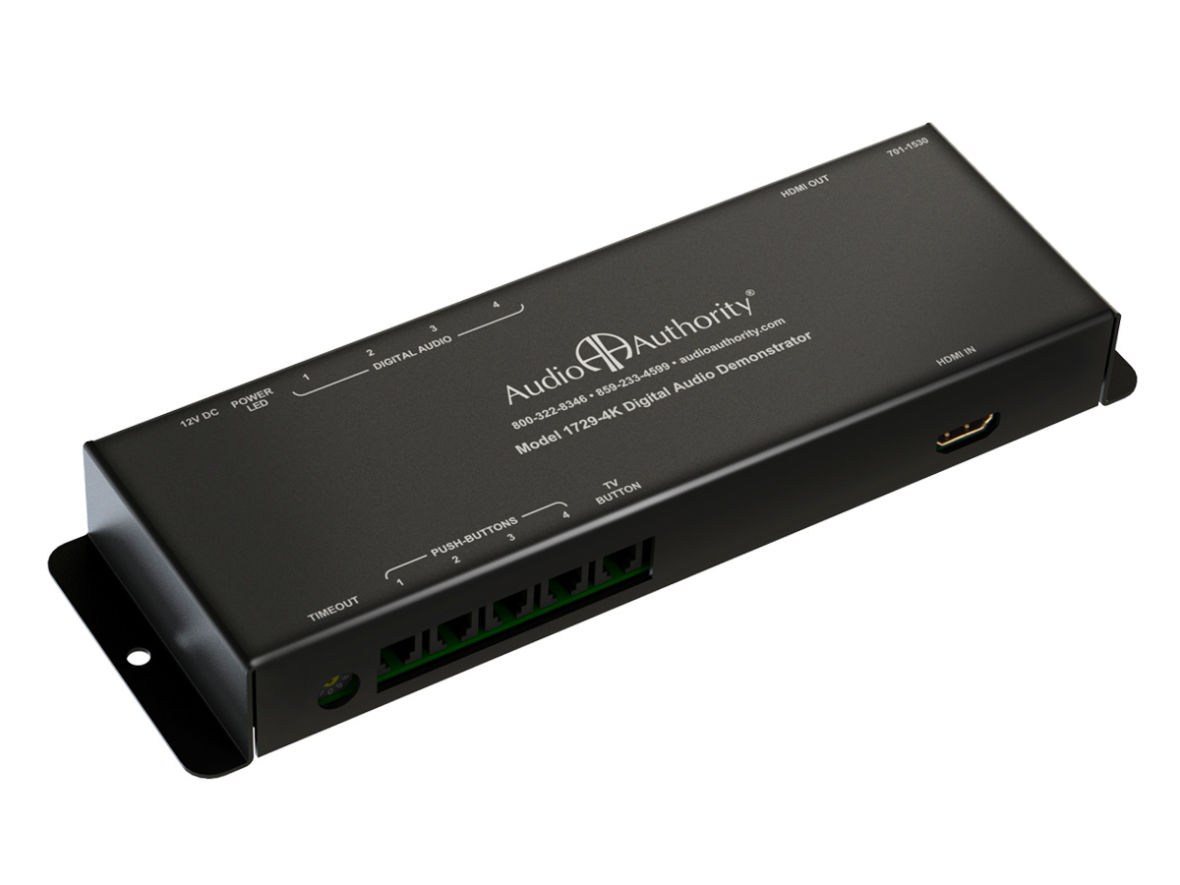

[Image for 1729-4K]
Audio demonstration switcher

Digital Audio Demonstration System

Model 1729-4K

Features:

  • Demonstrates up to four audio products
  • HDMI input, HDMI TV output
  • Digital audio (PCM-2 channel)
  • Optical Toslink connections for audio products
  • Durable push-buttons for product selection
  • TV sound button (optional)
  • 4K60 4:4:4 8bit and 4K60 4:2:0 10bit
  • Adjustable demonstration timeout

Categories



The 1729-4K makes it easy to use a 4K video source to demonstrate digital audio products, such as sound bars and receivers. The audio signal is automatically duplicated from the video signal, streamlining the signal paths. Installation is simple, from source to switcher to TV. Product select buttons are available in many styles and colors.


Video Specifications:
  • Supports PCM-2 channel digital audio
  • 4K60 4:4:4 8bit and 4K60 4:2:0 10bit
  • HDMI and HDCP 2.2 compliant
  • HDMI Audio: PCM 2
