[Image for 1812]
Media Hub with BrightSign Built-In
Media Hub with BrightSign Built-in
Model 1812

[Buy Online]
$495.00 USD
  • BrightSign® digital signage module

  • 1080p with discrete digital and analog audio
  • CEC control via HDMI port
  • Eight push-button ports

  • Connect touch screen, touch panel, or volume knob

  • Network port for updates and control


Categories


[Front panel]
Front panel
[Rear panel]
Rear panel
[Side panel]
Side panel



Interactive HD Demonstrator

The Model 1812 combines BrightSign’s media-playing muscle with the interactivity you expect from Audio Authority®. With a BrightSign digital signage module built-in, the 1812 produces flawless 1080p video and uncompressed audio, with all the custom capabilities made possible by BrightAuthor software.

Extensive inputs and outputs on the 1812 provide many ways to interact – eight push-buttons and three serial ports for external control devices including touchscreens and touch panels. Use push-buttons and touch panels as transport controls and/or product selection and other custom commands. Media and BrightAuthor programming may be updated via Ethernet.


BrightSign-Builtin
  • Audio-video media hub with Integral BrightSign® player

  • Video output: 1920x1080 @ 60fps and up to 5.1 channel audio (HDMI)
  • CEC control (HDMI port)
  • Discrete digital and analog audio outputs (optical and 3.5mm)

  • Programmable push-button ports (RJ9 x8)

  • Control ports for peripherals (RJ45 x3)

  • USB port for touch screen or other device
  • Ethernet port for remote updates and control

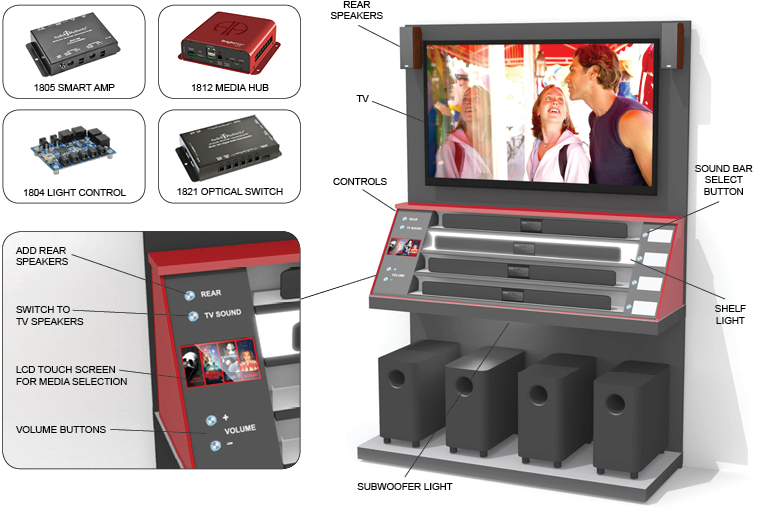

Example:

Sound Bar Demo


The 1812 does more than play media in this full-featured sound bar demo - it coordinates a complex audio demo with lighting effects. Customers can audition sound bars, select media, add rear speakers, compare TV sound to sound bars, and adjust volume. Sound bars are selected using push-buttons on the right, triggering the first media file to play, and the shelf to light up. Lights under the shelf also highlight the selected subwoofer. The user selects media using a small touch screen. The rear speakers are powered via a smart amplifier that tracks volume control with the selected sound bar. The 1812 starts its silent attract mode after a period of inactivity, ready to attract the next customer.

Sound bar example




1812 Specifications

  • Audio Formats: MP3 (mono or stereo) @ 44.4kHz or 48kHz, WAV (mono or stereo) @ 96kHz, 48kHz, or 44.1kHz
  • Video Formats: MP4 and MOV (without metadata) with AAC or AC3 audio (pass-thru)
  • Video Codecs: H.265, H.264 (MPEG-4, Part 10), MPEG-2, MPEG-1
  • Dimensions (HxWxD, inches):  5.4 x 5.2 x 1.8
  • Communication: USB-A, RS-485 control ports (x2), RS-232 port (Baud rate is software selected), Ethernet
  • SD or SDHC media card
  • Power Supply: 12V DC, 5A
