AccessEZ Technical Tips:  Using 2-pin Buttons with 4-pin PSB Ports

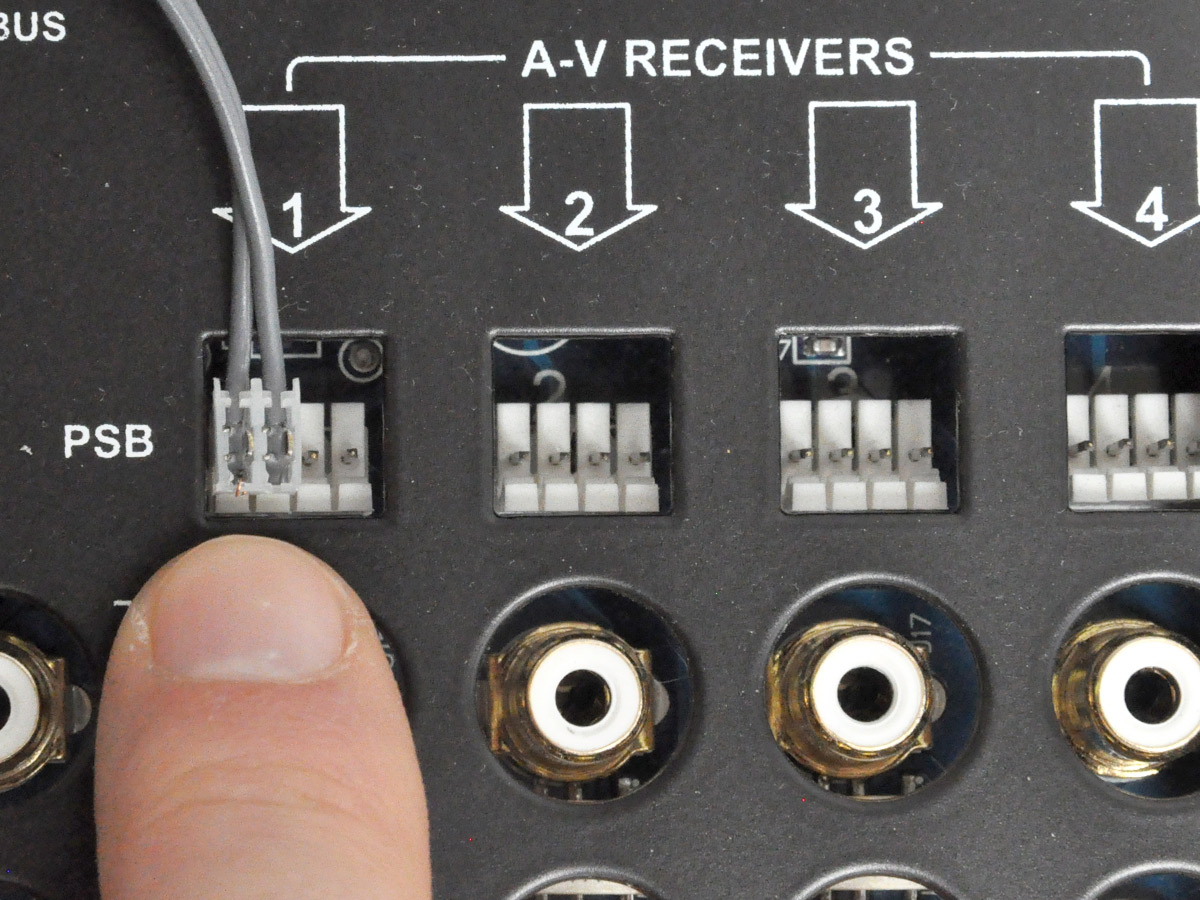

access-2-pin-psb-left To use 2-pin switches or push-buttons with 4-pin ports, orient the port with the "bar" on the bottom as shown. Plug the 2-pin PSB on the left two pins.

Test each button. If the PSB does not work, check to make sure it is plugged into the correct pins.

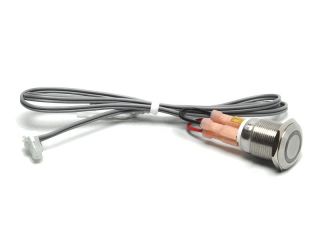

803-190 PSB




Access Tips
