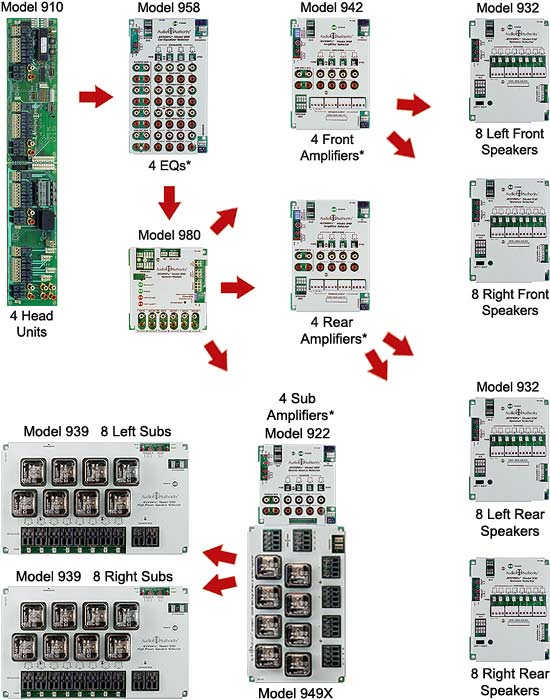

| Six Channel Switching SystemThis six channel system demonstrates head units, front amplifiers, front speakers, rear amplifiers, rear speakers, subwoofer amplifiers and subwoofers. This configuration is ideal for displays which have rear speaker towers, because the rear speaker switch modules may be located in the rear towers, next to the speakers they serve, reducing the amount of wiring required.
This display can be operated by product select buttons next to each product, and/or a 903i Comparator. Like any AccessEZ system, adding more products in a product group is as easy as adding switch modules. |
|  |
 |
* The switch modules for amplifiers each have four product positions. If bypass functionality is desired, the 4th position must be used for the bypass position, reducing the number of available product positions on the last switch module in the amplifier product group to three. |
| |
