MHT 2018
Magnolia Home Theater 2018

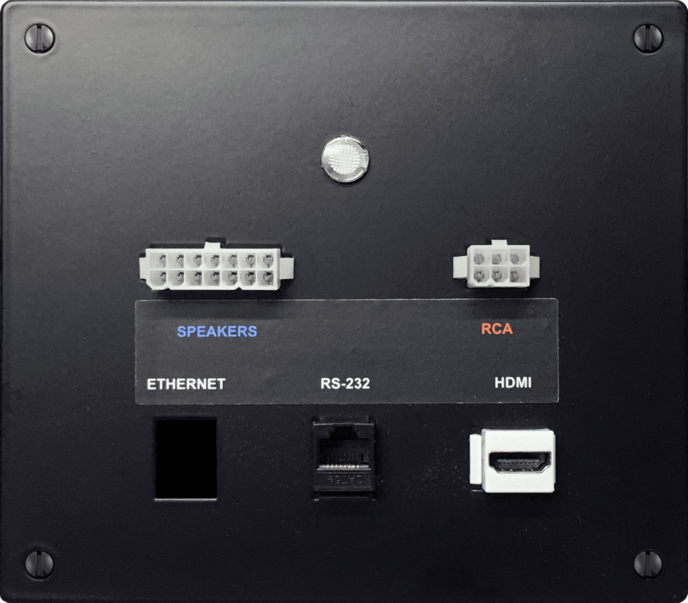

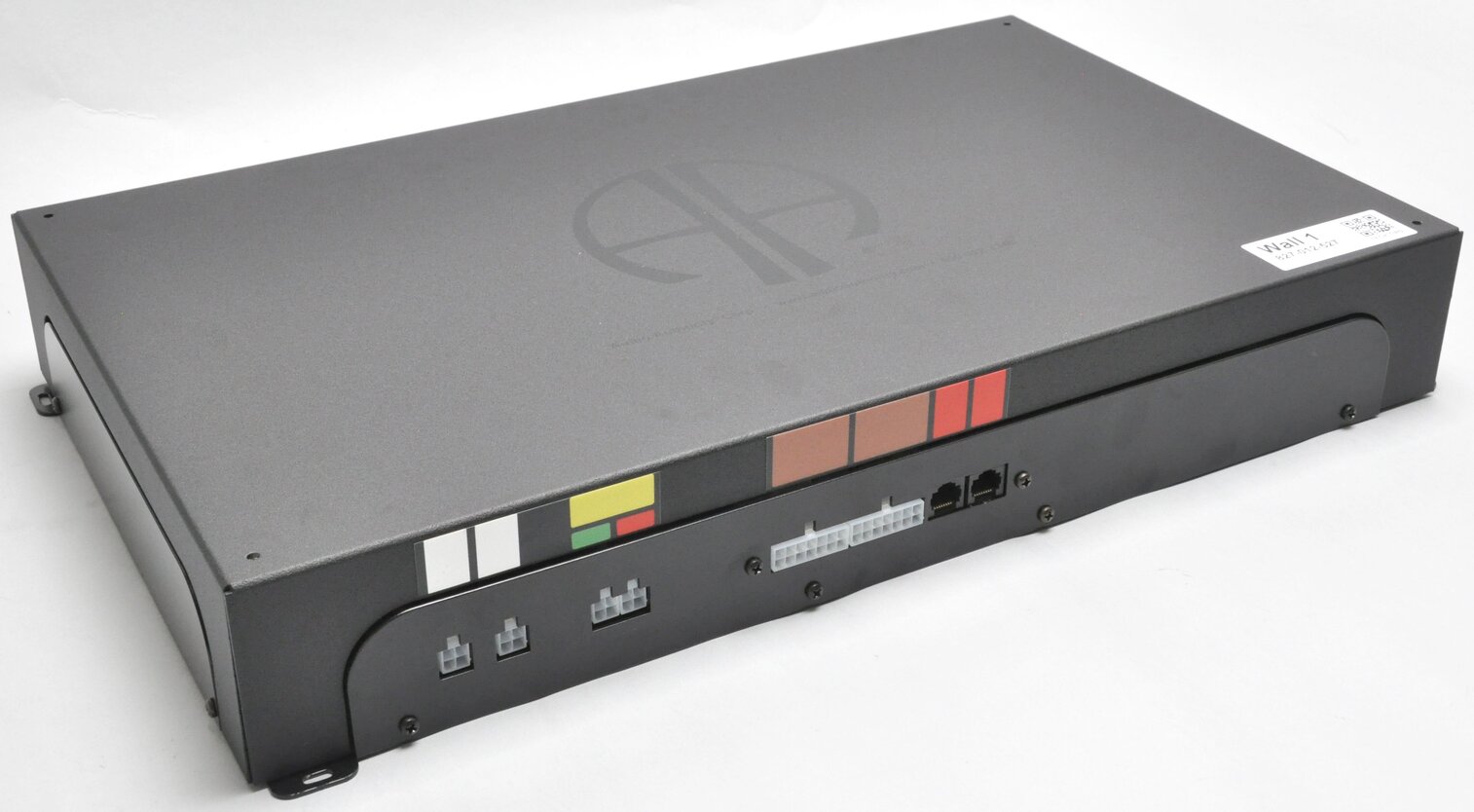

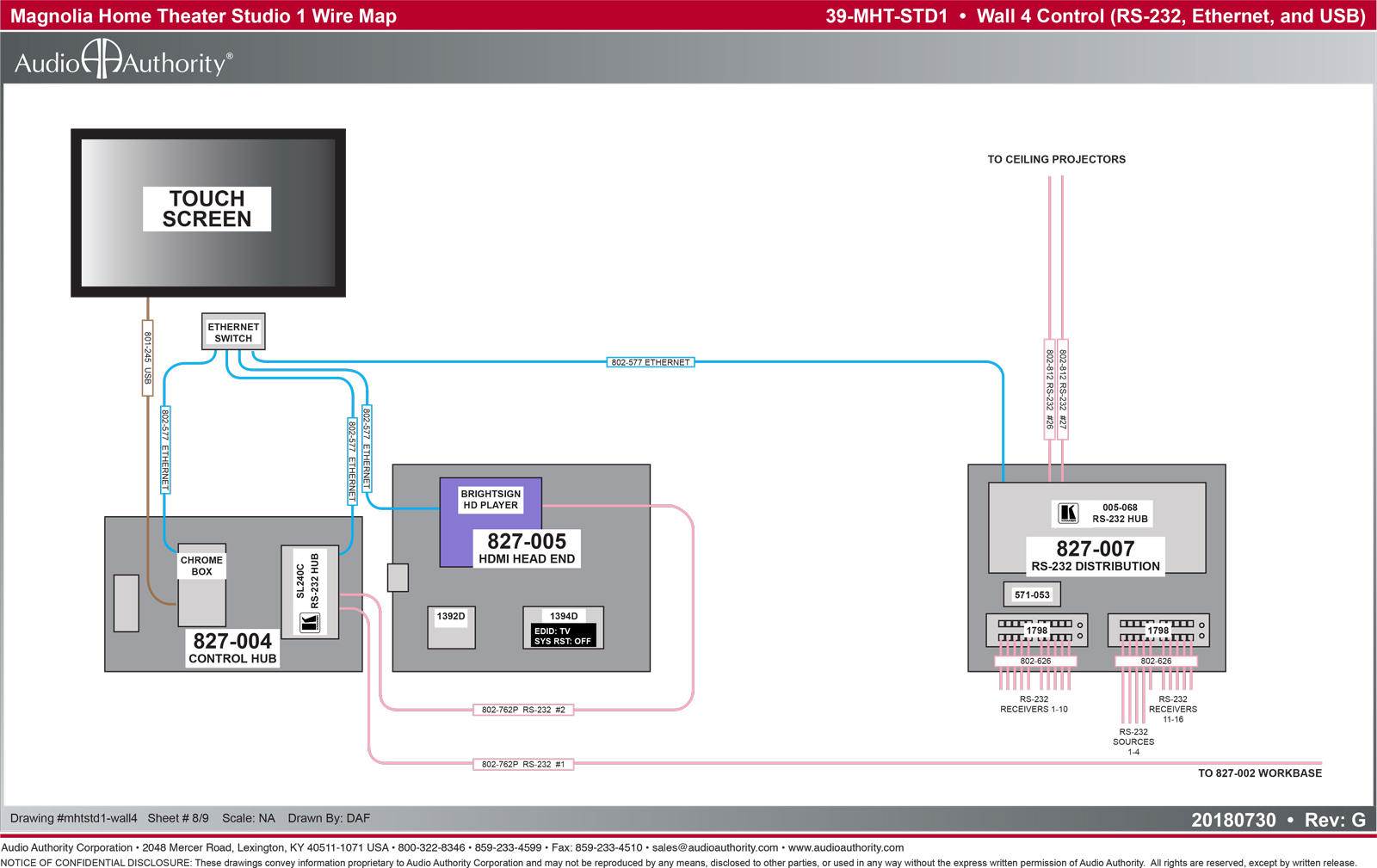

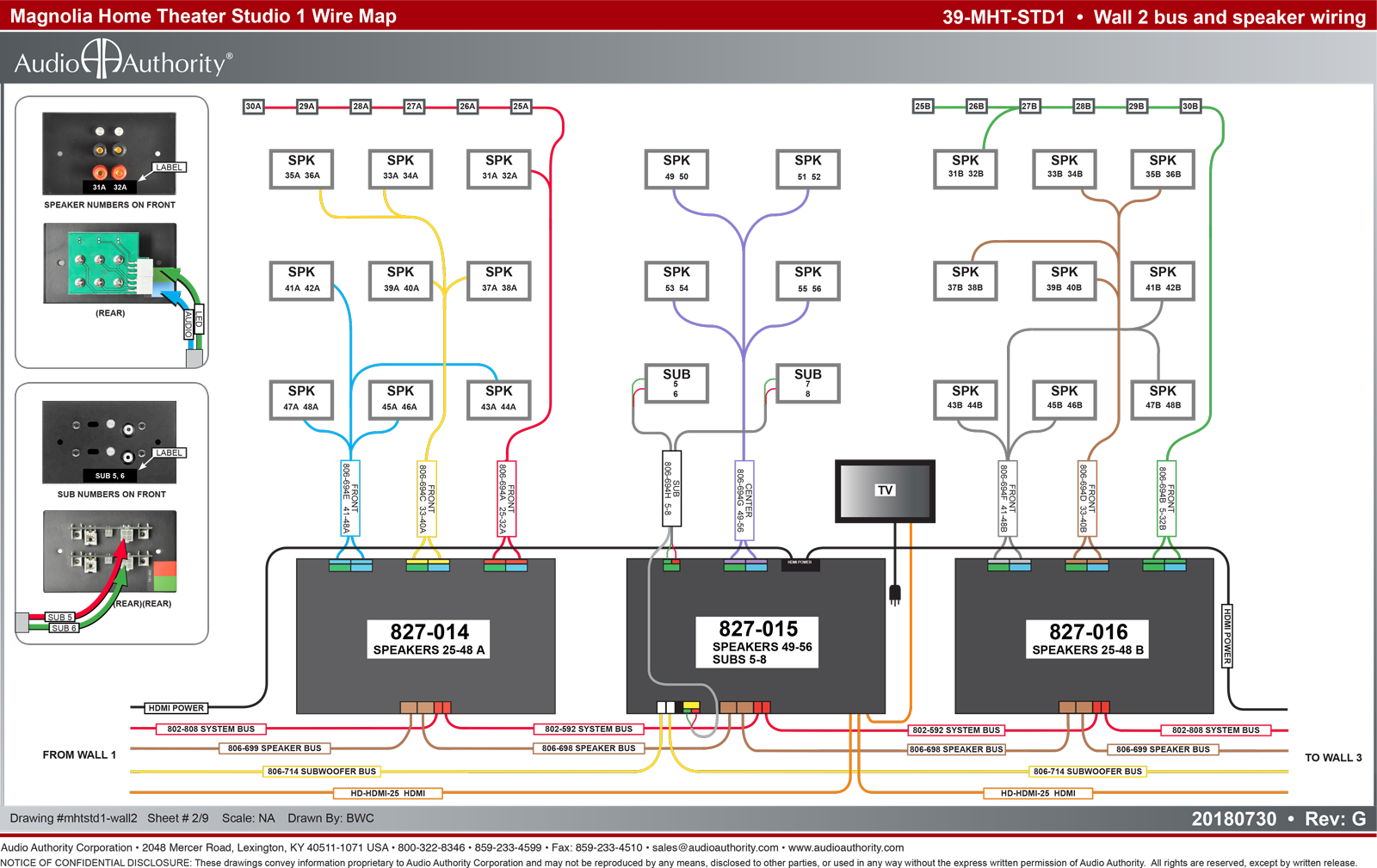

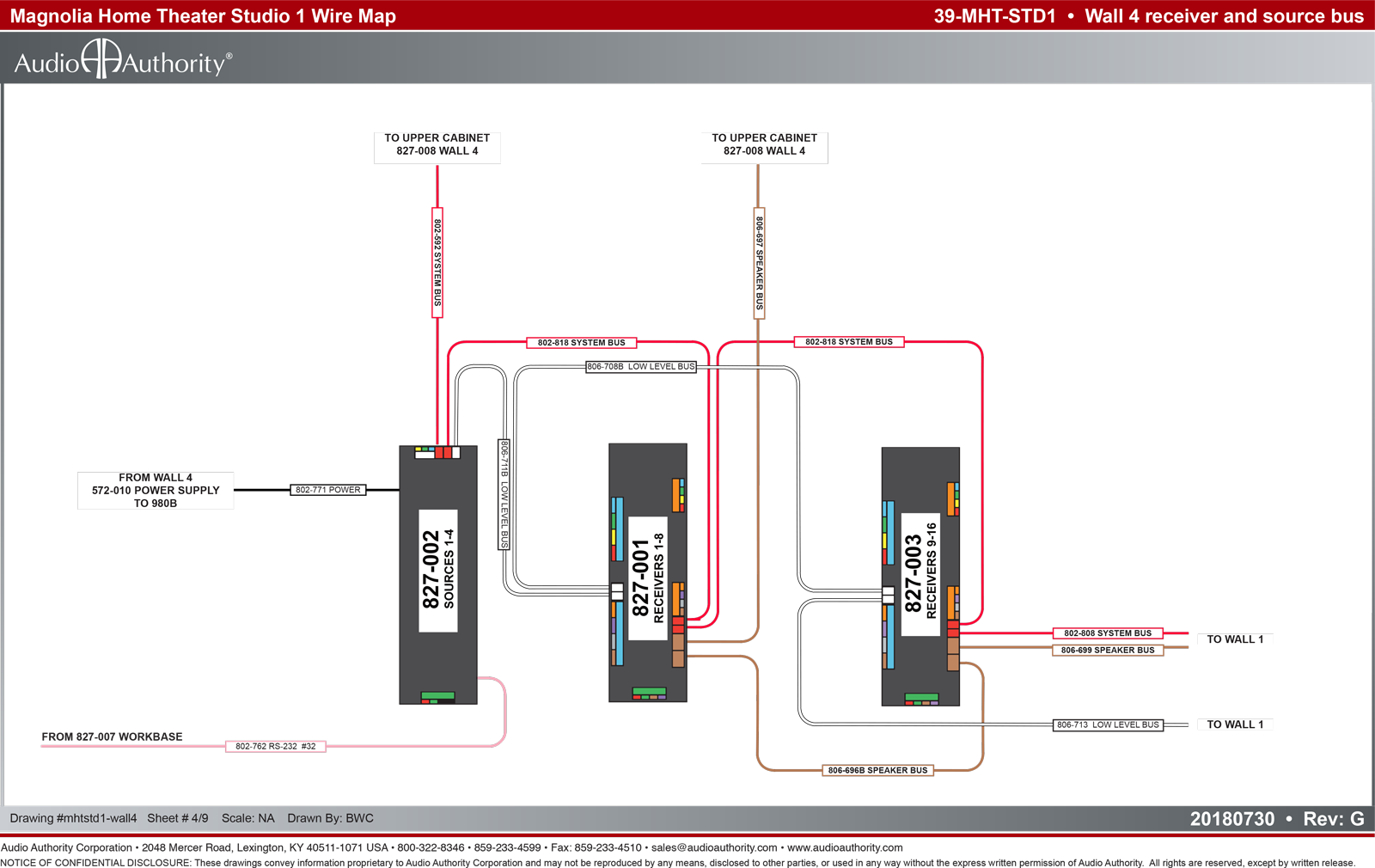

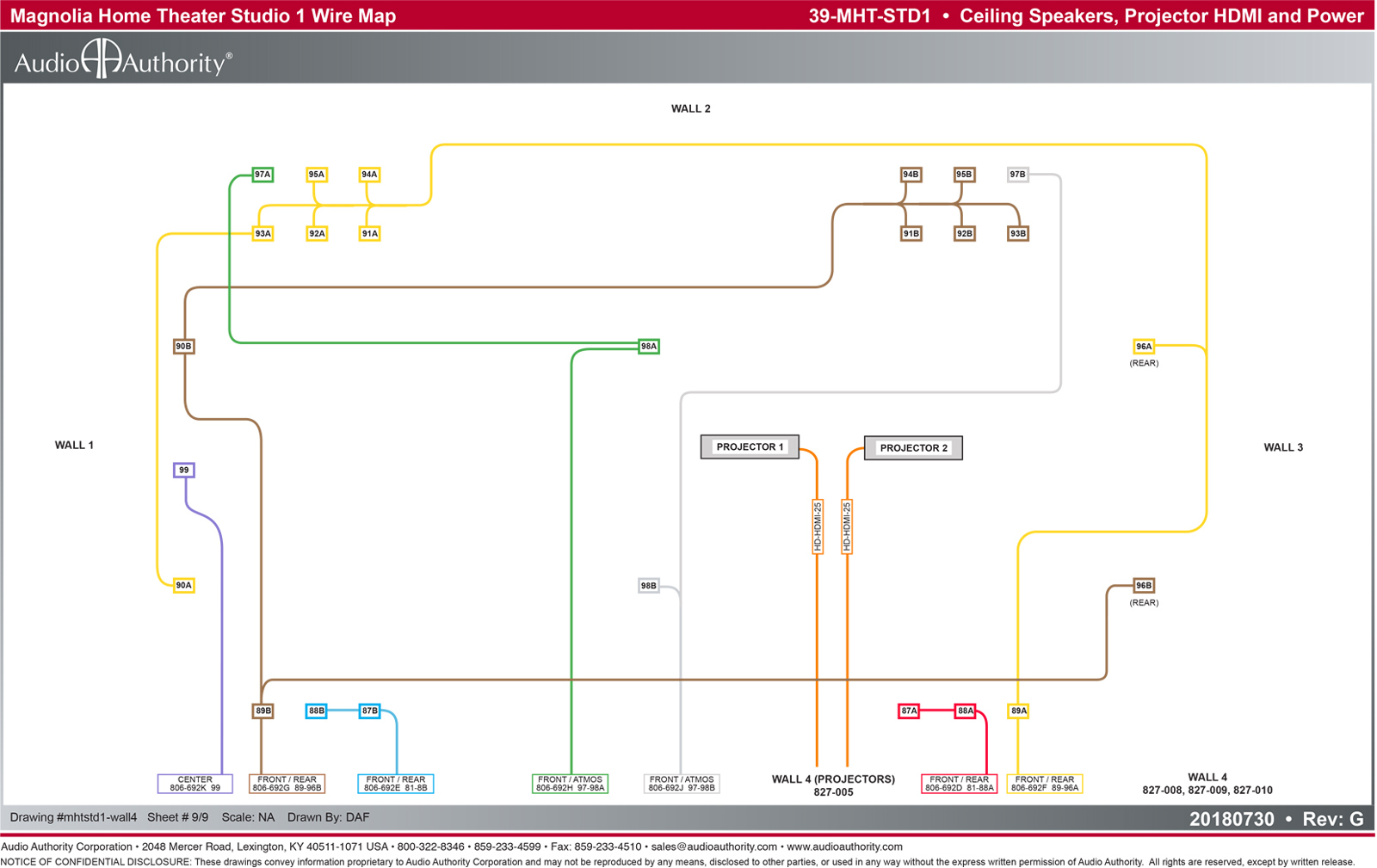

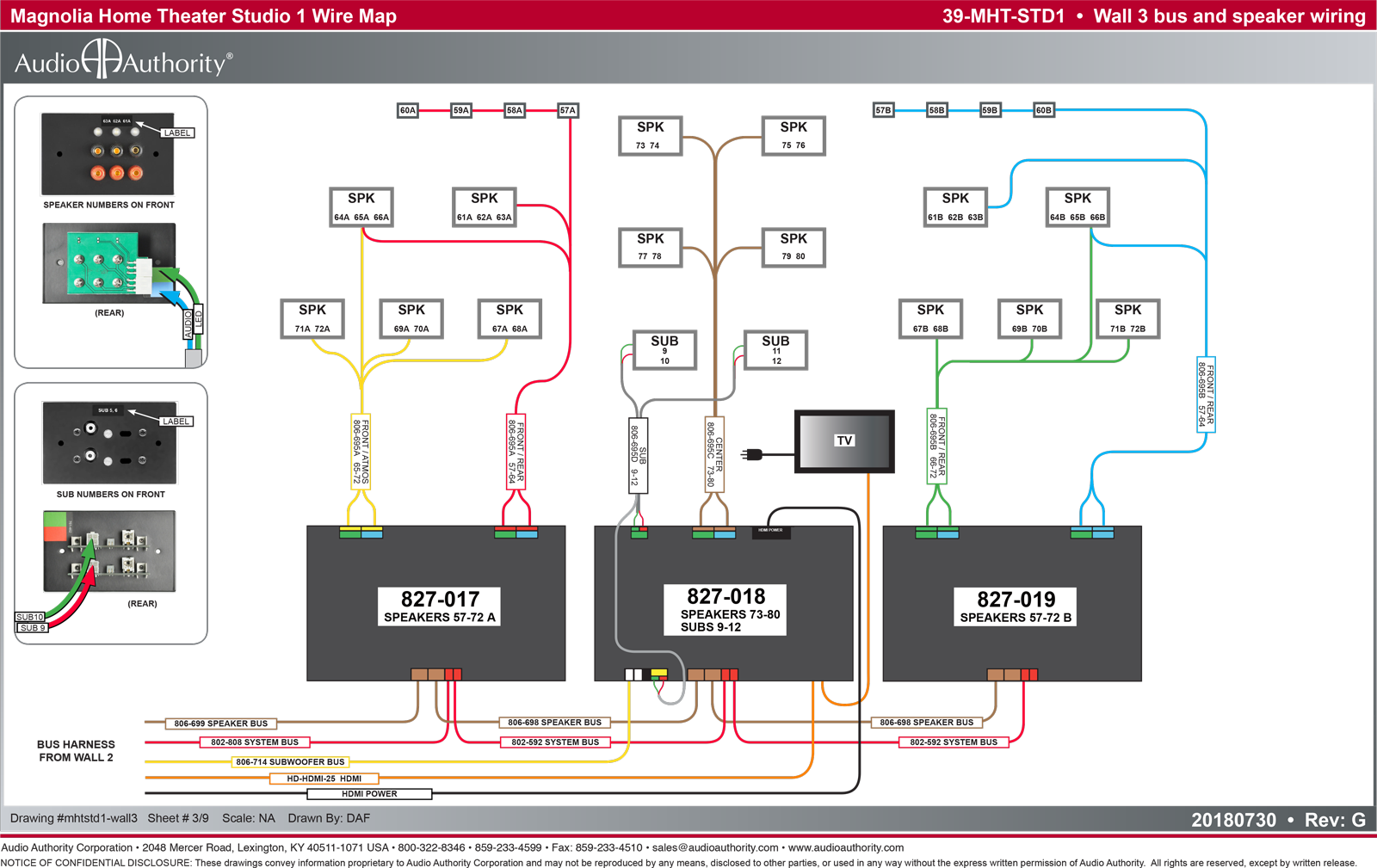

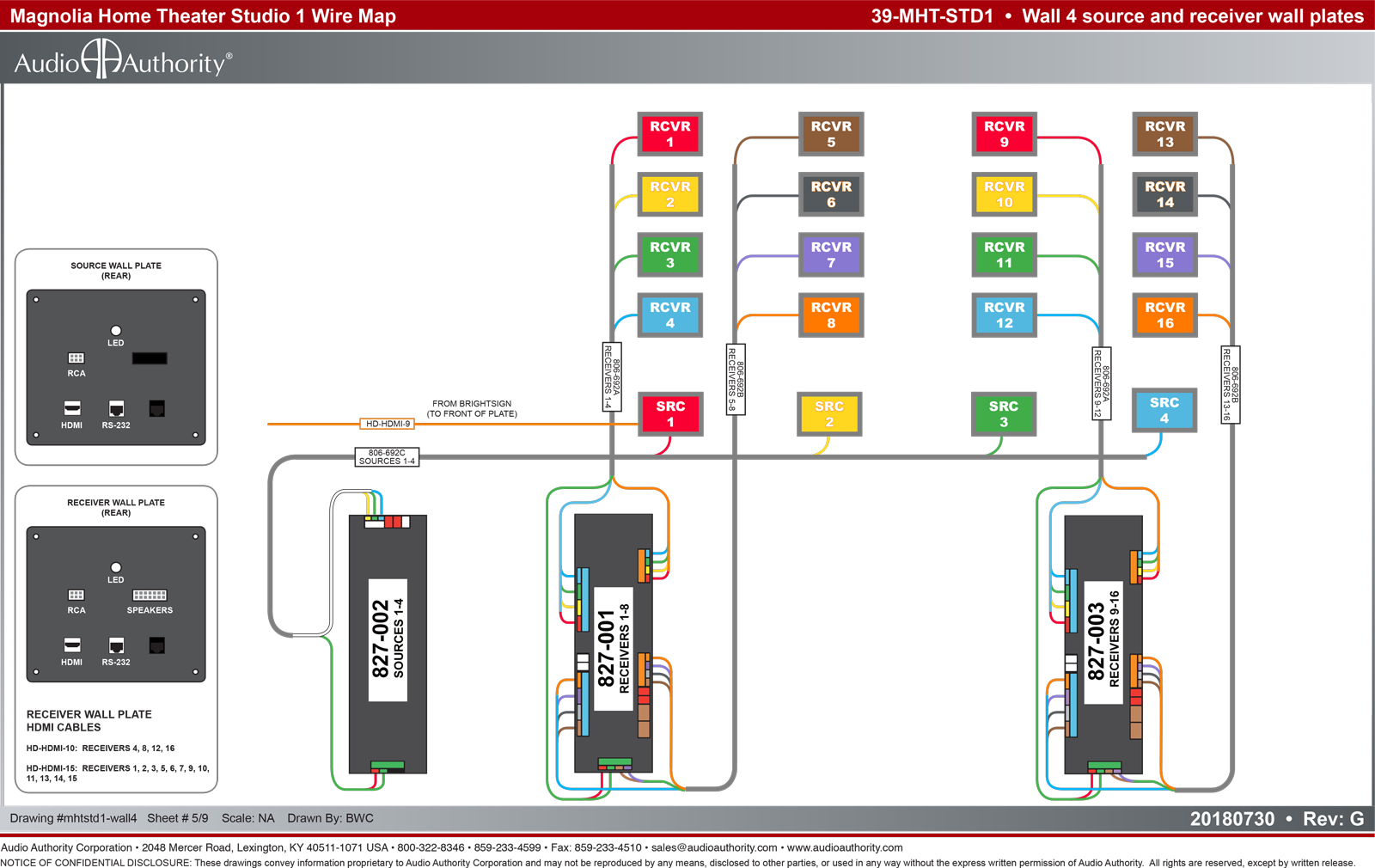

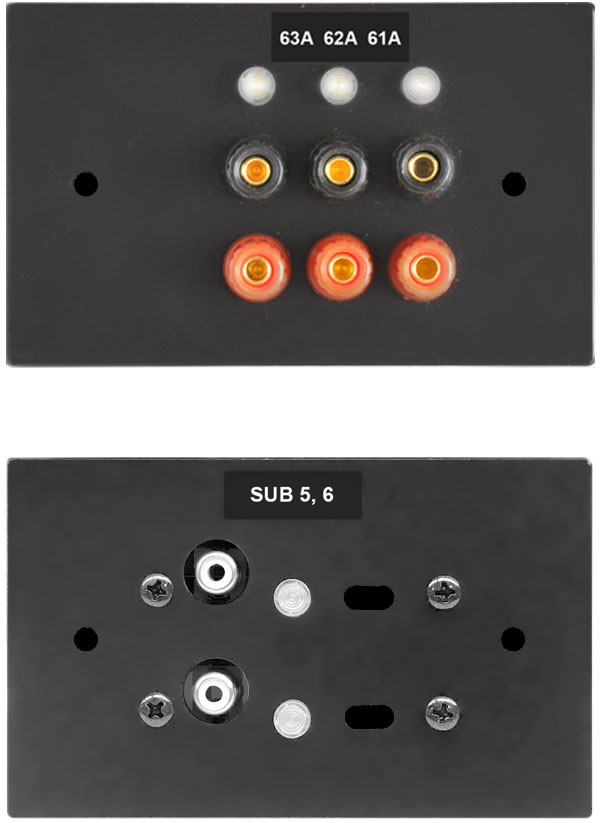

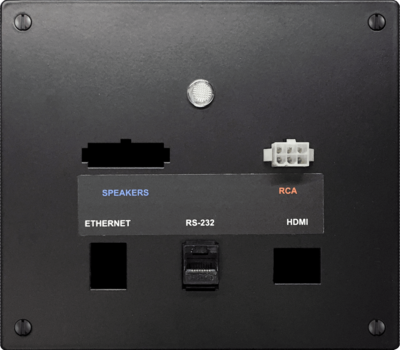

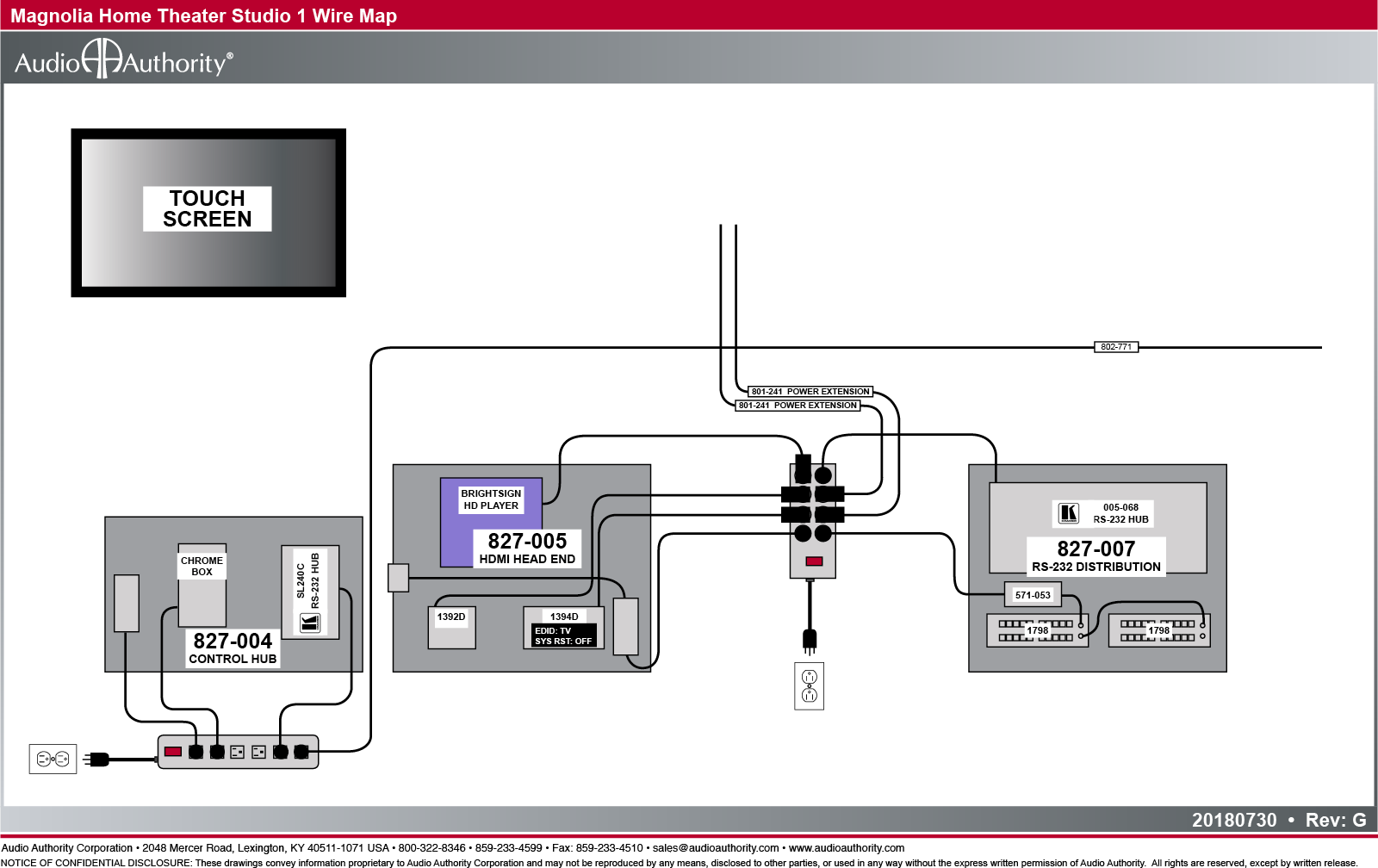

The MHT room kit includes four walls, each wall has multiple workbase modules. The wire maps below show the connections between modules. Download this PDF for drawings in printable format. For wiring inside each module, see the label under the workbase lid.
Magnolia Home Theater 2019

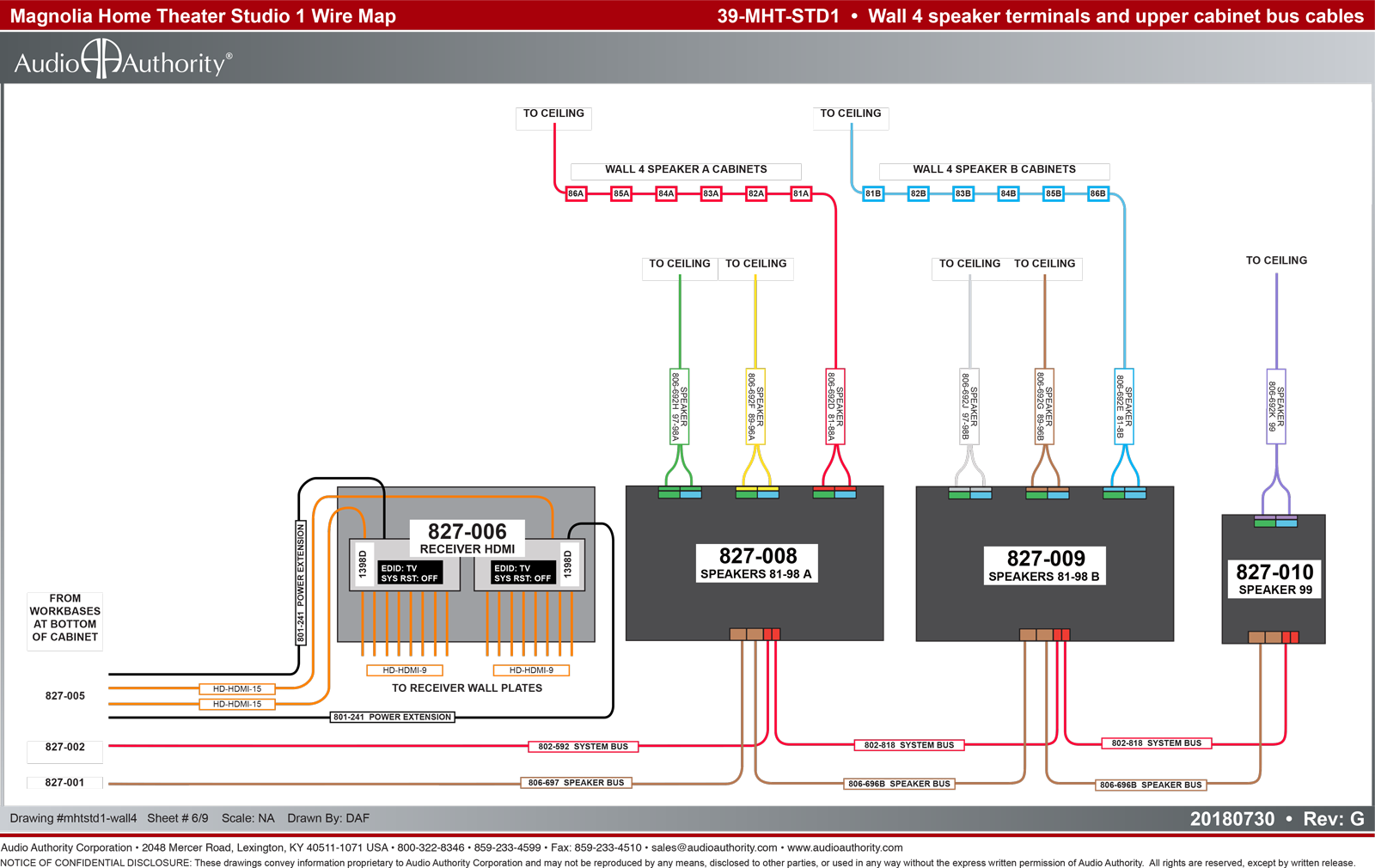

Browse 2019 version wire maps, or Download this PDF. Click an image below to see a full size diagram.
