MHT 2018 Wall Plates
Magnolia Home Theater Wall Plates
Speaker and subwoofer wall plates, numbered labels, trim rings, and screws. Return to the index page.
Screws

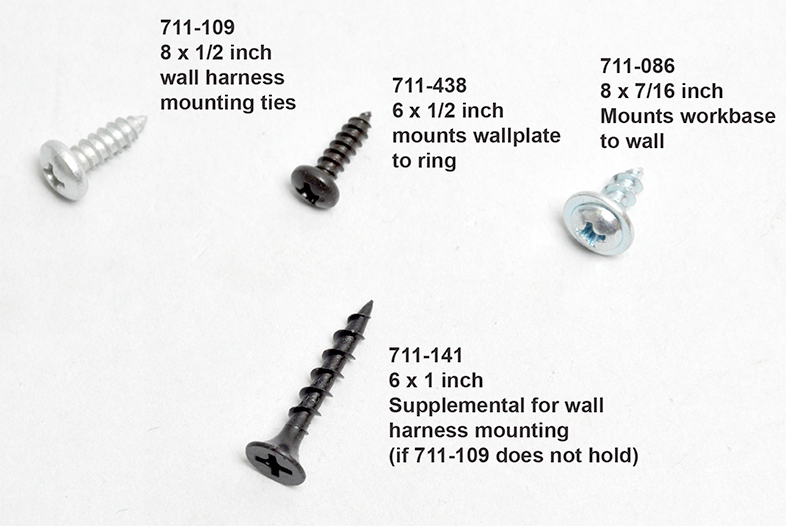

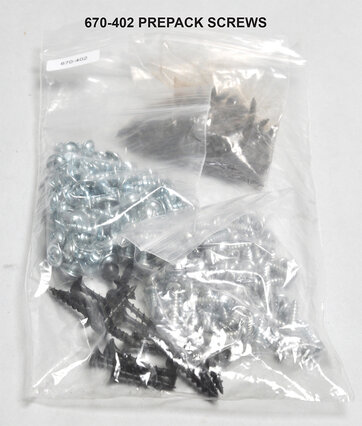

Install trim rings before wallplates. The 670-402 prepack contains four kinds of screws, to be used as shown.
Speaker Wall Plates

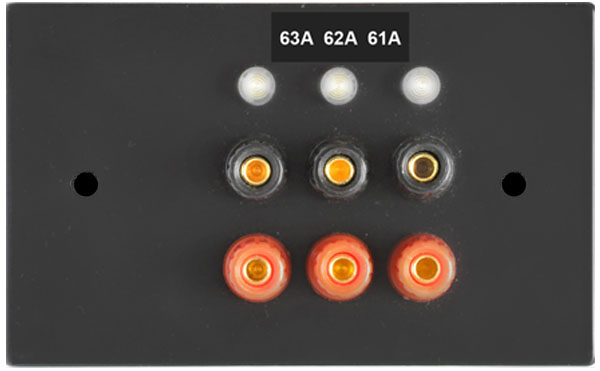

The speaker wall plates should be installed with the LED indicators on top. Apply number labels above the LEDs, using the label sheet provided.

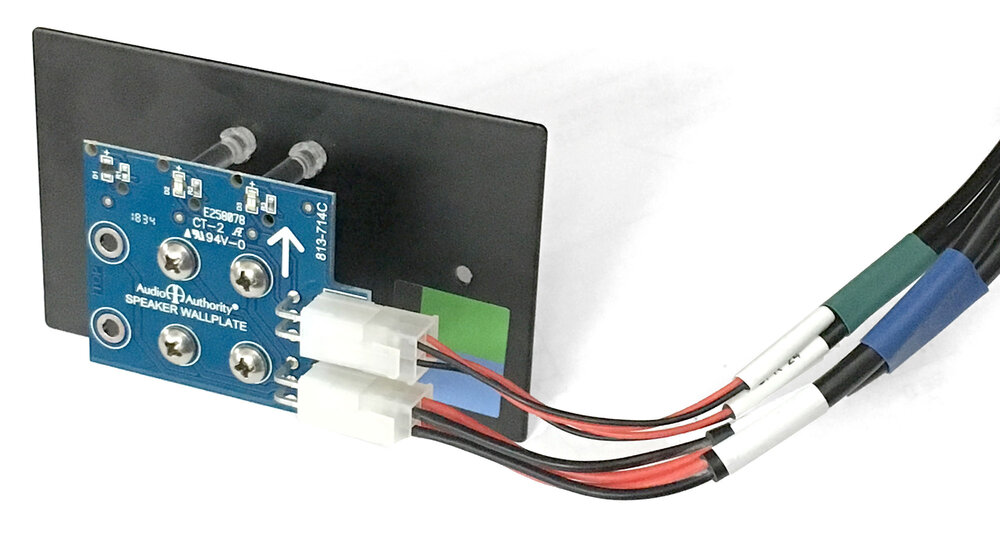

Connect blue and green cables as shown.
Subwoofer Wall Plates

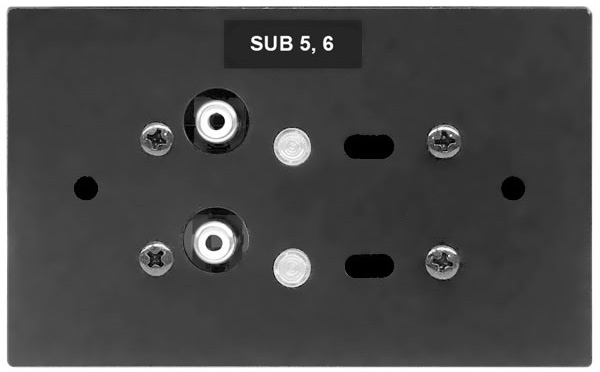

Mount Sub wall plates with the RCA jack on the left side, as shown. Apply labels to top edge.

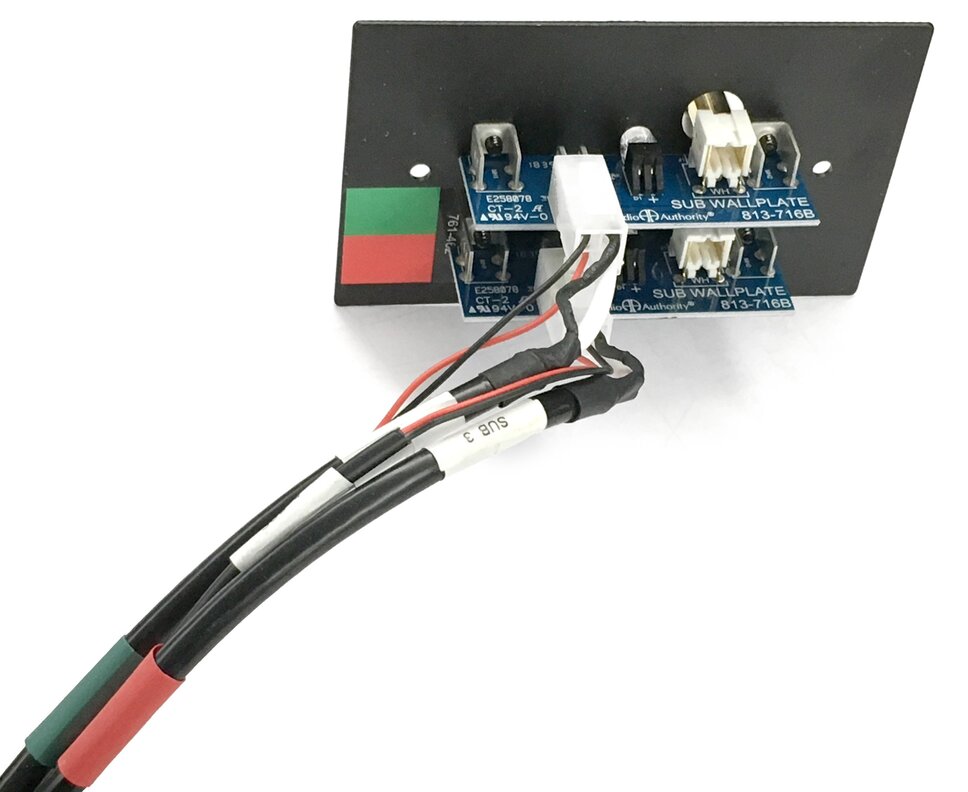

Connect red and green cables as shown.
Speaker Spring Terminals

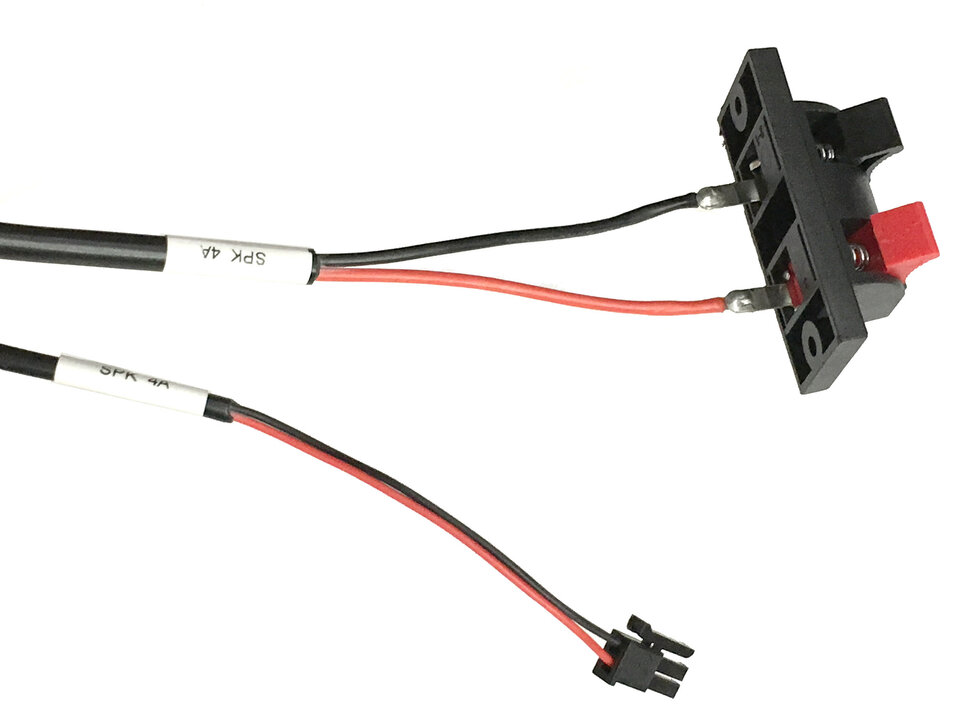

Spring terminals for ceiling and wall speakers are numbered, and have a separate LED plug.
Receiver and Source Wall Plates
These look very similar, but Source wall plates do not have the speaker connectors.
