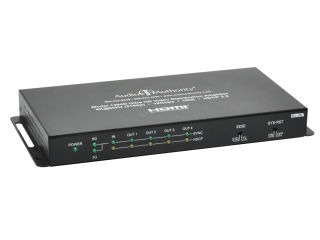

[Image for 1394D]
1x4 HDMI Distribution Amplifier
1:4 HDMI 4K/60 Distribution Amp/Splitter
Model 1394D

Key Features:
  • 1 HDMI input, 4 outputs
  • Resolutions up to 4K@60Hz
  • Supports lossless audio formats
  • Supports 3D signal transmission
  • Supports standard mode or TV EDID settings

Categories: HDMI Distribution, Distribution, Commercial HDMI, Showroom Video Distribution

[Rear view]
Rear view


Model 1394D distributes Ultra High Definition resolutions up to 4096x2160@60Hz from one source to four HDMI displays. Standard/TV EDID settings enhance compatability between source and displays. This feature is especially useful in the retail demo environment, where multiple brand and model TVs all receive the same source signals. The 1394D passes 3D signals. Bitstream audio is also supported - including LPCM 7.1 channel uncompressed audio, Dolby Digital TrueHD (7.1), DTS HD: Master Audio (7.1), and Dolby Atmos (7.1.4). Legacy codecs such as Dolby Digital and DTS core are also supported.

  • Supports Ultra High Definition up to 3840x2160 at 60 Hz and 4096x2160 at 60 Hz
  • Dolby TrueHD, Dolby Atmos, and Dolby Digital Plus (bitstream throughput)
  • DTS HD and DTS HD: Master Audio (bitstream throughput)
  • Compact footprint



Key Features

  • Supports standard mode or TV EDID settings
  • Outputs may be cascaded to create an extensive distribution network up to six layers deep
  • Transmits 3D content to compatible displays
  • Supports resolutions up to 4K@60Hz, 1080p@24/60Hz including 480i - 1080p and multiple PC resolutions
  • Supports Dolby Digital Plus, Dolby® Digital TrueHD, Dolby Atmos, and
DTS-HD: Master Audio
  • HDMI 2.0 compliant, HDCP 2.2 compliant, DVI 1.0 compliant

    Video/Audio Inputs/Outputs:

    • HDMI: 1/4

    What makes the 1394D Unique?

    Delivers uncompressed 4K signals at 60Hz to four displays. Cascade multiple amplifiers to create large distribution networks.


    Video Parameters
    • Video Formats: 480i/p, 576i/p, 600p, 720p, 768p, 1080i/p, 1200p, 4K
    Audio Parameters
    • Audio Processing: Lossless and uncompressed audio formats, including Dolby TrueHD, Dolby Atmos, and DTS-HD: Master Audio, LPCM 7.1 channel
    • Bandwidth: 20Hz to 20KHz
    • Multi-channel Digital: Yes
    • Shipping Weight: 13.7 oz
    • Product Dimensions: 6.1 x 3.3 x 1 inches
    • Data Rate: 18Gbps (single link)
    • DC Input Connector: 5VDC
    In the Box
    • Power supply 5V / 2A, US/EU standards, CE/FCC/UL certified
    • User manual


      Frequently Asked Questions

      Q: Is the 1394D compatible with displays that accept 4K@60 Hz?
      Yes, the 1394D provides 4K@60 Hz which is perfectly acceptible to all available UHD and 4K displays.

      Q: Is the 1394D fully HDMI and HDCP compliant?
      Yes. The 1394D has been ATC certified as HDMI compliant, and meets all requirements for HDCP certification.
