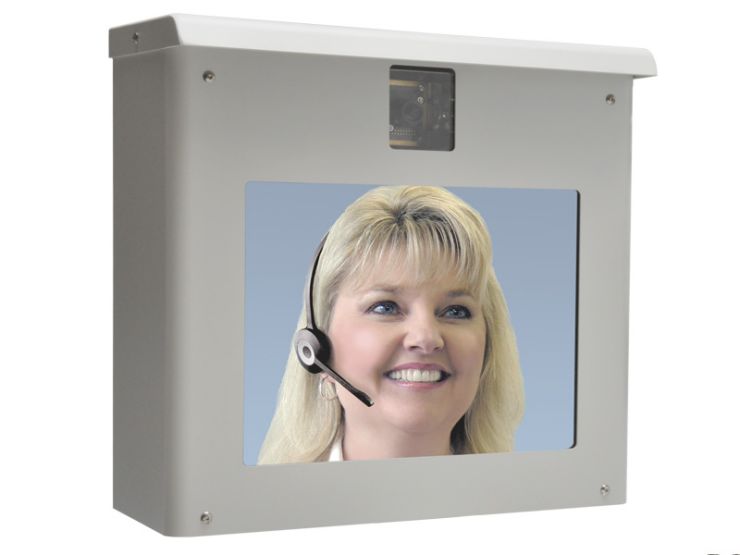

10.4" Display and camera for 2-way video		2-way Video Display for Driveup (Quartz Gray) Model 1527V - Discontinued
		An enclosed 10.4" LED LCD display with WDR camera for two-way video communication. Connects via Cat 5 to a 1520 Lane Station. Categories: Discontinued
Optional mount
Tough, powdercoated steel housing can be mounted from the side or back to any surface Optional mounting arm may be positioned at any angle (Model 1594) Inbound and outbound video signals and camera tilt control are connected to a 1520 Lane Station via Cat 5 Included tilt mechanism (804-039) is controlled by the Camera Up/Down controls on Counter Station keypads Heavy duty clear polycarbonate protects camera and 10.4" LCD display Thermostat controlled heater extends operational temperature range: -31F to 131F (-35C to 55C) 12-Volt, 5A DC power supply included Dimensions: 11.1 x 11.5 x 5.5  (H-W-D, inches) Weight: 11.55 lb. (shipping weight)

Downloads

• Literature
• Focus Sheet- More than a Friendly Face   991.67 KiB Video Messaging Application Example


• Manuals
• Series 1500 Installer Guide   1.77 MiB Series 1500 Installer's Reference Guide
• Manual  (0 B) Installation Instructions



---
