2-way Video Display and Camera for OEM Driveup

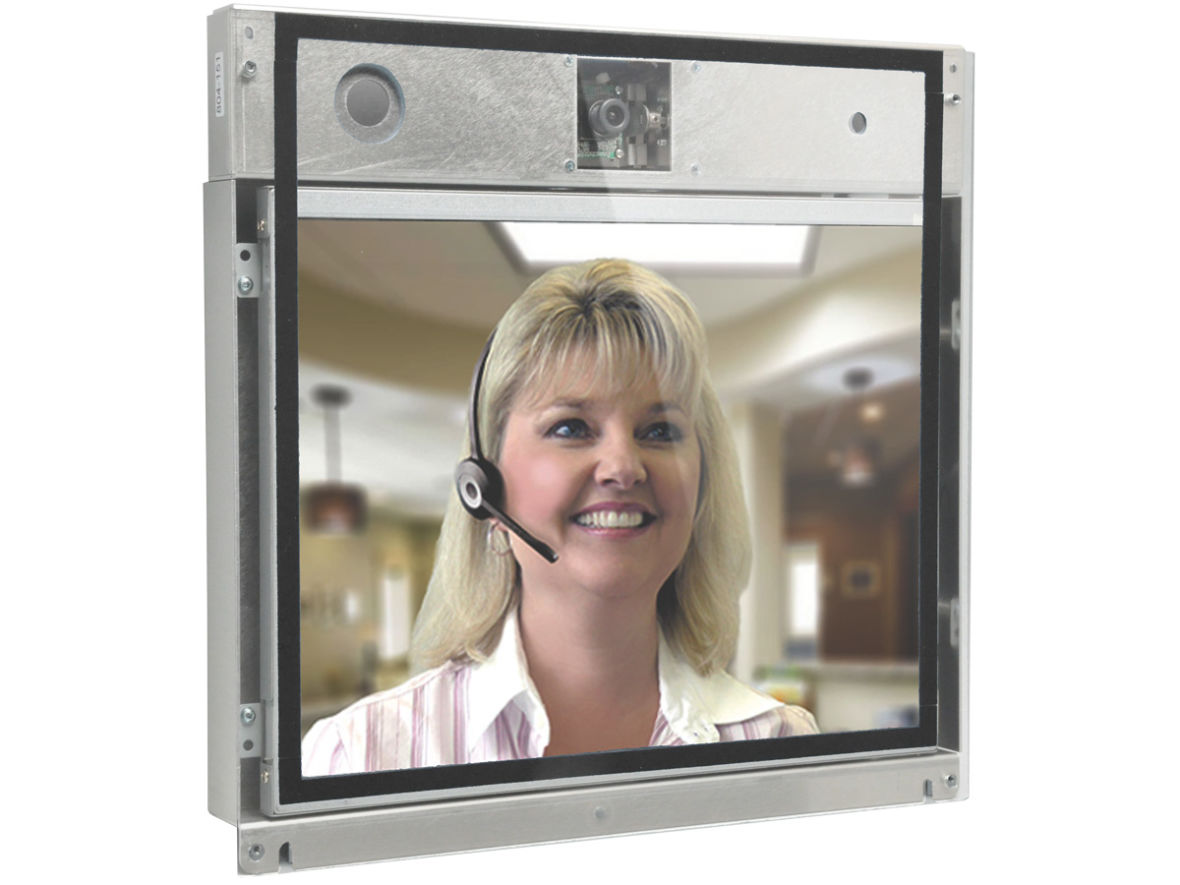

Model 1529VO - DiscontinuedSteel chassis with 15 inch display and WDR camera with tilt mechanism for two-way video communication. Connects via Cat 5 to a 1520 Lane Station.
Categories: Discontinued
- Outdoor Wide Dynamic Range camera with tilt control (804-039P)
- Camera optimized to render vivid detail in challenging outdoor lighting situations
- Bright, clear, 15 inch LCD with LED back-light uses minimal power
- Tilt mechanism is controlled by the Camera Up/Down controls on Counter Station keypads
- Convenient chassis can be mounted inside a drive-up cabinet or kiosk via 4 screws
- Heavy duty 3mm clear acrylic protects camera and LCD display
- Thermostat controlled heater* extends operational temperature range: -31F to 131F (-35C to 55C)
- 5A, 12V DC power supply included (Model 571-053 or equivalent)
- Dimensions: 14.1 x 15 x 5.5 (H-W-D, inches)
Downloads
- Drawings
- Template
115.58 KiB Cutout dimensions for 15" display and camera
- Template
- Literature
- Focus Sheet - OEM video chassis
1.13 MiB Video Display and camera chassis for OEM drive-up units. Updated February, 2018.
- Focus Sheet - OEM video chassis
