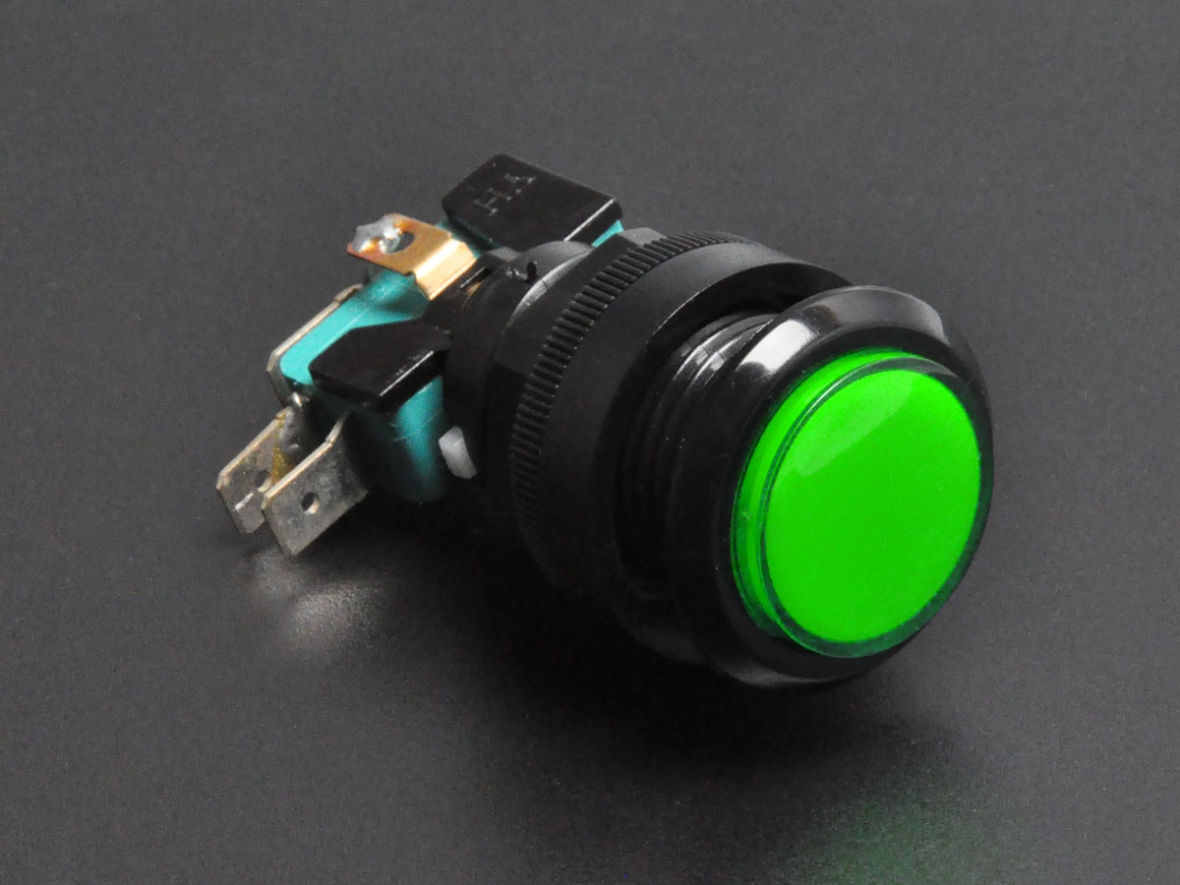

Large Plastic Green Button (No Harness)
803-064P This tough, plastic switch is ideal for attractive retail demo systems. A green LED invites customers to select products and adjust volume and music tracks.
Specifications:
Specifications:
- Hole size: 1.125 inch (29 mm)
- Maximum panel thickness: 0.75 inch (19 mm)
- Required depth: 2.5 inches behind front panel surface
- Illumination: green LED (entire button surface)
- Harness not included
Downloads
- Literature
- Product Select Button
1.34 MiB Focus Sheet.
- Product Select Button

![[Image for 803-064P]](/images/products/803-064P-front_scaled_320.jpg)

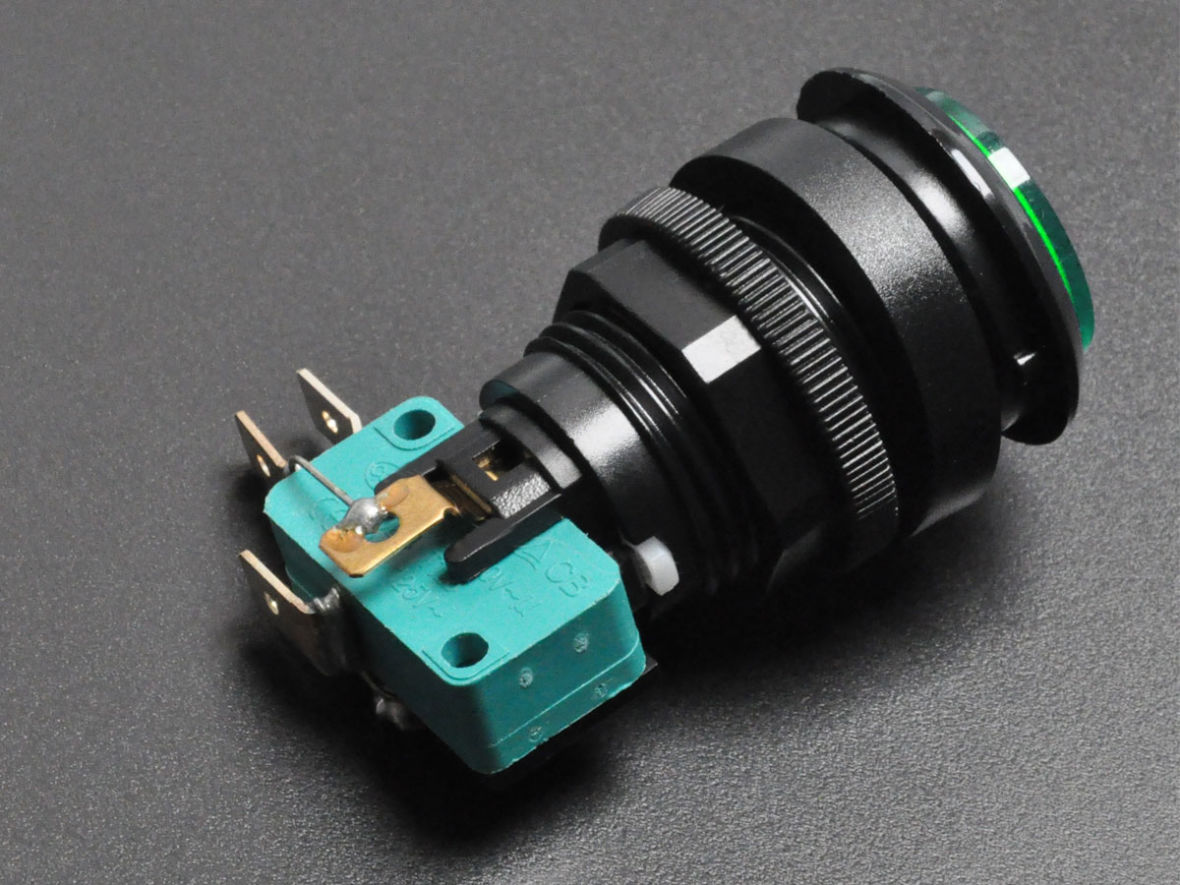

![[Rear view]](/images/products/803-064P-rear_scaled_100.jpg)

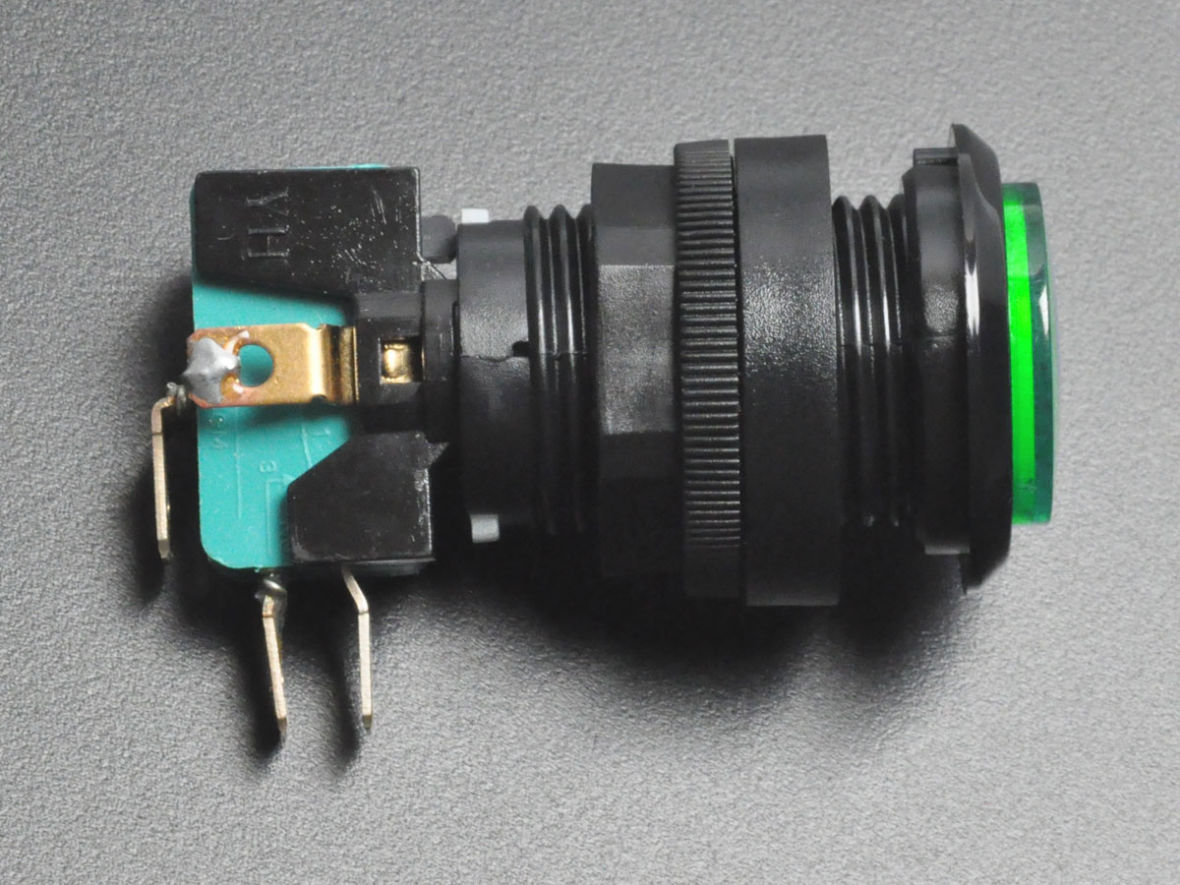

![[Top view]](/images/products/803-064P-top_scaled_100.jpg)
