[Image for MH10-HD]
MediaHub with BrightSign Built-In
MediaHub with HDMI, ARC, CEC, Dolby Atmos
Model MH10-HD - New

[]
  • Up to 10 HDMI sinks – sound bars, receivers, and TVs
  • Audio Return Channel (ARC) x10
  • Dolby Atmos sound on all 10 HDMI ports
  • Control 10 devices using CEC commands via HDMI
    • Discrete optical and analog audio outputs
    • Connect push buttons or sensors to control presentations
    • Monitor system activity and update program via network

    Categories: Media Players, Modules, Interactive Switching, Soundbars, Ascentic

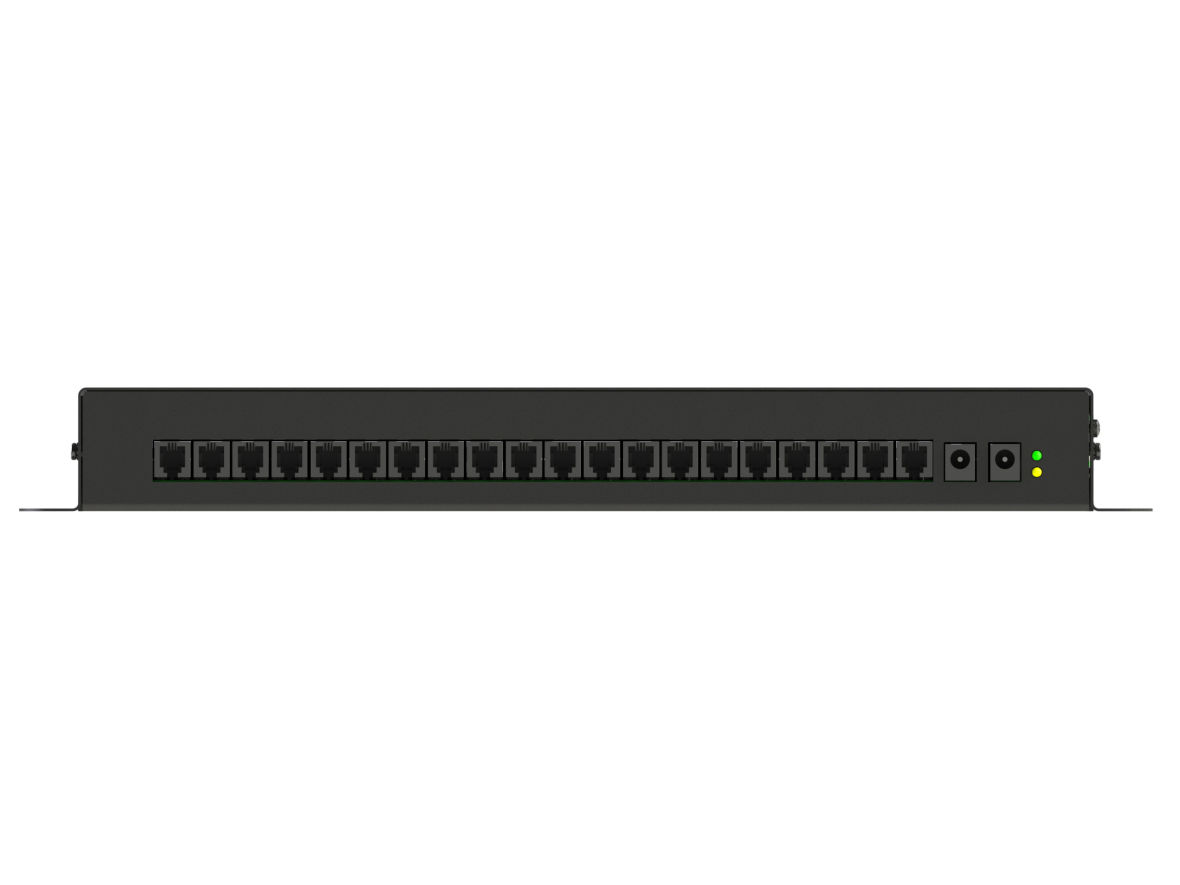

    [Front View]
    Front View
    [Top Panel]
    Top Panel
    [Left Panel]
    Left Panel
    [Bottom Panel]
    Bottom Panel
    [Right Panel]
    Right Panel
    [Example System 1]
    Example System 1
    [Example System 2]
    Example System 2


    MediaHub DA

    The Model MH10-HD adds multiple audio and video outputs to the MediaHub platform. With a BrightSign digital signage module built-in, the MH10-HD produces flawless 1080p video and Dolby Atmos audio, with all the custom capabilities made possible by BrightAuthor software. Connect up to ten HDMI sinks (televisions, soundbars, A-V receivers, etc.) to the MediaHub; each output provides identical 1080p video signal, and individual CEC control of the sink.

    The Model MH10-HD is ideal for coordinating an HDMI audio and video experience, with multiple user interface options, and multiple ways to interface directly with AVRs, TVs, and sound bars via Ethernet, RS-232, or CEC communication. To keep presentations fresh in the field, update media content and BrightAuthor programming via Ethernet.


    BrightSign-Builtin
    • Audio-video player and switch with integral BrightSign® digital signage module
    • Outputs embedded audio formats including Dolby Atmos*
    • Video output: 1920x1080 @ 60fps and up to 5.1 channel audio (HDMI x10)
    • Individual CEC control on each HDMI port
    • Audio Return Channel (ARC)
    • Discrete digital audio output (Toslink)
    • Discrete analog audio output (3.5mm)
    • 20 ports for controls such as push-buttons or sensors (RJ9, x20)
    • Control ports for switch modules, amplifiers, touch panels, or volume knob (RJ45, x3)
    • USB port for touch screen or other device (USB-A)
    • Ethernet port for remote monitoring and program updates

    * Other multichannel audio formats may work as pass-through, but they are not officially supported


    Example:

    Five Sound Bars and Five TVs

    Five HDTVs in full HD resolution, and five soundbars in multi-channel surround sound showcase the capacity of this MediaHub. This configuration uses the ten HDMI ports to deliver audio and video signals and switching commands via the CEC channel. When a push-button is pressed, the MH10-HD is programmed to send the specific CEC command to mute or play the sound at that position. CEC commands must be programmed for each specific model of TV or soundbar. The Ethernet port interfaces with the network to receive commands and send analytics with the added capability to control and monitor the system remotely. Update the firmware and load content via the dual microSD ports.


    MH10-HD Specifications

    • Audio Formats: Dolby Atmos, MP3 (mono or stereo) @ 44.4kHz or 48kHz, WAV (mono or stereo) @ 96kHz, 48kHz, or 44.1kHz
    • Video Formats: MP4 and MOV (without metadata) with AAC or AC3 audio (pass-thru)
    • Video Codecs: H.265, H.264 (MPEG-4, Part 10), MPEG-2, MPEG-1
    • Dimensions (HxWxD, inches):  13.7 x 6.2 x 1.5
    • Communication: USB-A, RS-485 control ports (x2), RS-232 port (Baud rate is software selected), Ethernet
    • SD or SDHC media card
    • Power Supply: 12V DC, 5A
