Stainless Blue Button (4-wire, Harness with Disconnect)
PSB-224Audio Authority's stainless steel round buttons with blue illumination provide an attractive, simple interface for demonstration systems. 4-wire button are compatible with new generation Access, 1700 series, and other Audio Authority demo systems.
Categories
This 4-wire, stainless steel, momentary switch is ideal for attractive retail demo systems. A blue LED illuminated ring invites customers to select products and adjust volume and music tracks. Attaches to new Audio Authority switching systems with a 4-pin extension cable, sold separately in several standard lengths.
Specifications:
Specifications:
- Hole size: 0.75 inch (19 mm)
- Outer diameter: 0.9 inch (22.5 mm)
- Maximum panel thickness: 0.5 inch (12.5 mm)
- Required depth: 2 inches behind front panel surface
- illumination: blue LED (ring)
- Molex quick connect for extension cables

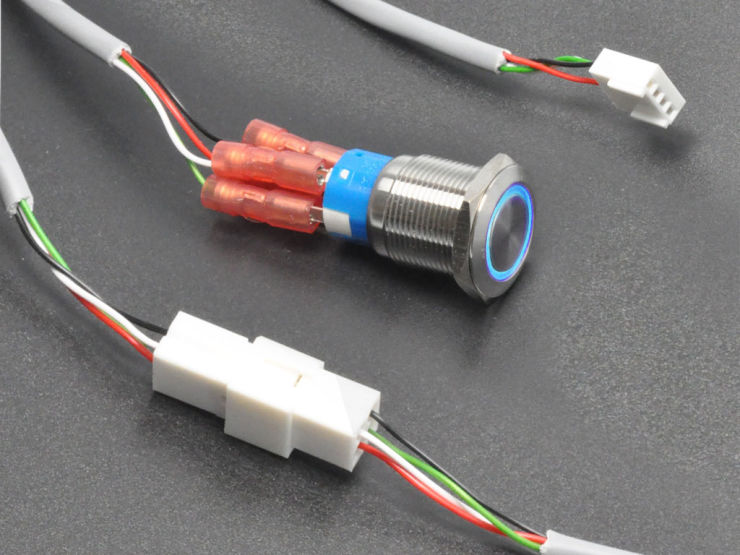

![[Image for PSB-224]](/images/products/ss-blue-disc4_scaled_320.jpg)

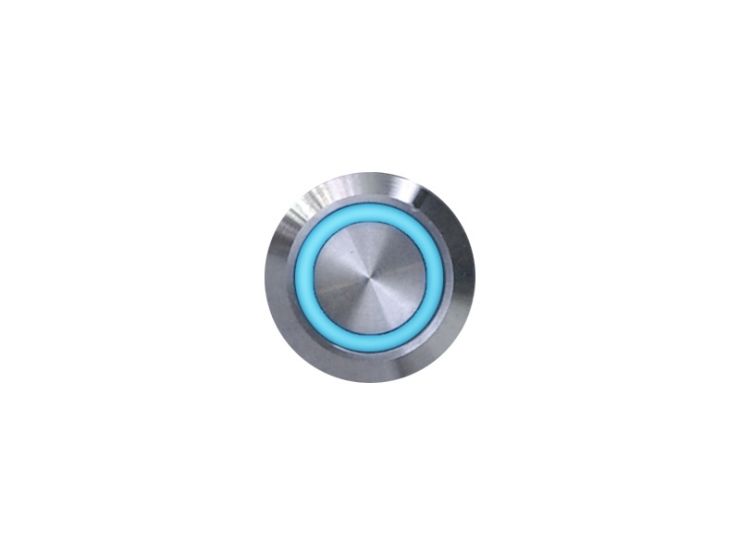

![[Front view]](/images/products/PSB-224-front_scaled_100.jpg)

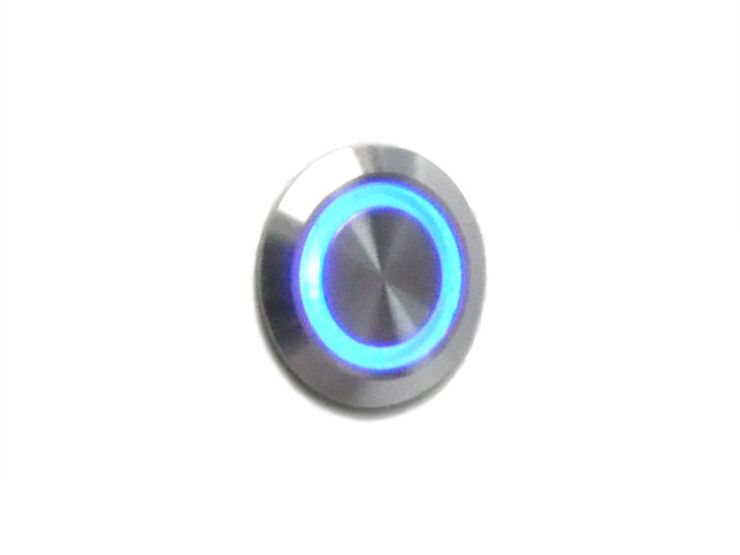

![[Angle view]](/images/products/PSB-224-angle_scaled_100.jpg)
