Four button touch panel with LEDs
Four-Position TouchSelect Panel
Model TS04- Four positions
- Daisy chain via RS-485
- Ideal under any graphic overlay
- Blue LEDs
- Dimensions: 1 x 5 x 1
Categories: Interactive Switching, User Interfaces

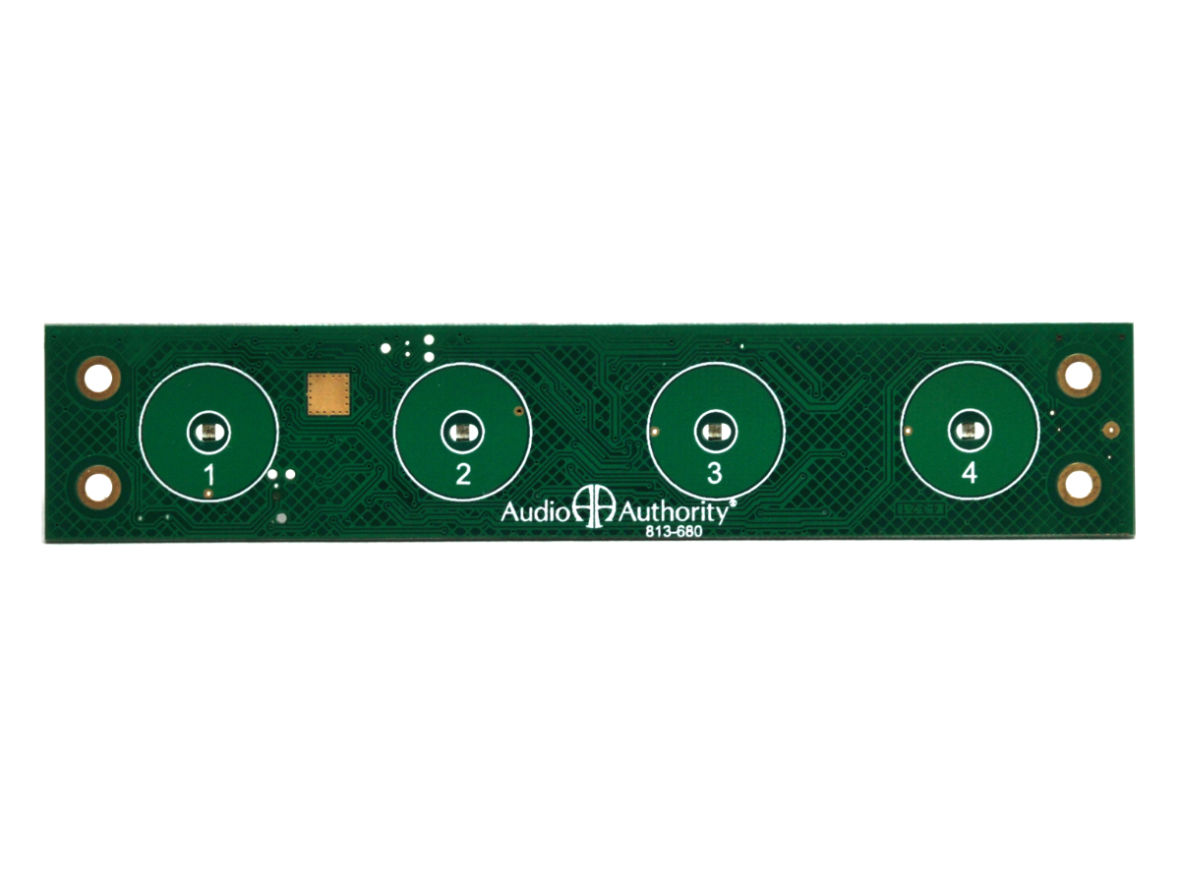

![[Front view]](/images/products/TS04_front_scaled_100.jpg)

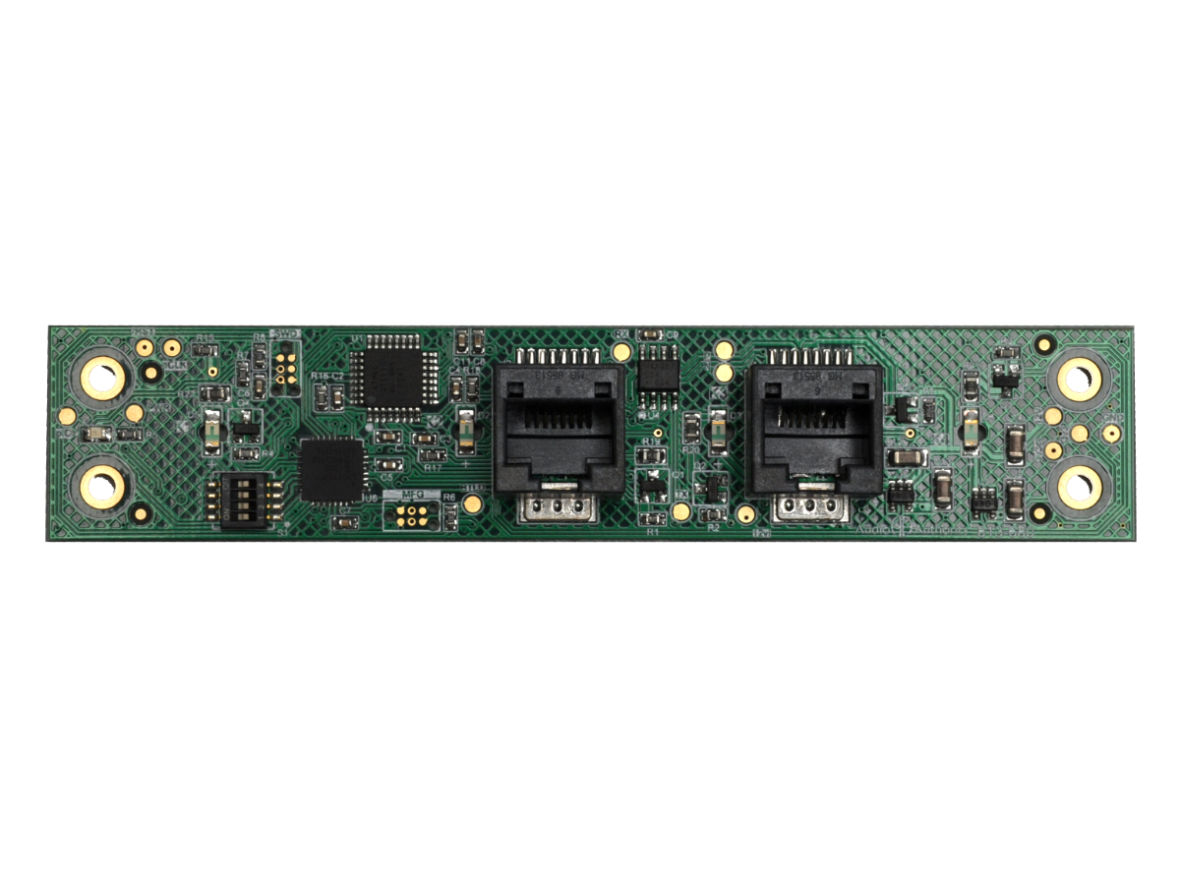

Front view![[Rear view]](/images/products/TS04_rear_scaled_100.jpg)
Rear view![[Back angle]](/images/products/TS04_angle_scaled_100.jpg)

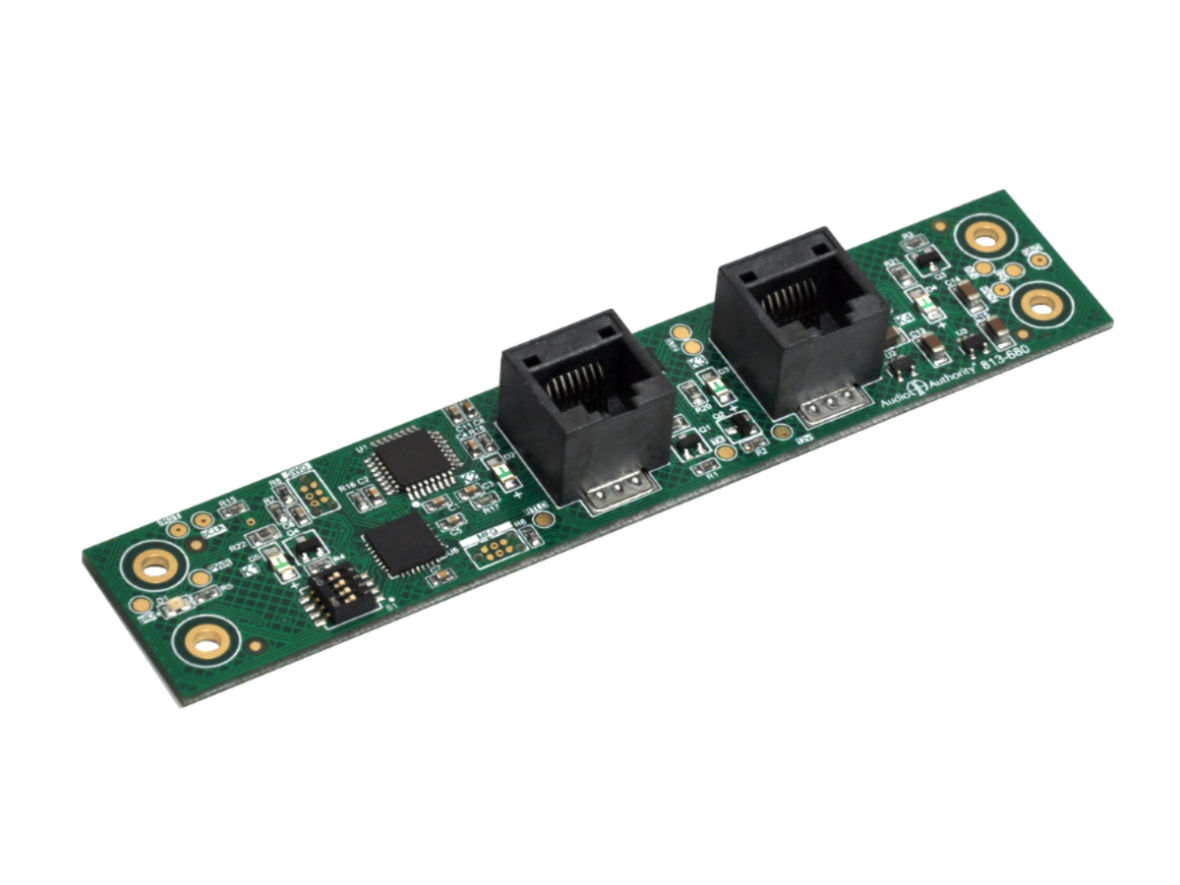

Back angle
![[Front view]](/images/products/TS04_front_scaled_1180.jpg)
![[Rear view]](/images/products/TS04_rear_scaled_1180.jpg)
![[Back angle]](/images/products/TS04_angle_scaled_1180.jpg)
Features
Example display for soundbars with TS04 TouchSelect panels. Each soundbar has touch positions for play and volume controls. For information about lighting synchronization, see Model 1800 product details.
- Four positions - use only the ones you need
- Daisy chain via RS-485 - see also TS04-USB
- Use any non-conductive material for graphic overlay
- Bright blue LEDs shine through many overlay materials
- Touch positions can be programmed
- Custom touch array available on request
- Circuit board dimensions (HxWxD, inches): 1 x 5 x 1
Touch Sensitive Control
Our TouchSelect™ series panels present an elegant interface that adapts well to any display or retail interior. Each thin panel mounts behind a custom overlay designed for your fixture. Standard arrays include four, nine, and 22 positions, with custom layouts available for quote. Multiple TouchSelect panels may be used in the same system, and you can use the system to play dedicated video tracks on a BrightSign® media player, or to activate audio demonstrations in coordination with our Model 1703 audio player.
Example shelf edge application using three positions
for play, volume up and volume down.
BrightSign® Authorized Partner
Example display for soundbars with TS04 TouchSelect panels. Each soundbar has touch positions for play and volume controls. For information about lighting synchronization, see Model 1800 product details.
