 1500 Intercom Training




[Image for 1580S]
1:1 or 1:2 Audio Intercom System
1:2 Intercom System - Audio Only
Model 1580S - Discontinued

[]

The 1580S has been replaced by the combination of 1500B and the new 1522B dual lane station.


Categories: Intercom, Counter Station


[Touch keypad]
Touch keypad
[Dual Lane Sation]
Dual Lane Sation

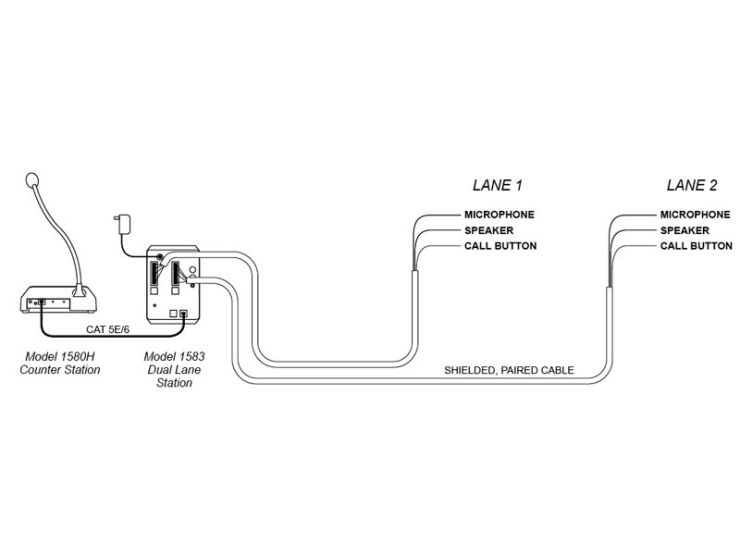

[System wiring]
System wiring

Overview

Kit 1580S includes a 1580 Counter Station plus a 1583 Dual Lane Station. Designed to minimize cost for simple 1-on-1 or 1-on-2 drive-up applications, it incorporates the great features and sound quality of our versatile 1500 Series in a less expensive design. The 1580 Counter Stations connect directly to a special 1583 Dual Lane Station via Cat 5e/6 for easy installation.

The 1580 Series shares most of its functions with the 1500 Series Intercoms, so no new operator training is required. However, its wiring is unique, so it cannot be mixed with 1500 Series Counter Stations, Lane Stations, or Hubs.


Easy 1580S Equivalent

** Important: the 1522B IS NOT compatible with the 1580 system. Do not connect them! **

To form a complete 1-on-2 audio system you will need the following Audio Authority products:

  • 1522B
  • 1500B or 1500A
  • 2 Speakers
  • 2 Microphones


Optional devices

  • push-button switches
  • traffic sensors (1547B)
  • privacy handset for counter station 1503B or 1503BW
  • armored privacy handset for lane station 1540


To complete the system you must also provide:

  • Category cable from counter station to lane station (we recommend Cat 6 shielded)
  • Shielded, paired cable with three to six twisted pairs of conductors from lane station to the lane devices in each lane cabinet


Recommended AWG for power supply leads

Maximum DistanceGauge
40 ft18 GA
60 ft16 GA
100 ft14 GA



FAQ

Q: Can I add video to the 1522B system?
A: The 1522B does not have any capacity for video. You must replace the 1522B with 1520B lane stations, and replace the wiring to the lanes with Cat 6.

Q: Can I connect the 1522 to a 1580 counter station?
A: No, do not connect any 1580 component to a 1500 series component. Damage will result.

Q: Can I use the same wiring for the lane stations that was used in a previous 1580 installation?
A: Yes, the same wiring to lane devices (speaker, mic, call button, etc.) may be used. Do notconnect a 1580 counter station or lane station to a 1500 counter station or lane station.

Features

  • Excellent two-way audio performance
  • Intuitive lane selection with volume up/down controls
  • Durable, easy to clean, touch-sensitive keypad – no moving parts
  • Privacy feature bypasses mic & speaker when headset or handset is in use
  • Small footprint



Easy 1580S Equivalent

** Important: the 1522B IS NOT compatible with the 1580 system. Do not connect them! **

To form a complete 1-on-2 audio system you will need the following Audio Authority products:

  • 1522B
  • 1500B or 1500A
  • 2 Speakers
  • 2 Microphones


Optional devices

  • push-button switches
  • traffic sensors
  • privacy handset for counter station 1503B or 1503BW
  • armored privacy handset for lane station 1540


To complete the system you must also provide:

  • Category cable from counter station to lane station (we recommend Cat 6 shielded)
  • Shielded, paired cable with three to six twisted pairs of conductors from lane station to the lane devices in each lane cabinet


Recommended AWG For Power Supply Leads

Maximum DistanceGauge
40 ft18
60 ft16
100 ft14



FAQ

Q: How can I add video to this system?
A: The 1522B does not have any capacity for video, but the 1500B counter station may be used with video. You must replace the 1522B with 1520B lane stations, and replace the wiring to the lanes with Cat 6.

Q: Can I connect the 1522 to a 1580 counter station?
A: No, do not connect any 1580 component to a 1500 series component. Damage will result.

Q: Can I use the same wiring for the lane stations that was used in a previous 1580 installation?
A: Yes, the same wiring to lane devices (speaker, mic, call button, etc.) may be used. Do notconnect a 1580 counter station or lane station to a 1500 counter station or lane station.


Specifications

Audio Parameters
  • Volume Control Range: 16 dB (Five 3.2 dB steps)
  • Lane Speaker Gain Range: 20 dB
  • Aux Audio Gain Range: 30 dB
  • Maximum Speaker SPL: 90 dB (1 meter, with 4 Ohm speaker such as Model 631-030)
  • Amplifier Output Power: 4 watts @ 7% THD, into 4 Ohm load
In the Box
    • Model 1580 Counter Station
    • Model 1583 Dual Lane Station
    • User manual
    • Power Supplies (2) Model 571-013 or equivalent
Video Parameters
  • Video is not supported for 1580 Series - see 1500
Miscellaneous
  • Input Power Requirement: 12 volts DC at 1 amp
  • Footprint Dimensions: 7 x 7.25 inches
  • Product Weight: TBA
  • Shipping Weight: TBA
  • Agency Approvals: FCC
  • Cable type: shielded, paired cable with three to six twisted pairs of conductors (depending on configuration)

Downloads




Frequently Asked Questions

Q: Can 1580 series products be used with existing 1500 series intercom systems?
A:
No, 1580 series components use a unique wiring infrastructure and can only be used with other 1580 series products.

Q: What types of cable does Audio Authority recommend for use in 1580 series installations?  How far can I reliably run my particular type of cable?
A:
Consult this chart of recommended cables and maximum distances:
