Interactive HD Player
Audio Authority’s 1704 Media Demo player is ideal for interactive displays in retail settings to demonstrate products such as TVs, projectors, soundbars, headphones, speakers, and A-V recievers. It provides HD video content that responds to external commands, so you can coordinate selling messages with each product's demonstration. The interfaces provide simple ways to start media for a demo, and adjust the volume. The 1704 plays many video and audio formats on SD or SDHC cards (see limitations below). Other interface options include push-buttons for transport controls, depending on the type of interface desired.
Key Features
- HDMI audio-video output (1080p)
- Composite video output (480i)
- Digital and analog audio output (2-channel)
- Multiple video and audio file formats
- RS-232, push-buttons, and IR
- Autoplay at power-up (files in root directory)
- Small footprint, 4” x 6” x 1.5” including flanges
Digital Signage
Deliver your multi-media selling message with HD video using the 1704 player. This device has many capabilities that go beyond demonstrating audio and video products. Install a motion sensor to trigger a video track for passing shoppers. Install buttons to play infomercials for any type of product on display. The 1704 can be customized in certain ways, so ask us about special functions.
Specifications
HDMI high definition output
- Simultaneous HD and standard definition (Composite Video) output
Digital audio including PCM 2-channel audio with volume control
Analog 2-channel audio output with volume control
Video formats include MP4, MKV, TS, MOV
Audio formats include MP3, FLAC, AAC, WAV, ADPCM, OGG, RA-lossless, SRS
Accepts SD cards up to 4GB, accepts SDHC cards up to 32GB, does not accept SDXC cards
- Player control via RS-232 serial commands, up to four (native) push-buttons, multiple outboard buttons, IR commands, or GPIO
- Auto play at power-up prevents blank screen after power loss
- Playlists - assign a push-button or command to start a playlist of images, audio and/or video clips
Downloads
- Literature
- 1704 Focus Sheet
565.08 KiB Model 1704 Demonstration Media Player
- 1704 Focus Sheet
- Manuals
- 1704 Manual
1.04 MiB Model 1704 Demonstration Video Player Instruction Manual.
- 1704 Manual

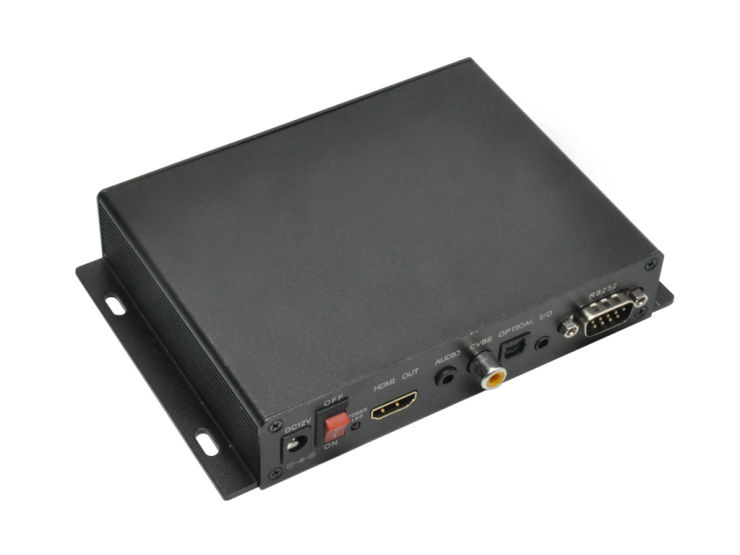

![[Image for 1704]](/images/products/1704_angle1_scaled_320.jpg)

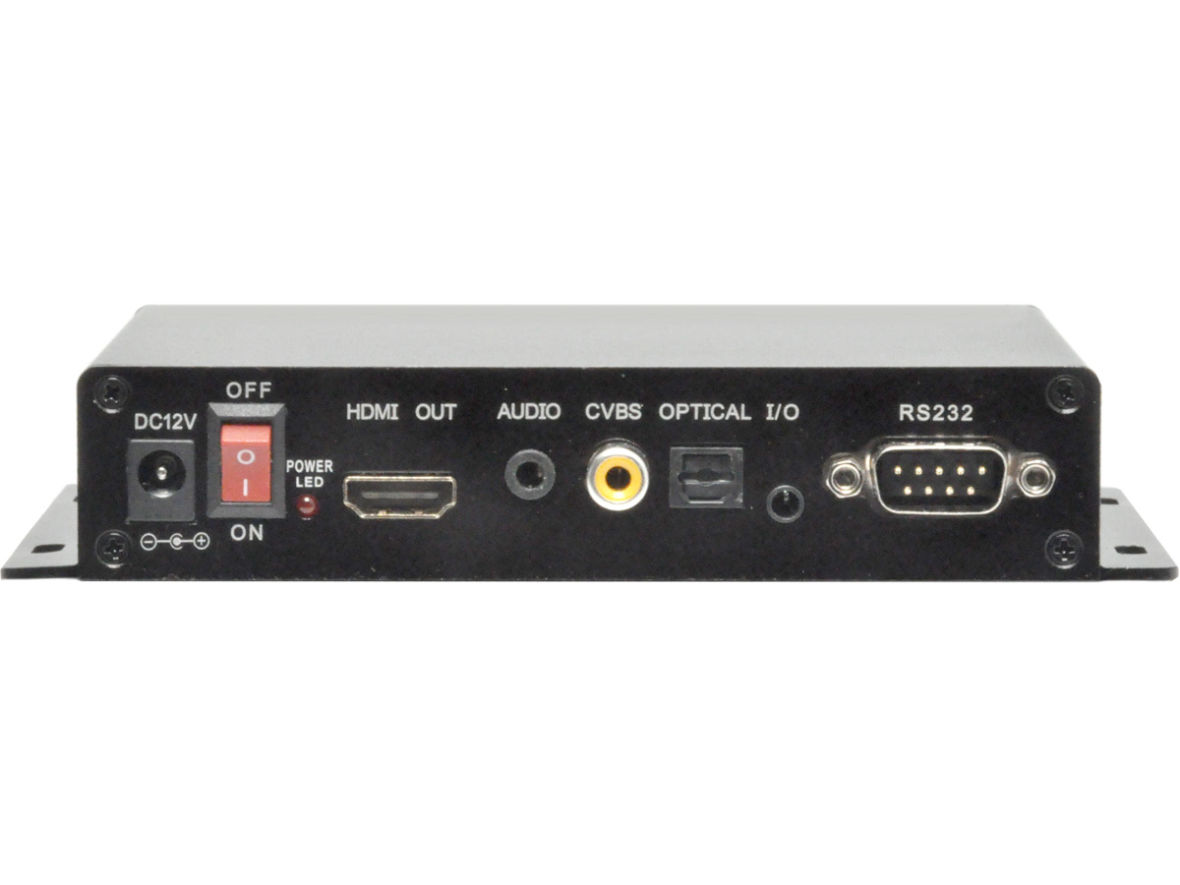

![[Angle view ]](/images/products/1704_scaled_100.jpg)

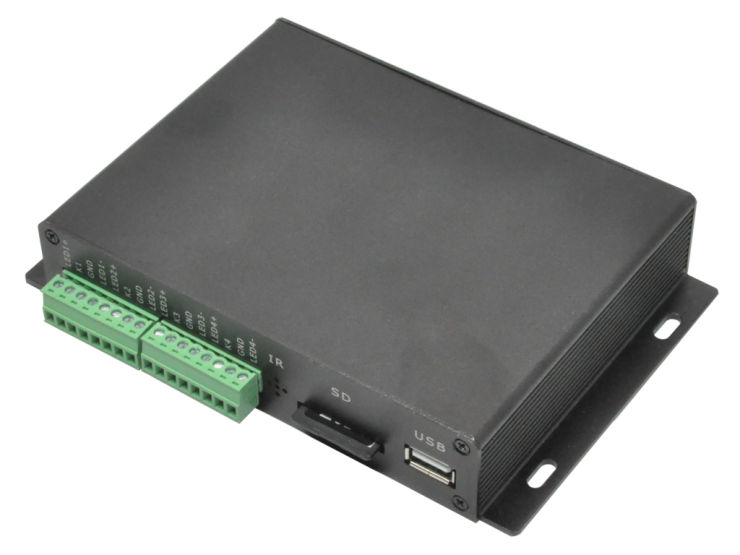

![[Top view]](/images/products/1704_angle_rear_scaled_100.jpg)

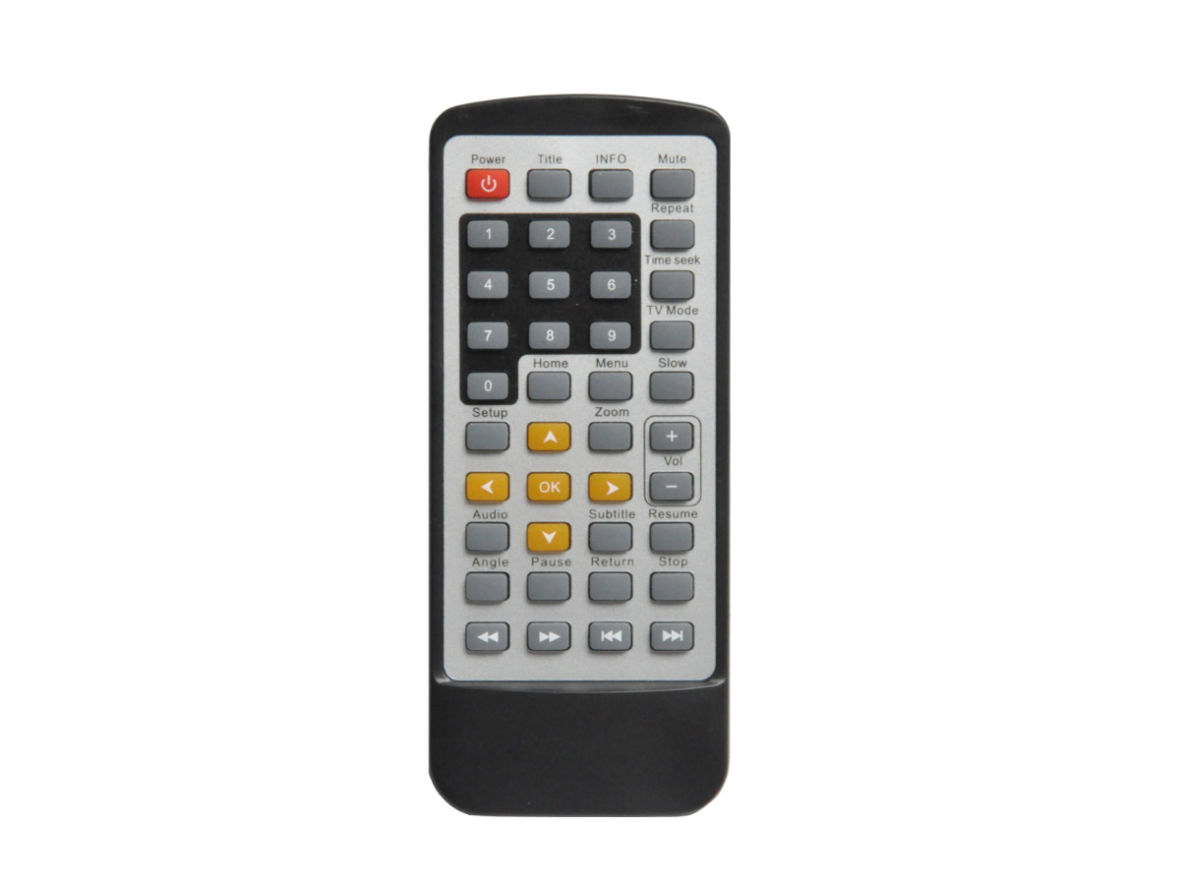

![[Remote control]](/images/products/1704_remote_scaled_100.jpg)
